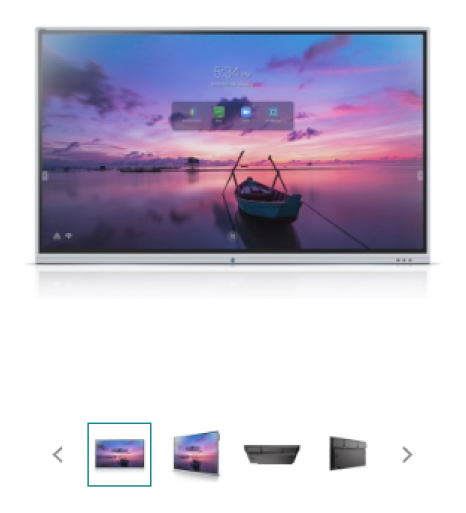

Interactive panel Vivitek NovoTouch EK753i
NovoTouch EK753i is a 65-inch interactive panel for collaboration. For corporate and educational users. The NovoTouch Vivitek EK753i is an all-in-one touch panel that combines 4K-UHD resolution, wireless collaboration, video conferencing, digital whiteboarding and digital signage features. With built-in NovoConnect, meeting participants can extend wireless connectivity from their laptop screen to a flat panel for information sharing and collaboration. NovoTouch is ready for the ever-popular practice of BYOD. Additionally, the Vivitek EK753i offers video conferencing capabilities, including pre-installed Zoom, Teams or Skype for Business. Between meetings, the touchpad can be switched to Digital Signage mode to transform your waiting screen into a digital bulletin board.
- Diagonal 75"
- Type/Technology D-LED backlit (IPS-ADS)
- Native 4K Ultra-HD resolution (3840 x 2160)
- Aspect ratio 16:9
- Viewing Angle (H/V) 178° / 178°
- Brightness 500 cd/m2
- Contrast ratio 4,000:1
- Refresh rate (Hz) 60Hz
- Estimated life time (typ.) 30,000 hours
- Display color (bits) 1.07 billion
- Installation orientation Landscape
- Daily work (hours/days) 16/7
- Sensor
- Infrared touch technology
- Touch points Abstract - 10 points
- Finger touch - 20 points
- Touch area resolution 32.768 x 32.768
- Surface protection 4mm thick tempered glass (Mohs level 7H)
- Touch tools Finger, Stylus, Glove, Opaque objects
- Operating system
- Android™ system version v8.0
- CPU Multi-core high-performance ARM® processor
- GPU 4*Mali™ G51
- RAM 3 GB DDR3
- Internal Memory 16GB (eMMC Flash) (About 9GB available for users)
- Inputs
- Display HDMI v2.0 (x3), VGA input (x1)
- Audio Audio in (3.5mm) (x1)
- Exits
- Display HDMI-out v2.0 (x1)
- Audio Audio out (3.5mm) (x1), SPDIF out (x1)
- Internet LAN (RJ45) (x1)
- RS232-In control (x1)
- Wireless connection
- WiFi (USB module) IEEE 802.11 a/b/g/n/ac (2.4GHz/5GHz)
- Receiver I/R Front (x1) (angle ± 25°, distance > 8 m)
- USB
- Front USB 2.0 (2 pcs.)
- Side USB3.0 (x3), USB Type B (x2) (for touch port)
- USB 2.0 bottom (1 piece)
- Default apps
- Wireless collaboration
- Screen mirroring (NovoConnect),
- Screen mirroring over a corporate network (NT LiveScreen / NT LiveReceiver),
- White board (Note),
- Login protection (Screen lock),
- Screen recording (NT minutes),
- Video conferencing,
- Built-in over 50 apps (NT Store App)
- Digital Signage Digital signage (NovoDS)
- Expansion
- Windows (OPS) Intel Standard 80 Pin OPS
- Audio
- Speakers 16W x 2 (Stereo)
