Video colposcope Kernel KN-2200

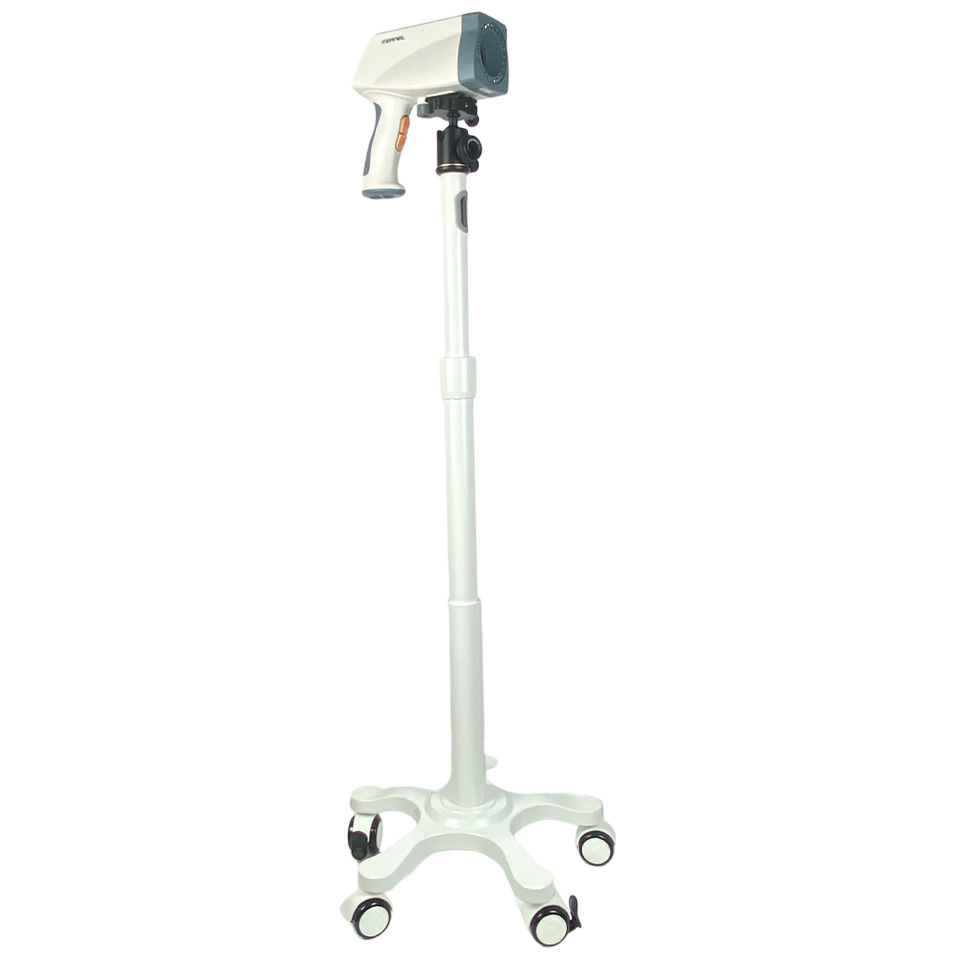

Video colposcope Kernel KN-2200 Colposcope Kernel KN-2200 is a classic colposcope equipped with a color video camera. It is mounted on a floor-mounted straight tripod on a five-beam wheel base, which allows you to quickly adjust the optical head of the colposcope in height. Equipment Video colposcopy system KN-2200 with a camera with a built-in light source and display. Stand for KN-2200. Wired remote control. Video cable. Foot pedal. Software on a USB flash drive and the software key on a separate flash drive. Video capture card for connecting to a computer. Power adapter, USB 3.0 cable. User's Guide. CCD video camera with 1/4″ matrix diagonal. The examined area is illuminated using high-power white LED illuminators (light temperature of the light source: 5000~6500 K), the brightness of which is adjusted for a comfortable examination. They create optimal lighting with virtually no shadows. In addition, the LEDs do not heat up during operation and do not create additional discomfort for the patient. The KN-2200 video colposcope has a wired control panel and a wired foot pedal. Photos can be taken with just one press of the foot pedal. To connect the video colposcopy system to a personal computer, you will need a video capture card (included in the kit). The software is completely Russified. It allows you to save study data, print the resulting images, create and maintain a patient database. The colposcope comes with a key on a flash drive, without which the user will not have access to patient data. Computer requirements To operate the video colposcope, you need a desktop computer or laptop. Minimum system requirements: Processor: 2-core, frequency at least 2.4 MHz; RAM: at least 4 GB; Hard drive: at least 100 GB; Availability of a free USB 3.0 connector; Operating system: WINDOWS 7 and newer. Advantages of Kernel KN-2200 Software in Russian: displaying images on a PC monitor, creating and editing reports, maintaining a patient database. Library of 170 images with a description of the pathology. Powerful LED illuminator. A mobile, small-sized tripod on a five-arm wheel base is easy to move. It does not take up much space, which is important in a small gynecological office area. Photos are taken by simply pressing the foot pedal. This does not distract the doctor from the examination. The green filter insertion mechanism allows you to engage the filter without leaving the eyepieces. Application of Kernel KN-2200 Kernel KN-2200 is intended for diagnosis and research of diseases of the vagina, cervix, lower third of the cervical canal, external genitalia (cervical erosion, ectopia (pseudo-erosion), leukoplakia, papilomatosis and other pathological processes, including precancerous conditions and early stages of cancer). Manba: https://www.nv-lab.ru/catalog_info.php?ID=9794
- Parameter: Kernel KN-2200
- Analog camera: CCD
- Die size: ¼ inch
- Maximum magnification: 216x
- Field of view: at 3x magnification: ≥ Ø 100 mm at 18x magnification: ≥ Ø 5 mm
- Depth of field of view: at 6x magnification: ≥120 mm at 18x magnification: ≥5 mm
- Focus mode: automatic, manual
- Focal length: 350 – 400 mm
- Illumination: When working distance 30cm ≥1200 lux (illuminance can be adjusted)
- Resolution: Horizontal resolution ≥600TVL Secondary display resolution 320×240 pixels
- Light source: 1. The brightness of the light source can be adjusted. 2. Illumination uniformity should not exceed ± 2% 3. At a working distance of 30 cm, the spot diameter is ≥ Ø 60 mm 4. Light temperature of the light source: 5000~6500 K
- Internal filters: Green
- Overall dimensions of a straight tripod (without base) (Length x Larger diameter / Smaller diameter): 72 × 4.5 / 3.4 cm
- Straight tripod weight (without base): 1.6 kg
- Weight of straight tripod (with base): 4.02 kg
- Vertical bracket height adjustment range: 72-93 cm
- Overall dimensions of the bracket base (L x W): 41×9.5 cm
- Bracket base weight (without wheels): 1.66 kg
- Wheel diameter: 4.7 cm
- Wheel weight: 0.1 kg
