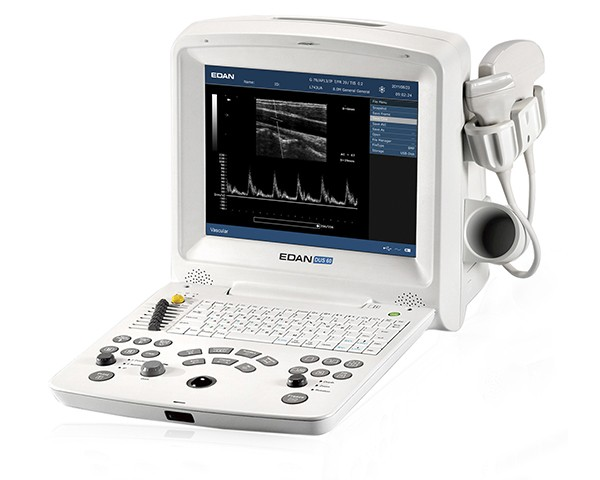

Ultrasound scanner DUS 60
Ultrasound scanner DUS 60 The DUS 60 is a lightweight, miniature black and white ultrasonic device manufactured by Edan Instruments Inc. (China), with advanced ultrasound diagnostic capabilities. Ideal option for trips! Weighs only 7 kg! The ultrasound scanner provides the highest image quality and can be used for both screening and highly specialized studies. The presence of pulsed wave Doppler (PulsedWave or PW) allows for advanced obstetric examinations, vascular studies and the use of the device in echocardiography. The large 12.1-inch LCD monitor of this portable ultrasound scanner transmits ultrasound images with virtually no loss of quality; a wide viewing angle allows you to comfortably observe the clinical picture from any point. The ability to operate on a high-capacity lithium-ion battery provides additional convenience when using this modern scanner. The design of the DUS 60 ultrasound scanner uses modern digital technologies: TSI, THI, DBF, DRF, RDA, DUF, which allow you to obtain high-quality images when conducting ultrasound examinations in the areas of: · abdominal examinations (abdominal cavity); · gynecology; · obstetrics; · urology; · thyroid gland; · mammary gland; · joints; · vessels; · cardiology; · echocardiography; · small organs; · veterinary medicine; · pediatrics; · neonatology; · neurosonography; · invasive procedures; · surgery; · superficially located organs. Distinctive features of the scanner: · Digital beamforming; · Pulse-wave Doppler (PW); · 12.1-inch monitor; · Work both from the mains and from a lithium-ion battery; · Backlit keyboard; · Possibility of simultaneous connection of two sensors; · Two USB connectors; · Two ports for connecting sensors; · 8 – segment TGC adjustment (layer-by-layer signal amplification); · Memory for 115 ultrasonic frames; · Possibility of archiving images on a PC; · Ability to save and transfer images to a removable flash drive; · Possibility of printing images both on video printers and laser printers; · Cinema loop for 256 frames; · Russified menu; · Large selection of high-resolution multi-frequency sensors (96/128 elements); · Excellent image quality thanks to the use of modern digital technologies; · Packages of calculation and measurement programs with the formation of a protocol in the areas: abdominal studies, obstetrics, gynecology, urology, cardiology, small organs, orthopedics, vessels, PW mode. Standard delivery set: · Ultrasound scanner DUS 60 (LCD monitor 12.1 inches); · Electronic convex sensor: C363 UA (2.0/3.0/4.0/5.0/6.0 MHz); · Two ports for connecting sensors; · Bracket for sensor cable; · Power cord (European standard); · Grounding cable; · Two sensor holders; · Flash drive 2 Gb; · 2 fuses 5 x 20, T1.6AL/250 V; · Bottle of contact gel for ultrasound (250 ml); · Operating manual in Russian. DUS 60 specification · Model DUS 60 Monitor 12.1" high resolution LCD monitor Availability of Doppler Pulse-wave Doppler (PW) Connectors for connecting sensors Possibility of connecting two sensors simultaneously Scan Modes B, B + B, 4B, B + M, M ,PW Grayscale 256 levels TGC adjustment 8 segment Sensor frequencies from 2.0 MHz to 10.0 MHz Number of elements in sensors from 96 to 128 (depending on sensor type) Scan depth from 20 to 246 mm (depending on sensor type) Scan angle From 20 to 128 degrees (depending on sensor type) Magnifying the image x1.0, x1.2, x1.4, x1.6, x2.0, x2.4, x3.0, x4.0 (real time) Saving images JPEG: 1000 frames; BMP: 128 frames; CIN: 128 frames Cinema loop For 256 frames Memory 56MB Moving Depth B, B+B, 4B, B+M, real-time M modes, 10mm increments Frame correlation coefficient 8 levels of adjustment (0~7) Image Conversion Rotate Down/Up, Rotate Left/Right Changing the language Russian, English, French, German, etc. Acoustic power 16 levels of adjustment (0~15) Dynamic range 30dB~90dB (4dB increments) Focus position 16 adjustable levels Focus number Maximum 4 Software packages Abdominal cavity, obstetrics, small organs, gynecology, orthopedics, cardiology, urology, blood vessels, PW B-mode measurements Distance, circumference, area, volume, ratio, % stenosis and angle M-mode measurements Distance, time, incline, heart rate PW measurements time, heartbeat, speed, acceleration, trail and resistance index. Notes Patient name, age, gender, time, date, clinic name, doctor name, comment (full screen character editing) Pictograms > 80 types 2 USB ports USB 2.0 Printing images Possibility of using both video printers and laser printers for printing images. DICOM 3.0 Optional Ultrasound-guided biopsy Biopsy attachments are available for all types of sensors (optional) Battery Lithium-ion battery 6400 mAh, 14.8 V (optional) Foot pedal Optional Dimensions mm 330(W)x320(D)x220(H) Weight, kg 7.1 Sensors for ultrasound scanner DUS 60 and their areas of application. Standard: C363UA Convex (R60 2.0/3.0/4.0/5.0/6.0 MHz) Abdomen, gynecology, fetal examination / obstetrics and pediatrics; Optional sensors: C362UA Convex (R60 2.0/3.0/4.0/5.0/6.0 MHz) Abdomen, gynecology, fetal examination / obstetrics and pediatrics; C343UA Convex (R40 2.5/3.5/5.0 MHz) Abdomen, gynecology, fetal examination / obstetrics and pediatrics; C321UA Microconvex (R20 2.0/3.0/4.0/5.0/6.0MHz) Abdomen, gynecology, fetal examination/obstetrics, pediatrics and cardiology; C613UA Microconvex (R10 4.5/5.5/6.5/7.5/8.5 MHz) Abdomen, Gynecology, Fetal Examination/Obstetrics, Pediatrics and Cardiology E613 (5.0/6.0/7.0/8.0MHz) (Transvaginal/Transrectal): Gynecology, Intrauterine Examination/Obstetrics and Urology; E743UA (6.0/7.0/8.0/9.0/10.0 MHz) (Transrectal): rectum and surrounding internal organs, uterus, ovaries and prostate; L743 UA(6.0/7.0/8.0/9.0/10.0 MHz) Small organs (breast, thyroid, prostate), skull of newborns, peripheral vessels, musculoskeletal system. L742UA(6.0/7.0/8.0/9.0/10.0 MHz) Small organs (breast, thyroid, prostate), skull of newborns, peripheral vessels, musculoskeletal system. L763 UA(6.0/7.0/8.0/9.0/10.0 MHz) Small organs (breast, thyroid, prostate), skull of newborns, peripheral vessels, musculoskeletal system. Manba: https://www.nv-lab.ru/catalog_info.php?ID=1081
