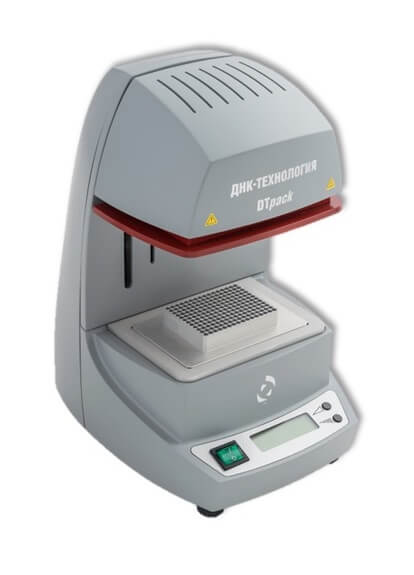

DTpak device for sealing microplates
DTpak device for sealing microplates used in real-time PCR microplate assays and works with a variety of microplate and film types. The device is effective when working with plates of various types and designs, heights and materials, from different manufacturers, including PCR plates with “skirts”, “half-skirts” and without “skirts”. Sealing parameters, including optimal block heating temperature, movable carriage clamping force and time, can be selected using special software and stored in the device's built-in memory. The LCD display displays device status, selected parameters, including current temperature and sealing time. With the ability to select parameters optimized for combinations of specific plates and films, DTpack guarantees reproducibility and reliable sealing, preventing sample loss, associated with insufficient or excessive sealing. Main features: coding on the LCD screen using signs and symbols to inform about the current status and selected sealing parameters; simple 2-button control that allows you to seal the microplate in four steps; compatibility with various tablets and sealing films; replacement blocks for 96- and 384-well PCR plates (blocks for plates, adapters and devices of any shape can be made to order); optimized and controlled sealing process; electric drive with adjustable pressing force; adjustable temperature, sealing time and pressing force to form profiles of optimal operating parameters; built-in memory for storing up to four optimized profiles; Automatic standby mode for quick restart and energy saving; USB 2.0 interface for programming sealing parameters. Manba: https://www.nv-lab.ru/catalog_info.php?ID=6958
- Parameter: Value
- Working surface temperature, °C: 100…200
- Absolute error of temperature maintenance, °C: ±2
- Sealing time, s: 0.1…9.9
- Maximum clamping force, kg: 12
- Power, V/Hz: 220/50
- Dimensions (WxHxD), mm: 315x244x190
- Weight, kg: 4.5
