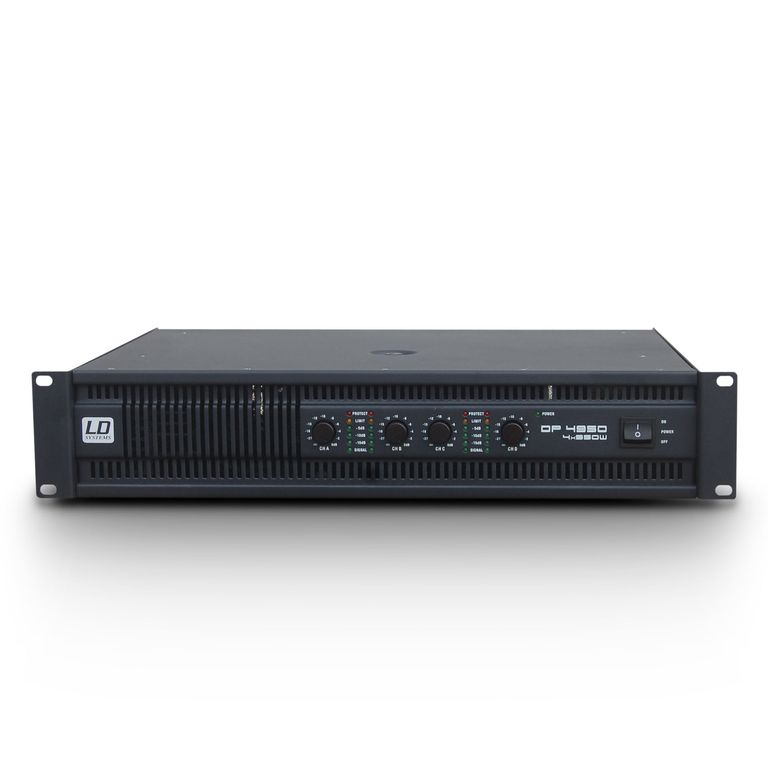

Power amplifier LD Systems DEEP2 4950
Power amplifier LD Systems DEEP2 4950 is a new 4-channel class H power amplifier with a transformer power supply. When developing this series, LD Systems attached great importance to the reliability and durability of the amplifiers during continuous operation, so only high-quality and reliable components were used for production. The amplifiers are equipped with a limiter and a system of protection against overload and short circuit. The DEEP2 series is user-friendly and ideal for multifunctional sound reinforcement systems due to its dynamic and very clear sound. All models in the series are lightweight and have a durable steel body, a very convenient and compact design. The DEEP2 4950 is a cost-effective and reliable choice for bands, audio rental companies and professional users thanks to its excellent price/performance ratio. Features of the DEEP2 4950 amplifier: 4 x 810 W @ 4 Ohms, 4 x 490 W @ 8 Ohms, in bridged mode - 2 x 1600 W @ 8 Ohms.
- Type: 4 channel
- Rated power (1 kHz @ 4 ohms): 4 x 810 W
- Rated power (1 kHz @ 8 ohms): 4 x 490 W
- Rated power (1 kHz @ 8 ohms - bridge mode): 2 x 1600 W
- Output stage: Class H
- Frequency range: 20 Hz – 20 kHz
- Total Harmonic Distortion (THD): <0.1%
- Signal to noise ratio: 105 dB
- Damping factor: > 400
- Crosstalk: >70dB
- Input Gain: 38dB
- Sensitivity: 0.775V
- Protection system: DC protection, short circuit protection, over temperature protection
- Controls: Bridge/stereo mode selector, power switch (on/off), 4 x volume controls, ground lift
- Indication: Level, power, activation of limiter and protection systems, signal
- Outputs: 4
- Output Connectors: SpeakON
- Cooling: Automatic
- Power supply: Transformer
- Supply voltage: 230 V, 50 - 60 Hz
- Dimensions (WxHxD): 483 x 88 x 370 mm
- Weight: 19.6 kg
