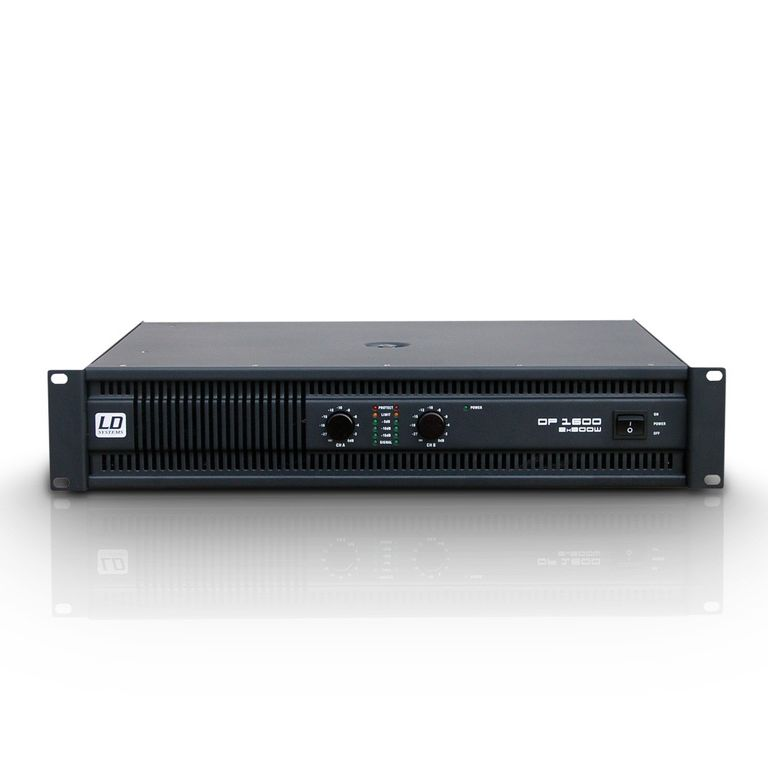

Power amplifier LD Systems DEEP2 1600
The LD Systems DEEP2 1600 power amplifier is a new class H power amplifier with a transformer power supply. When developing this series, LD Systems attached great importance to the reliability and durability of the amplifiers during continuous operation, so only high-quality and reliable components were used for production. The amplifiers are equipped with a limiter and a system of protection against overload and short circuit. The DEEP2 series is user-friendly and ideal for multifunctional sound reinforcement systems due to its dynamic and clear sound. All models in the series are lightweight and have a durable steel body, a very convenient and compact design. The DEEP2 1600 is a cost-effective and reliable choice for bands, audio rental companies and professional users thanks to its excellent price/performance ratio. DEEP2 1600 amplifier features: 2 x 800 W @ 2 Ohm, 2 x 650 W @ 4 Ohm, 2 x 450 W @ 8 Ohm, bridged - 1600 W @ 4 Ohm, 1300 W @ 8 Ohm.
- Type: 2 channel
- Rated power (1 kHz @ 2 ohms): 2 x 800 W
- Rated power (1 kHz @ 4 ohms): 2 x 670 W
- Rated power (1 kHz @ 8 ohms): 2 x 450 W
- Rated power (1 kHz @ 4 ohms - bridge mode): 1600 W
- Rated power (1 kHz @ 8 ohms - bridge mode): 1300 W
- Output stage: Class H
- Frequency range: 20 Hz – 20 kHz
- Total Harmonic Distortion (THD): <0.1%
- Signal to noise ratio: 106 dB
- Damping factor: > 400
- Crosstalk: >80dB
- Input Gain: 39 dB
- Sensitivity: 0.775V
- Protection system: Clip limiter, DC, short circuit, overheat protection
- Controls: Bridge/stereo mode selector, power switch (on/off), 2 x volume controls, ground lift
- Indication: Level, power, activation of limiter and protection systems, signal
- Outputs: 2
- Output Connectors: SpeakON, Terminal Connectors
- Cooling: Automatic
- Power supply: Transformer
- Features: Volex Connector
- Supply voltage: 230 V, 50 - 60 Hz
- Dimensions (WxHxD): 483 x 88 x 370 mm
- Weight: 15.9 kg
