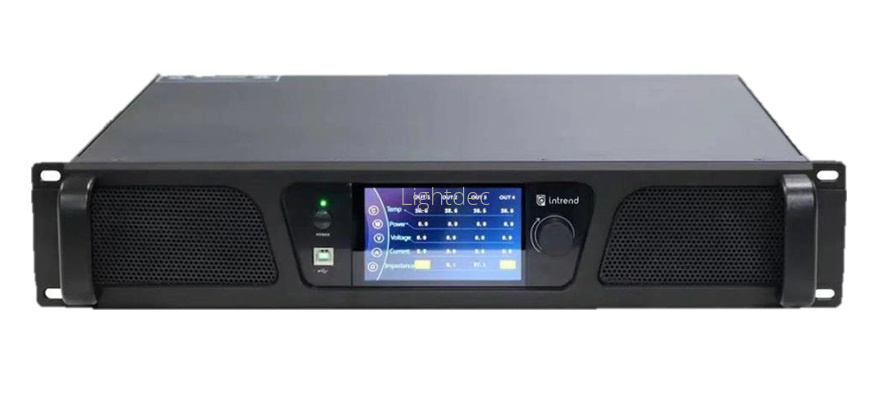

Amplifier INTREND ITAMP-4x2K-TD
INTREND ITAMP-4K-TD is a multifunctional professional digital power amplifier with a built-in DSP processor and Dante protocol support. The amplifier can operate both in low-impedance mode with an impedance of 8 Ohms and 4 Ohms, and in 70/100 V mode. The device can be used in various commercial installations, for playing background music and general music in shopping centers, shops, restaurants and bars, fitness rooms, conference rooms, business centers, educational and budget institutions and other premises. The built-in DSP processor allows you to fine-tune system parameters in real time, thanks to the function of remote control and condition monitoring. The device supports several control modes - via USB port, via TCP/IP, RS23 and RS485. The amplifier case is made of durable metal and has a 2U rack space size. On the front of the case there is an informative 4.3-inch IPS color touchscreen display, next to which there is an encoder for configuration control. The INTREND ITAMP-4K-TD provides a rated output power of 4 x 1000 Watts into 8 ohms or 4 x 1600 Watts into 4 ohms, also outputting 4 x 600 Watts when connected in 70V mode. In bridged mode, when connected in 100 V mode, the power can reach up to 2 x 1250 W, and in low-impedance bridged connection at 8 Ohms, the power can reach 2 x 2560 W. There is support for playback in stereo or mono, as well as a freely customizable matrix. On the back of the amplifier housing there are 4 balanced XLR inputs, 4 balanced XLR outputs (Link), two RJ-45 ports for connecting to an Ethernet network and receiving a signal via the Dante protocol. Next there is a GPIO/RS remote control terminal block. To connect 4 loudspeakers, there are 4 SpeakON outputs, which are duplicated with terminal clamps. To maintain optimal operating temperature and protect against overheating, there are a pair of case fans. To select the optimal input level, 3 levels of input sensitivity are available - 0/6/12 dBu. The device is controlled via dedicated software, operates at a sampling rate of 48 kHz/24-bit and has an ultra-low THD of <0.08%.
- Purpose: For concert venues
- Number of independent zones: 4
- Number of outputs: 4
- Power in 8 Ohm mode, W: 4000
- Power in 100 V mode, W: 6400
- Built-in DSP processor: yes
- Control ports: RS-232, Ethernet
- Installation method: Rack stand
- Built-in mixer: no
- Number of channels: 4
- OUTPUT connectors: Terminal block
- INPUT Connectors: Terminal Block, XLR
- Power in 4 Ohm mode, W: 6400
- Power in 70 V mode, W: 2400
- Color: black
- Number of inputs: 4
- Warranty: 12 months.
- Length (m): 0.59
- Weight: 4
