Audio equipment

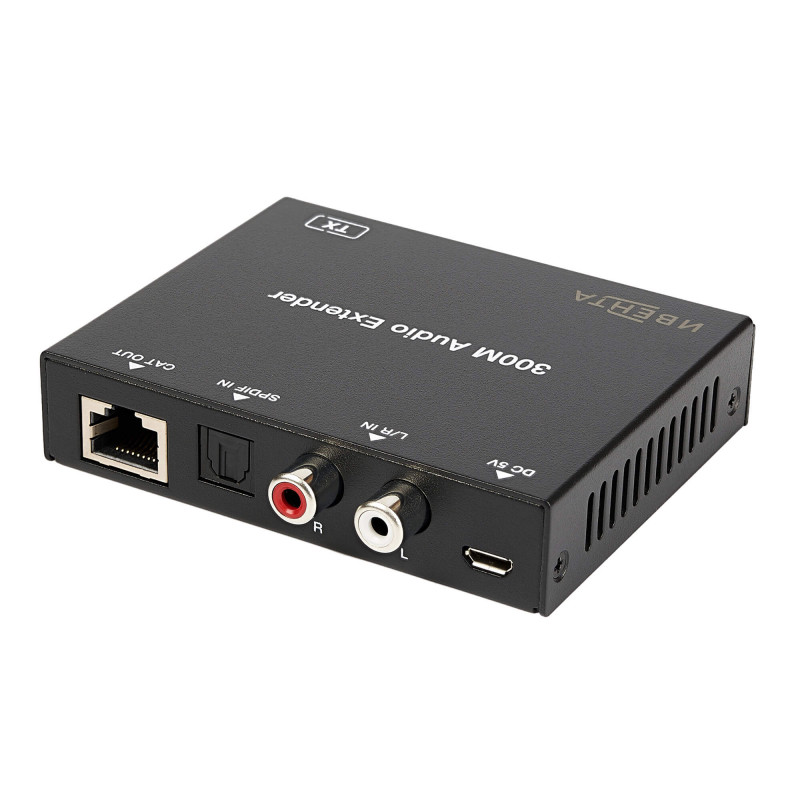

Event audio signal extender UAS300

The Event Audio Extender UAS300 can transmit digital optical and analog audio signals simultaneously over distances of up to 300 m (at 48 kHz), 150 m (at 96 kHz) or 100 m (at 192 kHz) over a single CAT5E/6 cable. The digital optical audio signal is directly transmitted from the transmitter to the receiver. The analog audio output on the receiver can be selected from digital optical or analog audio from the transmitter. The extender supports the bidirectional POC (Power over Cable) function. It is an excellent plug and play solution for transmitting optical and analog audio from an HDTV back to an amplifier, AVR (audio video receiver) or multi-room audio system that requires an analog stereo audio input signal.

• Bitrate and distance: 192 kHz - 100 m, 96 kHz - 150 m, 48 kHz - 300 m
• Supported audio formats: Optical: LPCM 2.0, LPCM 5.1, Dolby Digital 2/5.1CH Analogue: PCM 2.0
• Sampling rates: 32 kHz, 44.1 kHz, 48 kHz, 96 kHz, 176.4 kHz and 192 kHz (up to 24 bits)
• Electrostatic discharge (ESD) protection: IEC 61000-4-2: ±8 kV (air discharge), ±4 kV (contact discharge)
• Transmitter: Input Ports: 1 x SPDIF IN [Optical Audio Jack] 1 x L/R IN [Stereo RCA Audio Jack] 1 x Micro-USB Output Port: 1 x CAT OUT [RJ45]
• Receiver: Input Ports: 1 x CAT IN [RJ45] 1 x Micro-USB Output Ports: 1 x SPDIF OUT [Optical Audio Jack] 1 x L/R OUT [Stereo RCA Audio Jack]
• Power supply: DC 5V/1A
• Power Consumption: 1.5W (max)
• Operating temperature: 0°C ~ 40°C
• Storage temperature: -20°C ~ 60°C
• Relative Humidity: 20~90%RH (non-condensing)
• Housing: Metal
• Color: Black
• Dimensions (W x H x D): Transmitter/Receiver: 90 x 72 mm x 20 mm
• Weight: Transmitter/Receiver: 174 g
