Audio equipment

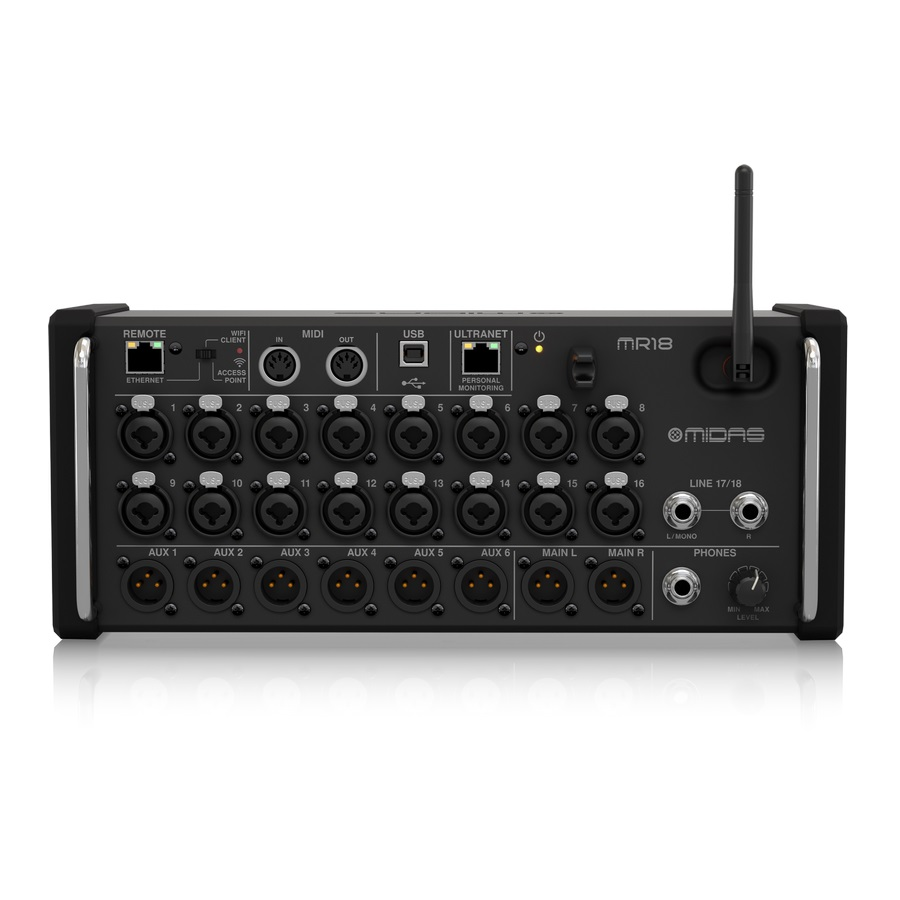

Midas MR18 digital mixing console
Mixer Midas MR18 - This model from a young but already quite popular company with the self-explanatory name Midas is an 18-channel MR18 mixer, which is ideal for both studio and stage use. First of all, this is a competitive analogue to the XR18 device from the famous German company Behringer. The main characteristic feature of the device is the presence of a built-in Wi-Fi module and, accordingly, remote control directly from a laptop or even from a regular mobile gadget running iOS or Android. The MR18 also features a versatile multi-channel audio interface designed for USB 2.0, as well as 4 powerful effects engines that provide a rich palette of sound modification capabilities.
Price on request
- Number of analog input channels: 18
- Number of analog output channels: 18
- Mixed routing: 2 x master LRC
- Internal effects: 4 x stereo signal
- Rotation frequency: 44.1/48 kHz
- AD/DA bit depth: 24-bit
- Dynamic range A/D: 110 dB
- Digital analysis: 111 dB
- Latency: 0.8ms (analog input to analog output)
- Frequency response: 20 Hz to 20 kHz
- Line In: +21 dB (Balanced)
- XLR input: +23.5 dBu
- TRS 1/4" input: +21 dB
- Output Level Headphone Out: +21 dB (max)
- Output 1/4" TRS / XLR: +21 dBu (max.)
- Hi-Z Input: 1 MΩ (Unbalanced), 2 MΩ (Balanced)
- Output: 50 ohms
- Headphone Output: 50 Ohm
- Adjacent inputs: 90 dB at 1 kHz
- CMRRR: 65 dB at Unity Gain
- Signal gain: 90 dB at +60 dB
- EIN: -125 dBu at +60 dB
- Noise level: -86 dB, -90 dB with inputs disabled (unweighted)
- Mini Mic/Line THD+N: 0.005%
- Analog Inputs: 16 x combo XLR-1/4" TRS balanced input, 2 x 1/4" TRS balanced line input
- Analog Outputs: 1 x 1/4" TRS balanced headphone output, 2 x XLR balanced main output, 6 x 1/4" TRS balanced aux output
- Phantom Power: +48V (selectable on individual inputs)
- Digital inputs/outputs: 1 x RJ45
- MIDI I/O: 1 x MIDI 5-pin input, 1 x MIDI 5-pin output
- USB: 1 x USB Type B (USB 2.0, Audio Playback, MIDI)
- Wireless connection: Wi-Fi
- System requirements: Windows 7+, MacOS 10.6.8+, iOS 7+, Linux
- AC Input Power: 100 to 240 VAC, 50 / 60 Hz.
- Power consumption: 30 W
- Operating temperature: 41 - 104°F / 5 - 40°C
- Size: 332.7 x 149.9 x 147.3 mm
- Weight: 3.9 kg
