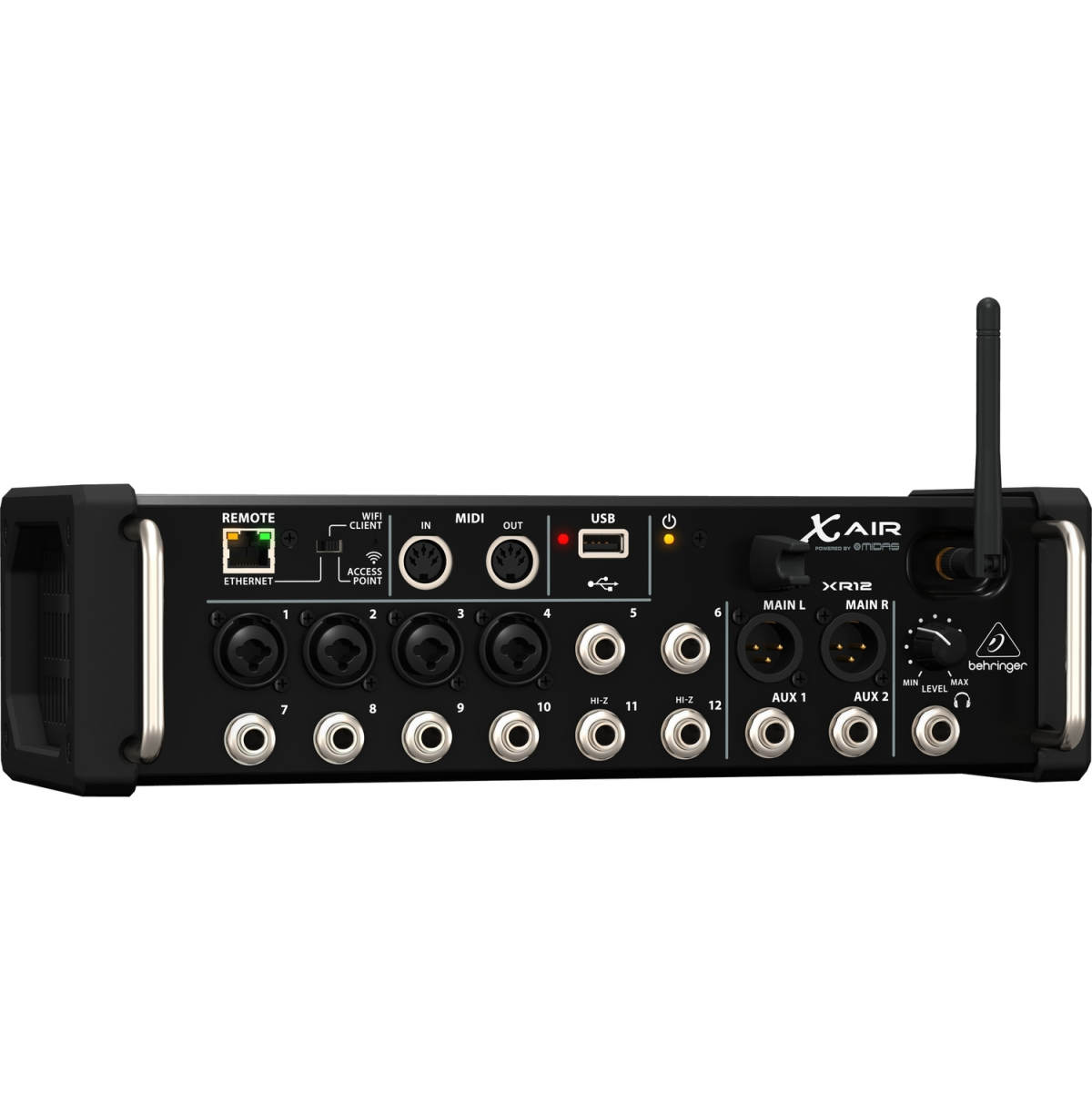

Behringer XR12 digital mixing console
Behringer XR12 - Digital mixer, control from iPad or Android tablets, 12 inputs, Wi-Fi, two-channel audio interface for USB bus. Behringer XR models are compact digital mixers designed in the form of a monoblock/stagebox and designed for control from a computer or tablet via an Ethernet port, a built-in WiFi router or an additional external WiFi router. Despite their modest size and cost, these models provide extraordinary internal structure flexibility, powerful audio processing and excellent sound quality. The XR12 and XR16 models provide recording and playback of stereo files onto a USB drive. The XR18 model, in addition to the increased number of microphone inputs, allows you to record and play back up to 18 channels to a computer via a built-in USB interface. It is also additionally equipped with an ULTRANET digital interface.
- Number of processing channels: 16 input channels, 4 FX return channels, 6 AUX buses, main Left/Right, 1 USB stereo return
- Internal effects processors: 4 stereo
- Signal Processing: 40 bit floating point
- Converter: 24-bit - 44.1/48 kHz, dynamic range 114 dB
- Analog I/O latency: 0.8 ms
- Programmable mic preamps designed by MIDAS: 4 XLR/TRS combo jacks, balanced
- Line/AUX inputs, stereo: 8 TRS, balanced
- Main outputs: 2 XLR, balanced
- AUX outputs: 2 TRS, balanced
- Headphone outputs: 1 TRS
- MIDI in/out: 1/1 DIN
- Ethernet: 1 RJ45
- Audio/Midi interface: 1 USB Type A
- Preamps: Midas
- THD+ noise, 20 dB gain, 0 dBu output: <0.005%, A-weighted
- Phantom power switchable per input: 48V
- Equivalent Input Noise Level, XLR (input shorted): -128 dBu, A-weighted
- CMRR, XLR, 20 dB gain (typical): >60 dB
- CMRR, XLR, 40dB gain: >65dB
- Frequency range, sampling rate 48 kHz, 0 dB - 1 dB: 10 Hz - 22 kHz
- Dynamic range, analog input - analog output (typical): 104 dB
- A/D dynamic range, preamp/converter (typical): 109 dB
- D/A dynamic range, converter-out: 108 dB
- Crosstalk Rejection - 1 kHz, Adjacent Channels: 90 dB
- Input Impedance Mic 1-16, XLR, unbalanced/balanced: 5 kOhm / 10 kOhm
- Maximum input level without clip, XLR: +23 dBu
- Input impedance Hi-Z 1-2, TRS, unbalanced/balanced: 1 MΩ / 2 MΩ
- Input impedance Line, TRS, unbalanced/balanced: 20 kOhm / 40 kOhm
- Maximum input level without clip, TRS: +21 dBu
- Output Impedance, XLR, unbalanced/balanced: 50 ohms / 50 ohms
- Output Level, XLR, nominal/max: +4 dBu / +16 dBu
- Output Impedance, TRS, Unbalanced/Balanced: 50 Ohm / 50 Ohm
- Output Level, TRS, nominal/max: +4 dBu / +16 dBu
- Headphone output, impedance/level: 40 ohms / +35 dBm (stereo)
- Residual Noise Level, XLR and TRS: -92 dBu, A-weighted
- Antenna: external, SMA connector, 50 Ohm
- Access point, number of clients: max. 4
- Frequency IEEE 802.11 b/g standard: 2.4 GHz
- Frequency range: 2.412-2.462 MHz
- WLAN channels (Wifi client, access point): 1-11
- Maximum output power: 19 dBm (802.11 b) / 18 dBm (802.11 g)
- Power supply in pulse mode: auto range 100-240 V, (50/60 Hz)
- Power consumption: 30 W
- Electrical connection: Standard IEC plug
- Dimensions (HxWxD): 333 x 149 x 95 mm
- Weight: 2.4 kg
