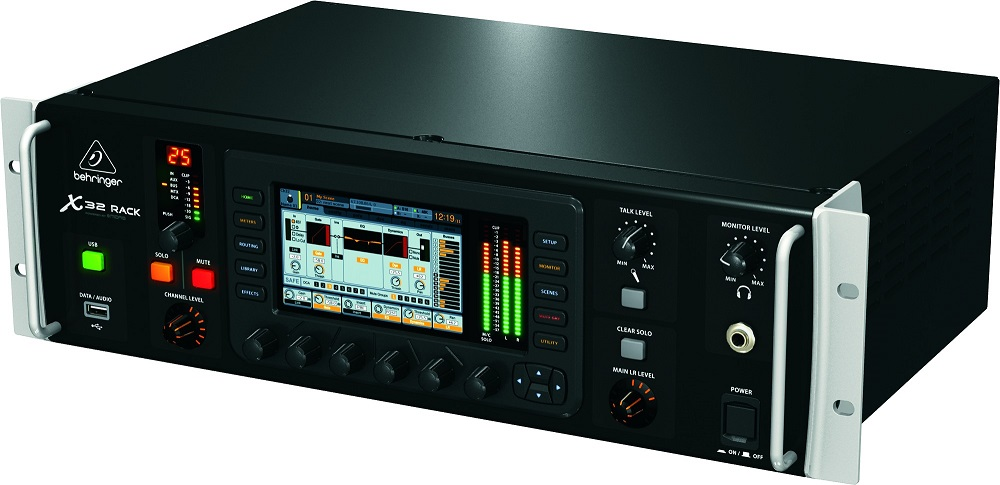

Behringer X32 Rack Digital Mixing Console
The X32 RACK is a revolutionary new product in this genre that combines analog I/O and digital connections with comprehensive processing for 40 channels, 25 buses and up to 152 signal sources. While every mix parameter can be adjusted on the X32 RACK via the 800 x 480 graphical user interface, remote network control creates new possibilities. Multiple apps from XControl PC/Mac, XiControl for iPad/iPad mini and XiQ for iPhone/iPod let you control your mix from exactly where you think best. 16 MIDAS mic preamps provide plenty of inputs, and with dual AES50 ports, the X32 RACK can support up to 6 S16 DI boxes for a huge amount of I/O. 8 powerful stereo FX processors with flexible options make the X32 RACK the ideal choice for audio processing.
- Number of channels: 32 input channels. 8 aux inputs. 8 FX returns. 16 buses, 6 matrices. LRC.
- Internal stereo/mono effects processors: 8/16.
- Total scene recall: 100.
- Signal processing: 40-bit.
- A/D-D/A conversion: 24-bit @ 44.1/48 kHz, 114 dB dynamic range.
- Latency: 0.8ms.
- Network latency: 1.1 ms.
- Total number of available input/output sources: 150/158.
- XLR inputs, programmable mic preamps designed by MIDAS: 16.
- Talkback microphone input, XLR: 1.
- RCA inputs/outputs: 2/2.
- XLR outputs: 8.
- Monitoring outputs, 1/4"TRS balanced: 2.
- Aux inputs/outputs, 1/4"TRS, balanced: 6/6.
- Phone outputs, 1/4"TRS: 1 stereo.
- AES50 port: 2.
- Expansion card: 32 channels of audio input/output, various standards.
- Connector for R-16: 1.
- MIDI input/output: 1/1.
- RJ 45 for remote control: 1.
- USB type-A, front panel, for import/export of audio and data: 1.
- Preamp Design: MIDAS.
- THD+ noise, +20 dB, -0 dBu: Less than 0.006%.
- Input impedance unbalanced/balanced: 5 kOhm/10 kOhm.
- Maximum input level: +23 dBu.
- Phantom power: 48V.
- Equivalent input noise level: -128 dBu.
- CMRR, XLR@20 dB: 70 dB.
- CMRR, XLR@40 dB: 80 dB.
- Frequency range: 10 Hz – 22 kHz.
- Dynamic range: 106 dB.
- A/D dynamic range, preamp and converter: 109 dB.
- D/A dynamic range, converter and output: 108 dB.
- Cross talk: 100 dB.
- XLR output level norm/max: +4 dBu /+21 dBu.
- Output impedance, XLR unbalanced/balanced: 75 Ohm/75 Ohm.
- Input impedance TRS jack, unbalanced/balanced: 20 kOhm/40 kOhm.
- Maximum input level, TRS: +16 dBu.
- Nominal TRS output level: +4 dBu/+16 dBu.
- Output impedance, TRS unbalanced/balanced: 150 Ohm/300 Ohm.
- Phones output impedance/level: 40 Ohm/+25 dBm (stereo).
- Noise level, XLR and TRS: -87 dBu.
- Main screen: 5 inches, 800 x 480, 262 colors.
- Power: 100-240V (50/60 Hz).
