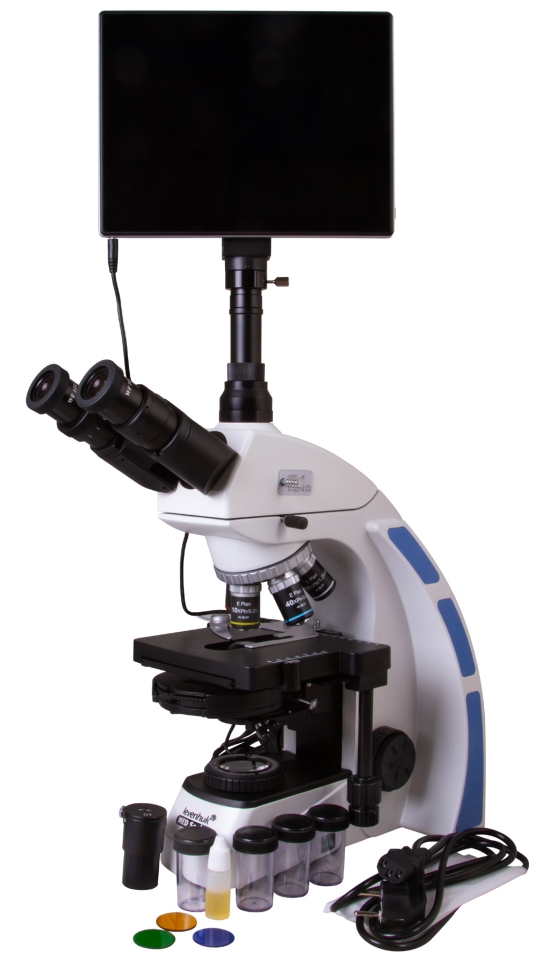

Levenhuk MED D45T LCD Digital Microscope
Levenhuk MED D45T LCD Digital Microscope - the presence of a 5 MP digital camera and a built-in LCD display allows you to observe and demonstrate research without connecting to a PC. Using the phase contrast method increases the saturation and clarity of transparent objects without additional coloring. This feature is extremely useful when studying microbiological living samples that will die when paint is applied. This device is an excellent purchase for both a scientific laboratory and a medical institution. Advantage of LCD Display The presence of an LCD display in the Levenhuk MED D45T biological microscope allows you to observe an object in the smallest detail, record videos and photos. In addition, using a monitor rather than a lens as a means of observation, you will reduce eye strain, and you can also use the device as a visual aid in the educational process. High-quality optics with infinite correction type As a professional category device, a digital microscope is equipped with an optical system, the infinite type of correction of which allows additional auxiliary elements, for example, illuminators or polarizers, to be built into the optical space between the tube and the lenses. Thus, the Levenhuk MED D45T biological microscope can be optimized to solve a wide range of research problems. Thoughtful design and convenient operation Thanks to the ability of the Levenhuk MED D45T LCD biological microscope to tilt the observation part by 30°, you will not have to strain your neck and shoulders during long-term studies. All optical elements of the device have a coating that protects against fungus, which is very useful for biological research. For convenient and prompt placement of the material under study under the lens, the object stage of the device is equipped with a preparation guide. You can also install additional filters in a special holder to change the contrast and improve detail. For further processing of images and videos, the package includes a CD with software that allows you to change the color parameters of the image.
- Microscope type: biological
- Attachment type: trinocular
- Maximum resolution: 2048x1536 pixels
- Optics material: optical glass with anti-fungal coating
- Nozzle: 360° rotatable
- Eyepiece tilt angle: 30°
- Magnification, times: 40-1000
- Diameter of the eyepiece tube, mm: 30 mm (binocular attachment); 23.2 mm (third vertical tube)
- Eyepieces: wide-field with diopter adjustment WF 10x/22 mm (2 pcs.)
- Lenses: phase plan achromatic, infinity corrected: 4x, 10x, 40xs, 100xs (oil)
- Revolving device: for 5 lenses
- Interpupillary distance, mm: 48–75
- Subject table, mm: mechanical two-layer, 180x150 mm, with preparation guide
- Range of movement of the object table, mm: 75/50
- Diopter adjustment of eyepieces, D: ±5
- Condenser: phase (dark field)
- Focusing: coaxial, coarse (0.5 mm) and fine (0.002 mm), with rack and pinion mechanism
- Case: metal
- Backlight: LED
- Brightness adjustment: yes
- Backlight type: 5W AC 85-230V
- Light filters: blue, green, yellow
- Additionally: collector, Koehler lighting
- Number of megapixels: 5
- Sensing element: 1/2.5
- Pixel size, microns: 2.2x2.2
- Sensitivity, volts per lux-second at a wavelength of 550 nm: 0.53
- Video recording capability: yes
- Frame rate: 15
- Place of use: 23.2mm microscope third eyepiece tube; using a camera mount
- White balance: auto/manual
- Exposure control: auto/manual
- Software, drivers: Android 5.1 (multilingual)
- Software capabilities: measurements, brightness, particle analysis, etc.
- Output: USB 2.0 (2 pcs.), miniHDMI, Wi-Fi, TF memory card slot
- Camera power supply: DC 12V; via AC adapter
- Additionally: LCD screen: 9.4 inches, color, touch; Built-in memory: 4 GB
- Possibility of connecting other equipment: microSD memory cards up to 32 GB; monitor/TV with HDMI connector; flash drive, computer mouse, keyboard with USB connector; 3.5 mm headphones
- Photo: *.jpg
- Video: 1080p, *.3gp
- Purpose: laboratory/medical
- Illumination location: bottom
- Research method: phase contrast microscopy, dark field, bright field
- Digital camera included: yes
- Power supply: 100-240V
