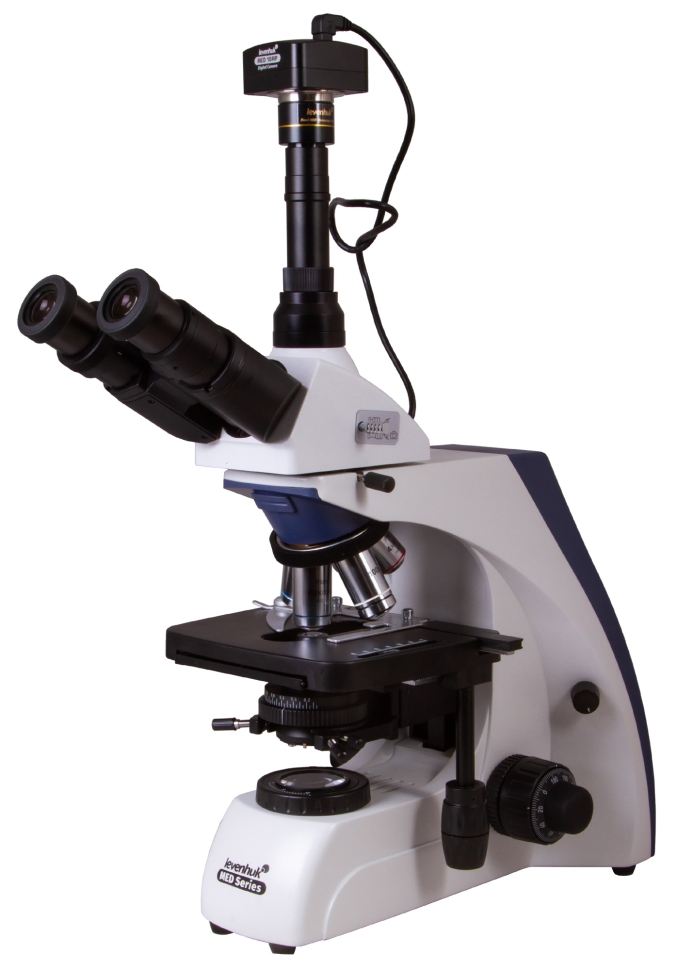

Levenhuk MED D35T Digital Microscope
Levenhuk MED D35T digital microscope is a laboratory-grade device with a bright-field research method, which allows you to study specimens with different optical densities (both transparent and opaque) in high detail without additional equipment, magnifying the image up to 1000 times without loss of quality. The main difference from the younger model D30T is the use of plan achromatic lenses. This device is an excellent purchase for both a scientific laboratory and a medical institution. Planachromatic optics with infinite correction type Plan lenses, correcting image distortions at the edges, provide high detail of the entire object of study. As a professional category device, the Levenhuk MED D35T digital microscope is equipped with an optical system, the infinite type of correction of which allows you to integrate additional auxiliary elements, for example, illuminators or polarizers, into the optical space between the tube and the lenses. Thus, the microscope can be optimized to solve a wide range of research problems. Connecting an external monitor By connecting the camera to a PC using a USB cable, you can broadcast the research process online to an external monitor. Thus, this digital microscope can become a visual aid in the educational process, and also allows you to attract a group of people to the study. In addition, using a wide screen rather than a lens as a means of observation, you will reduce eye strain and be able to see the smallest details. Thoughtful design and convenient operation The viewing part of the Levenhuk MED D35T biological microscope is tilted by 30° to reduce the load on the neck and shoulders during long-term studies. Also, all optical elements of the device have a coating that protects against fungus, which is very useful for biological research. For convenient and prompt placement of the material under study under the lens, the object stage of the device is equipped with a preparation guide. You can also install additional filters in a special holder to change the contrast and improve detail. You can save your work on a removable microSD card with a capacity of up to 32 GB, which allows you to create an extensive data library. For further processing of images and videos, the package includes a CD with software that allows you to change the color parameters of the image
- Microscope type: digital, biological
- Attachment type: trinocular
- Maximum resolution: 3584x2748
- Optics material: optical glass with anti-fungal coating
- Nozzle: 360° rotatable, with light divider
- Eyepiece tilt angle: 30°
- Magnification, times: 40-1000
- Diameter of the eyepiece tube, mm: 30 mm (binocular attachment); 23.2 mm (third vertical tube)
- Eyepieces: wide-field with diopter adjustment WF 10x/22 mm (2 pcs.)
- Lenses: planachromatic, infinity corrected: 4x, 10x, 40xs, 60xs, 100xs (oil)
- Revolving device: for 5 lenses
- Interpupillary distance, mm: 48–75
- Subject table, mm: mechanical two-layer, 180x160 mm, with preparation guide
- Range of movement of the object table, mm: 80/50
- Diopter adjustment of eyepieces, D: ±5
- Condenser: Abbe N.A. 1.25 with iris diaphragm and filter holder
- Aperture: iris
- Focusing: coaxial, coarse (0.5 mm) and fine (0.002 mm), with rack and pinion mechanism
- Case: metal
- Backlight: halogen
- Brightness adjustment: yes
- Backlight type: 12V/30W, AC 85-230V
- Light filters: blue, green, yellow
- Additionally: collector, Koehler lighting
- Number of megapixels: 10
- Sensing element: 1/2.3
- Pixel size, microns: 1.67x1.67
- Sensitivity, volts per lux-second at a wavelength of 550 nm: 0.31
- Video recording capability: yes
- Frame rate: 3.3@3584x2748 11@1792x1374 38@896x684
- Dynamic range, dB: 65.2
- Use location: 23.2mm microscope third eyepiece tube
- Spectral range, nm: 380–650
- White balance: auto/manual
- Exposure control: 0.4–2000 ms
- Software, drivers: Levenhuk
- Software features: image size, brightness, exposure time
- Output: USB 2.0, 480 Mbps
- System requirements: Windows XP/Vista/7/8/10 (32 and 64 bit), Mac OS 10.12, Linux, 2.8 GHz Intel Core 2 or higher, at least 2 GB RAM, USB 2.0, 17 monitor
- Camera power supply: via USB cable
- Purpose: laboratory/medical
- Illumination location: bottom
- Research method: bright field
- Digital camera included: yes
- Power supply: 100-240V
