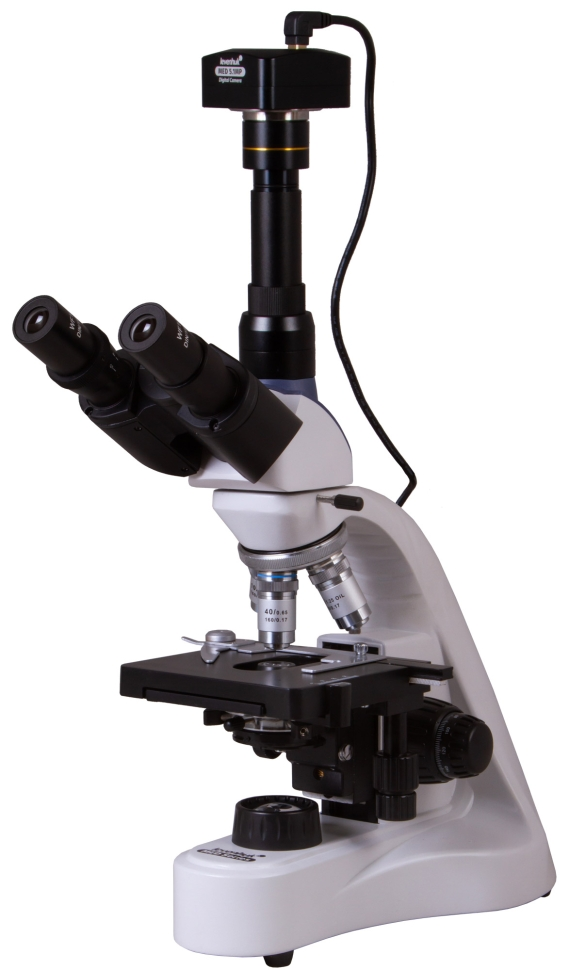

Levenhuk MED D10T Digital Microscope
The Levenhuk MED D10T trinocular microscope is equipped with a 5.1 megapixel digital camera, so it can be used not only for visual observations, but also for presentations, and for recording studies in photos and videos. Thanks to achromatic optics, the microscope conveys a high-contrast and detailed image. The image quality is suitable for professional examination of microbiological samples at magnifications from 40 to 1000 times. Trinocular head and digital capabilities The microscope has a trinocular attachment, consisting of a binocular visual part and a separate vertical tube for installing a digital camera. The nozzle rotates 360°, the visual block is tilted at an angle of 30°. The kit includes a 5.1 megapixel digital camera, its capabilities include taking individual photos, recording videos, and transmitting images to an external screen in real time. The program, which is installed from the included disk, allows for simple image processing. Easy and convenient work in the laboratory The camera makes work in the laboratory easier and more convenient for the researcher - there is no need to constantly strain your eyes while looking at samples through eyepieces: everything can be seen on the computer screen. Using the software, you can adjust the size, brightness and contrast of the image, change the exposure time, calibrate the camera with lenses, measure samples or individual structures (several units of measurement are available). High-end achromatic optics Optics is a combination of wide-field 10x eyepieces and four achromatic objectives of different magnifications. The total magnification of the microscope ranges from 40 to 1000 times. The eyepieces have diopter adjustment, and the two lenses with the highest magnification are equipped with spring-loaded frames. A 100x magnification lens is used for oil immersion. All optics are protected with an anti-fungal coating. Bright illumination of samples with a powerful LED To accurately position the sample on the stage, you can use a preparation preparation. The table itself moves in two directions. There is coarse and fine focusing. The samples are illuminated from below with a bright 5-W LED. Light passes through an Abbe condenser with an iris diaphragm. You can install a light filter in a special holder. The brightness of the backlight is adjustable. AC power is used to power the backlight.
- Microscope type: biological, digital
- Purpose: laboratory, medical
- Maximum resolution, pixel: 2048×1536
- Number of megapixels: 5.1
- Sensor type: CMOS
- Matrix size: 1/2.5"
- Pixel size, microns: 2.2
- Magnification, times: 40 - 1000
- Optics material: optical glass with anti-fungal coating
- Attachment type: trinocular
- Rotation of the eyepiece: yes, 360°
- Eyepiece tilt angle: 30°
- Diopter adjustment of eyepieces: ±5 diopters
- Interpupillary distance, mm: 48 - 75
- Mounting diameter of eyepieces: 30 mm
- Additionally: internal diameter vert. tube: 23.2 mm
- Eyepieces: wide field 10x/18 mm
- Lenses: achromatic, 4x/0.10, 10x/0.25, 40xs/0.65, 100xs/1.25 (oil)
- Correction for microscope tube length: 160 mm
- Correction for cover glass thickness: 0.17 mm
- Revolving device: for 4 lenses
- Subject table: 125x130 mm, mechanical two-axis, with specimen guide and coaxially located control handles
- Range of movement of the drug, mm: 70 × 50
- Condenser: Abbe, centered, height adjustable, with filter holder, largest numerical aperture: 1.25
- Aperture: aperture
- Focusing: fine, coarse, coaxially located control knobs, with a height limiter for the table movement
- Fine focusing step, mm: 0.002
- Backlight type: LED
- LED power: 5W
- Illumination location: bottom
- Brightness adjustment: yes
- Backlight power: mains 220 V/50 Hz
- Research method: bright field
- Light filters included: blue, green, yellow
- Digital camera included: yes
- Use location: 23.2mm microscope third eyepiece tube
- Sensitivity at λ= 550 nm, V/lx-s: 0.53
- Spectral range, nm: 380 – 650
- Dynamic range, dB: 66
- White balance: auto/manual
- Exposure control: 0.294-2000 ms
- Frame rate: 2592x1944: 7 fps; 1280x960: 27fps; 640x480: 90 fps
- Software features: image size, brightness, exposure time
- Output: USB 2.0, 480 Mbps
- Camera power source: via USB cable
- Case material: metal
- Country of origin: China
- Manufacturer's Warranty: Lifetime
- Package weight: 5.8 kg
- Package size: 47.5 × 38.5 × 24 cm
