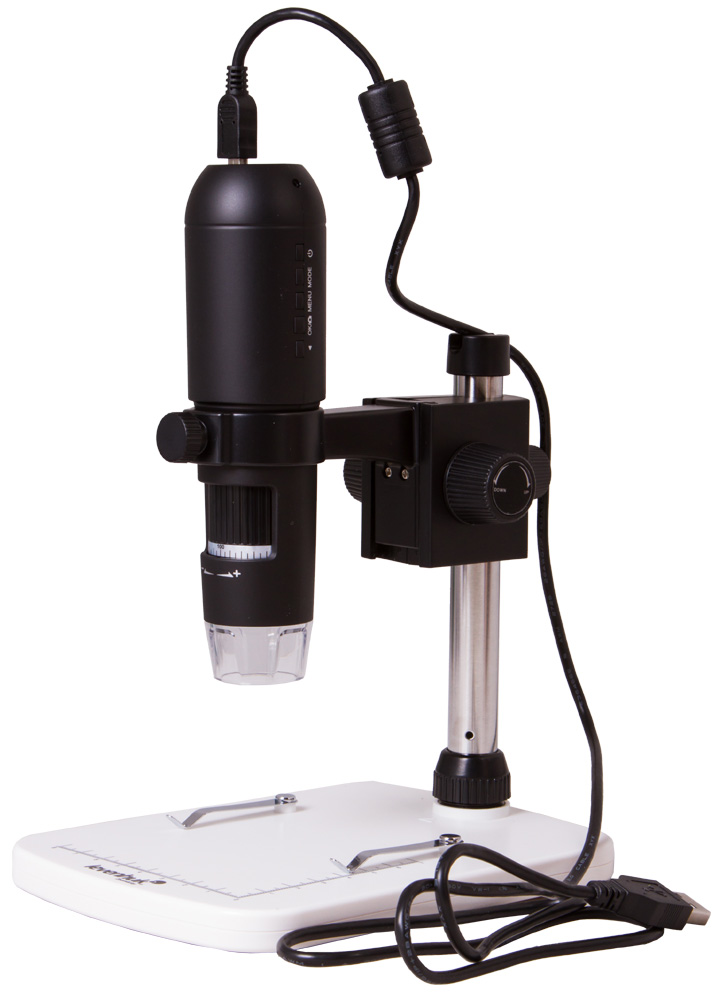

Levenhuk DTX TV Digital Microscope
Levenhuk DTX TV microscope – can display images on a computer or TV screen. The kit includes USB and HDMI cables - you can choose the type of connection that is most convenient for you. In real time, the microscope transmits the image from the lens to any external screen. Levenhuk DTX TV is an excellent choice for study, hobbies and work. The microscope is equipped with a tripod. By fixing the microscope on it, you can get clearer images. At the bottom of the stand there is a stage with metal preparation holders and a measuring scale. The 3-megapixel camera allows you to shoot highly detailed photos and videos in FullHD mode. To access all the capabilities of the camera, use a special program, the disk with which is included in the kit. It will allow you to process images: resize, adjust contrast and brightness, carry out linear and angular measurements of samples. For working in low light conditions, the microscope is equipped with LED illumination. It does not require batteries to power it - the microscope is charged via a USB cable or AC adapter while it is in use.
- Microscope type: digital
- Attachment Type: Digital Display/PC Monitor
- Optics material: optical plastic
- Magnification, times: 10–200
- Subject table, mm: with drug holders and measuring scale
- Focusing: manual, ranging from 10 to 500 mm
- Housing: plastic
- Backlight: LED
- Power supply: 100-240V, 50/60Hz; 5 V
- Operating temperature range, °C: -5...+50
- Number of megapixels: 3
- Video recording capability: yes
- Frame rate: 30 frames per second at 600 Lux illumination
- Software, drivers: software for capturing and editing photos and videos, with object measurement function
- System requirements: Windows XP/7/8/10, Mac 10.7 and higher, P4 1.8 GHz and higher, 512 MB RAM, 64 MB video card, USB 2.0 connector, CD-ROM, monitor with HDMI input
- Additionally: backlight: 8 bright LEDs
- Connectivity to other equipment: supports microSD memory cards up to 32 GB (not included)
- Photo: *.jpeg, 14M, 8M, 5M, 3M, 2M, WVGA
- Video: HDMI: *h.264; USB: *mjpeg 1080p Full HD, 720p, VGA
- Purpose: for applied work
- Illumination location: top
- Research method: bright field
