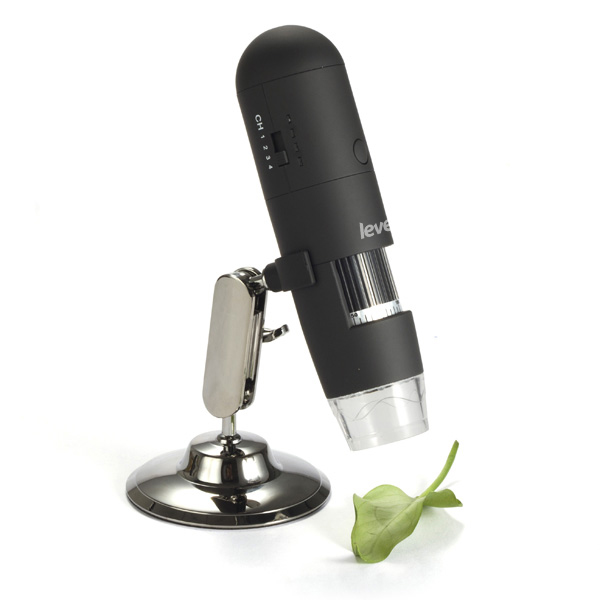

Levenhuk DTX 30 Digital Microscope
Levenhuk DTX 30 is a modern USB microscope with the ability to take photos and videos of studied samples, equipped with a 2 megapixel camera and having a variable magnification in the range from 20 to 230 times. The model can be used in a variety of fields: in radio electronics, jewelry, biology, zoology, etc. The microscope connects to a computer or laptop via a standard USB 2.0 port. Studying samples and processing images occurs using a convenient image capture program included in the package. It has an intuitive interface: the control panel contains buttons for editing images and videos, printing images, saving results to the hard drive, and others. The program implements a function for measuring the sample being studied; to work with it, it is enough to specify the dimensions of the captured area. The program can measure object length, perimeter, radius/diameter, as well as various angles. The microscope is very easy to use and does not require special user training. The small size of the device makes it very convenient for home use. For the most effective work with the microscope, it is recommended to install it on a tripod (included). The microscope body has a rubberized coating, which is not only pleasant to the touch, but also prevents the device from slipping out of your hands.
- Microscope type: digital
- Attachment Type: Digital Display/PC Monitor
- Optics material: optical glass
- Magnification, x: 20–230
- Focus: manual, ranging from 0 mm to 150 mm
- Backlight: LED
- Brightness adjustment: yes
- Power Supply: DC 5V via USB 2.0 cable
- Number of megapixels: 2
- Video recording capability: yes
- Software, drivers: software for capturing and editing photos and videos, with object measurement function
- Output: USB 2.0
- System requirements: Windows 7/8/10 OS, Mac 10.6~10.10, CPU from P4 1.8 GHz, RAM from 512 MB, video card from 64 MB, USB 2.0 connector, CD-ROM
- Housing: rubberized black
- User level: for beginners
- Photo: *.jpeg, 1920x1080, 1280x720, 640x480
- Video: *.avi, 1920x1080, 1280x720, 640x480
- Illumination location: top
- Research method: bright field
