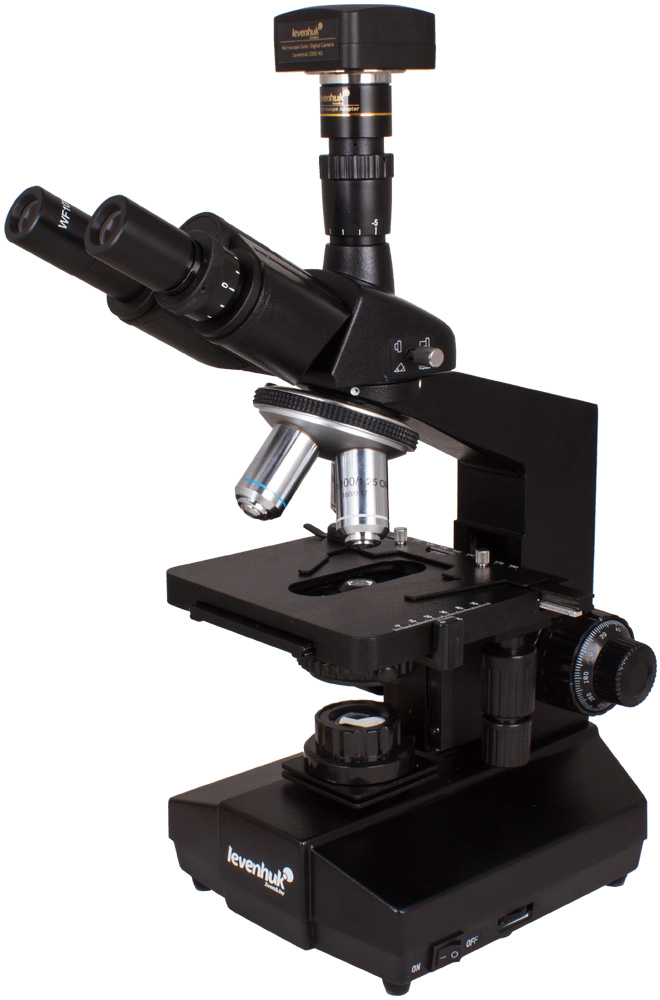

Levenhuk D870T Digital Microscope
Levenhuk D870T is a modern digital microscope with a wide range of applications. It is suitable not only for those who are engaged in scientific research in the field of medicine and biology, but also for specialists who deal with small particles and objects - collectors, criminologists, jewelers and many others. A powerful 8-megapixel camera will allow you not only to conduct visual observations, but also to take photographs of unique research for collection or further use. The microscope has a reliable design, and setting up the device does not require special knowledge and skills. All you need to do is turn on the camera, place the sample on the stage and adjust the focus using a special screw. The microscope provides magnifications in the range from 40 to 2000 times and is equipped with WF lenses: 4x, 10x, 40x, 100x, as well as paired eyepieces PLAN WF10x, PLAN WF20x with a wide field of view. The trinocular rotating head is very convenient for professional researchers who spend a long time studying various samples. This attachment allows you to look into the eyepieces with both eyes, which significantly reduces the load and does not damage your vision. The microscope comes with not only a digital camera, but also all the necessary software and drivers. The Levenhuk D870T dark-field microscope is compatible with Mac OS, Linux, Windows; a USB 2.0 port is required for connection.
- Microscope type: digital, light/optical, biological
- Attachment type: trinocular
- Optics material: optical glass
- Nozzle: 360° rotatable
- Eyepiece tilt angle: 30°
- Magnification, times: 40–2000
- Eyepiece tube diameter, mm: 23.2
- Eyepieces: paired PLAN WF10x, PLAN WF20x
- Lenses: PLAN WF: 4x, 10x, 40x, 100x (oil)
- Revolving device: for 4 lenses
- Focus: fine: 0.002 mm coarse: 25 mm
- Backlight: halogen
- Brightness adjustment: yes
- Power supply: 220V/50Hz
- Number of megapixels: 8
- Sensing element: 1/2.5
- Pixel size, microns: 1.67x1.67
- Sensitivity, volts per luke-second at a wavelength of 550 nm: 0.31
- Video recording capability: yes
- Frame rate: 1.9 fps at 3264x2448 resolution 8 fps at 1600x1200 resolution 27 fps at 800x600 resolution
- Dynamic range, dB: 65.2
- Place of use: eyepiece tube, instead of eyepiece
- Spectral range, nm: 380–650 (built-in IR filter)
- Exposure Method: ERS (Electronic Instant Photography)
- White balance: auto/manual
- Exposure control: auto/manual
- Software, drivers: USB 2.0 driver, program for working with Levenhuk camera
- Output: USB 2.0 port
- System requirements: Mac OS 10.6-10.10, Linux 2.6*, Windows XP/Vista/7/8/10 (32 and 64 bit), processor up to 2.8 GHz Intel Core 2 or higher, USB 2.0 port
- Camera dimensions: 27.2x40 mm
- Camera power supply: via USB 2.0 cable
- Photo: *.jpg, *.bmp, *.png, *.tif, *.gif, *.psd, *.ico, etc.
- Video: *wmv, *h264, *avi (recording); *wmv, *asf, *avi, *mp4, *m4v, *3gp, *3g2, *3gp2, *3gpp, *mov, *mkv, *flv, *rm, *rmvb, *h264, *h265 (read)
- Purpose: laboratory/medical
- Illumination location: bottom
- Research method: dark field, bright field
- Digital camera included: yes
