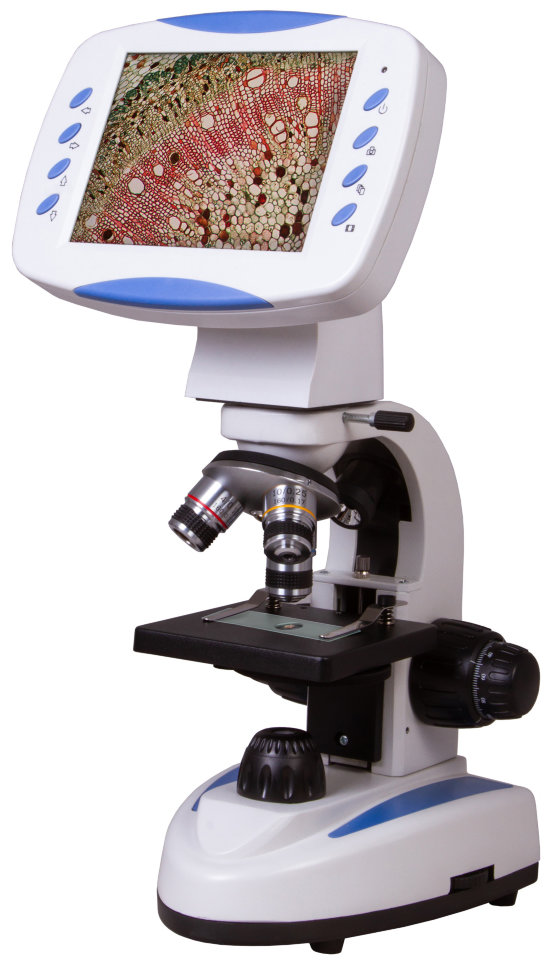

Levenhuk D80L LCD Digital Microscope
Levenhuk D80L LCD Digital Microscope is a biological microscope for bright field observations. It has a visual attachment with a 2 megapixel digital camera and an LCD screen, which makes working with the device more convenient. The microscope can be used not only for visual observations, but also for photo and video recording, as well as transferring images from the lens to an external device. Levenhuk D80L LCD is an excellent choice for studying any biological samples of any degree of transparency at a magnification of 40 to 1600 times. The microscope uses achromatic optics, which provides clear and detailed images across the entire field of view. Combined illumination - LEDs are located above and below the object stage. The brightness of the backlight can be adjusted. The lighting system is also complemented by a condenser with an aperture disk, which allows for more precise lighting adjustments. The object table is equipped with classic clamps. To control camera functions, buttons on the body are used - they are located next to the LCD screen. Here you can select photo or video mode, view the footage and much more. On the back wall there are connectors for connecting to external devices and a port for a memory card. All optical elements of the microscope are made of glass, the body is made of metal.
- Microscope type: digital, biological
- Nozzle type: digital display
- Optics material: optical glass
- Screen: 5.6 inch color LCD
- Maximum resolution: 1600x1200 pixels
- Magnification, times: 40–1600
- Lenses: achromatic: 4x, 10x, 40x
- Revolving device: for 3 lenses
- Stage, mm: 90x90, with clamps
- Condenser: N.A. 0.65
- Aperture: Aperture disk (6 holes)
- Focusing: coaxial, coarse (15 mm) and fine (0.002 mm)
- Case: metal
- Backlight: LED
- Brightness adjustment: yes
- Backlight type: with collector, LED 0.2 W
- Number of megapixels: 2
- Sensing element: 1/3
- Pixel size, microns: 2.8
- Sensitivity, volts per lux-second at a wavelength of 550 nm: yes
- Video recording capability: yes
- Frame rate: 30
- Place of use: support stand
- Spectral range, nm: 400–950
- White balance: auto
- Exposure control: auto
- Output: SD card connector, AV connector, miniUSB connector, power cable connector
- System requirements: Windows 7 and below
- Camera power supply: 5V, 1A via AC adapter
- Photo: *.jpg
- Video: *.avi
- Purpose: school/educational
- Backlight location: combined
- Research method: bright field
- Power source: 3 AA batteries or 110–220 V, via AC adapter
- Package size: 36 × 33 × 38 cm.
- Package weight: 3.4 kg.
