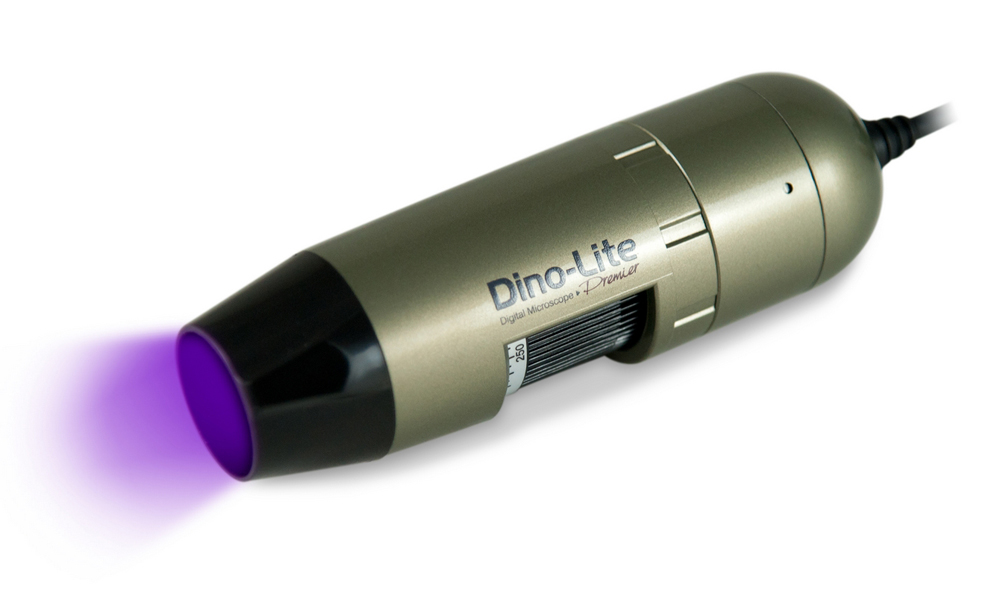

Digital microscope Dino-Lite AM4113FVT (ultraviolet)
The Dino-Lite AM4113FVT digital microscope is a convenient modern device for studying opaque objects in the ultraviolet range. This model is useful in forensic science, for example, to determine the authenticity of documents or banknotes. In addition, the microscope can be used for medical purposes: ultraviolet illumination allows you to diagnose some types of dermatological diseases. The device provides a wide range of magnifications. The lens is made of special glass. Eight ultraviolet LEDs are used to illuminate the preparations; the spectral range is 390–400 nm. An emission filter eliminates returning ultraviolet radiation, resulting in images in natural colors. To improve picture quality, you can also use the standard infrared filter. The device provides magnification in the range of 10–70 times. In addition, it can be used to study objects at a magnification of 200x. The built-in 1.3 megapixel digital camera is used to capture enlarged images. The microscope is connected to the computer, and the image is displayed on the monitor. The kit includes special software for working with images. Research results can be saved in various photo and video formats. The microscope is available in a lightweight and durable composite housing.
- Microscope type: digital
- Attachment Type: Digital Display/PC Monitor
- Optics material: optical glass
- Magnification, times: 10–200
- Working distance, mm: 2.1–48.7
- Housing: composite material
- Backlight: LED
- Power source: USB 2.0 cable
- Light filters: emission filter 400 nm, infrared filter >650 nm
- Number of megapixels: 1.3
- Maximum resolution: 1280x1024
- Sensing element: CMOS
- Video recording capability: yes
- Frame rate: 30 fps
- Spectral range, nm: 390–400
- Software, drivers: DinoCapture 2.0 (Windows), DinoXcope (Mac OS); codecs DirectShow, UVC
- Output: USB 2.0
- System requirements: Windows XP/Vista/7/8, Mac OS 10.4 and higher
- Additional: Complies with CE, FCC, ROHS standards
- Photo: *.bmp, *.gif, *.jp2, *.jpc, *.jpeg, *.jpg, *.mng, *.pcx, *.pgx, *.png, *.pnm, *.ras, *.tga, *.tif, *.wbmp
- Video: *.flv, *mov, *.swf, *.wmv
- Purpose: for applied work
- Illumination location: top
- Research method: ultraviolet
- Dimensions, mm: 105x32
- Weight, kg: 0.105
