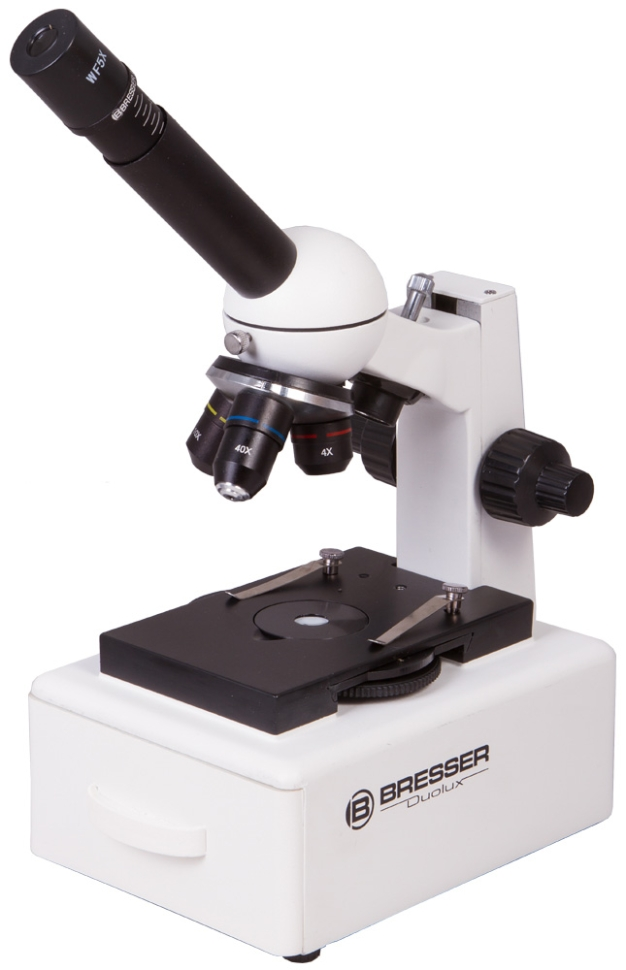

Digital microscope Bresser Duolux 20x-1280x
Bresser Duolux 20x-1280x microscope, which can be used both in the educational process and in the home laboratory. The microscope is designed to study microscopic specimens in transmitted and reflected light using the bright field method. High-quality coated optics provide high-contrast images, and the metal body ensures high reliability of the microscope. The ability to use a digital camera to display images on a computer monitor will allow you to show microscopic specimens simultaneously to a large group of people or create an archive of microphotographs. The microscope allows you to obtain magnifications in the range of 20-1280x. Thanks to the installation of lenses on the turret head, it is possible to quickly change the magnification used during operation. The microscope eyepiece is tilted 45° to the vertical and rotates 360°, which allows you to select the most convenient eyepiece position for work. All optical components of the microscope are made of high-quality optical glass and have a multi-layer antireflection coating, which ensures good image quality over the entire field of view. In addition to the usual eyepieces for visual observations, the microscope comes with a digital camera, which is installed instead of the eyepiece and is used to display images from the microscope on a computer screen. This makes it possible to show an image simultaneously to a large group of people or create a home archive of microimages. It is also easy to objectively compare the results of different observations using photographs. The microscope is equipped with two LED illuminators: the upper one is used for studying microscopic specimens in reflected light, and the lower one is used in transmitted light. Lighters can be turned on individually or simultaneously. The advantage of such a system (compared to illumination using a mirror) is that the brightness of the illumination is independent of the level of illumination in the room where the microscope is installed. The microscope has separate mechanisms for coarse and fine focusing of the image. The focusing mechanisms have a smooth, soft motion, without jerks or backlash. The microscope body is made of metal, which ensures its reliability and durability. There is a built-in accessory drawer at the base of the microscope body.
- Microscope type: biological, digital
- Purpose: educational
- Maximum resolution: 640x480
- Magnification, times: 20 - 1280
- Optics material: optical glass
- Attachment type: monocular
- Rotation of the eyepiece: yes, 360°
- Eyepiece tilt angle: 45°
- Eyepieces: 16x, 5x
- Lenses: 4x/0.10, 10x/0.25, 40xs/0.65
- Revolving device: for 3 lenses
- Stage: with clamps
- Aperture: Aperture disk
- Focus: Coaxially positioned coarse and fine focusing knobs
- Case material: metal
- Backlight type: LED
- Backlight location: combined
- Brightness adjustment: yes
- Backlight power supply: 2 AA batteries, mains 220 V/50 Hz
- Network adapter included: yes
- Batteries included: yes
- Research method: bright field
- Experiment kit included: yes
- Case included: dust cover
- Barlow lens included: double
- Digital camera included: MicrOkular II
- Place of use: instead of eyepiece
- Number of megapixels: 0.3
- System requirements: Windows XP/Vista/7/8/10 (32 and 64 bit)
- Country of origin: China
- Manufacturer's warranty: 10 years
- Package size: 30.5 × 23.5 × 20.5 cm
- Package weight: 3.84 kg
