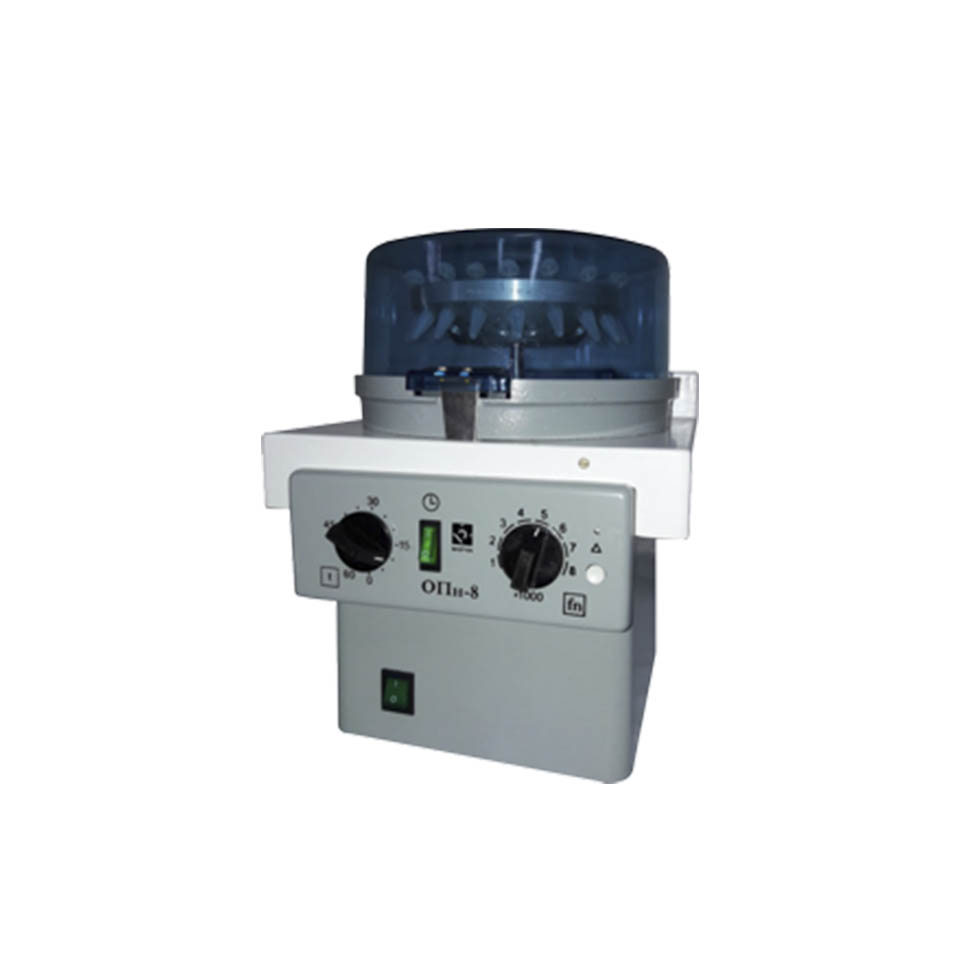

Laboratory medical centrifuge OPN-8 RU180L
Medical laboratory centrifuge OPN-8 (RU180L). A modern analogue of a centrifuge - OPN-8M! Portable tabletop centrifuge of periodic action. Designed to separate heterogeneous liquid systems with a density of up to 2 g/cm³ in the field of centrifugal forces in special rotors. The centrifuge is used in the practice of laboratory diagnostics and for research in the field of medicine. The centrifuge drive consists of an electric motor, a cone shaft, a speed sensor and feedback. The drive is connected to the casing using shock-absorbing elements. The control panel consists of a rotary speed setting switch controlled by a handle, a clock mechanism (for automatically setting the operating time of the centrifuge) controlled by a handle, a centrifuge power switch and a clock mechanism switch. Elements of an electronic speed control circuit and a pocket with fusible inserts are mounted on the base of the centrifuge. In the working chamber, a rotor is installed on a conical shaft. The working chamber of the centrifuge is closed with a transparent lid. The power supply to the centrifuge is turned off automatically after a specified cycle, or manually using a power switch located on the control panel. The centrifuge is equipped with a timing mechanism that provides regulation of operating time. The centrifuge is equipped with a RU180L rotor: Number of tubes and maximum volume, ml 4×25 4×10 8×5 Maximum operating speed, rpm 8000 Maximum separation factor 6600 Maximum volume of centrifugate, ml 180 Rotor weight, kg 3 Has a security system that provides: blocking the rotation of the rotor when the cover is open; blocking the opening of the lid until the rotor stops completely. Manba: https://www.nv-lab.ru/catalog_info.php?ID=6308
- Feature: Parameter
- Maximum continuous operation time, no less, min: 180
- Break time after 180 minutes of continuous work, not less, min: 60
- Centrifuge rotor speed, rpm: from 1000 to 8000
- Volume, ml: 180
- Permissible reduced deviation from the maximum specified rotation speed, no more, %: ±10
- Rotor acceleration time to maximum operating speed, no more, min: 8
- Overall dimensions H×W×D, no more, mm: 370×300×280
- Weight of OPN-8 centrifuge with a set of spare parts, no more, kg: 18
- MTBF, no less, hours: 2000
