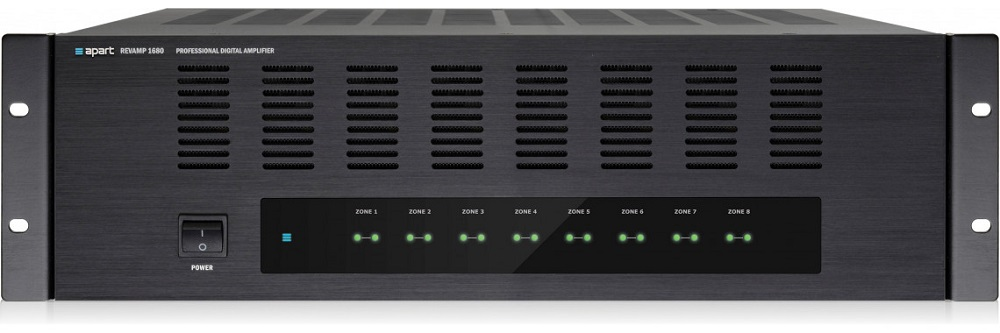

Broadcast mixer-amplifier Biamp REVAMP1680 Apart
APART REVAMP1680 is a professional digital power amplifier with a rated output power of 16 x 80 W into a 4 ohm load, and can also be bridged with a rated output power of 8 x 160 W into an 8 ohm load. This 3U rackmount amplifier is equipped with dual analog power supplies with toroidal power transformers. The amplifier features extremely low power consumption in standby mode - less than 0.5 W. Among the useful features of APART REVAMP1680 is a switching mode power supply with multiple automatic power on and off modes. It allows you to turn the amplifier on or off based on a signal at the control input or audio input. The control input is useful when you want to automatically turn on the power amplifier based on an external AC or DC control signal coming from the sound system. The amplifier is turned on as long as the appropriate voltage is present at the control input. Instead, you can set the power-on mode switch to the Audio Trig position: then the amplifier will automatically turn on when there is a sufficiently strong signal at the audio input and turn off after a few minutes of silence. This amplifier is equipped with two stereo bus inputs with loop-through capability. Stereo bus inputs are convenient to use when you want to listen to the same audio signal in different output zones: this design allows you to use fewer audio cables and greatly speeds up installation. With low standby power consumption and easy integration into any sound system, the APART REVAMP1680 will soon become your favorite multi-channel power amplifier.
- Depth (mm): 421
- Frequency response (Hz): 20 - 30k
- 19" Rack Mount: Yes
- Height (U): 3
- Supply voltage (VAC): 115 - 230
- 100V output: No
- Low impedance output: Yes
- Max. power consumption (W): 1350
- Output power, 4 ohms (W): 16 x 80
- Output power, 8 ohms (W): 16 x 40
- Bridged Output Power (W): 8 x 160
- Minimum load impedance (ohms): 4
- Gain channels: 16
- Linear unbalanced inputs: 20
- Cooling system: Convection
- Volume control: Rear panel
