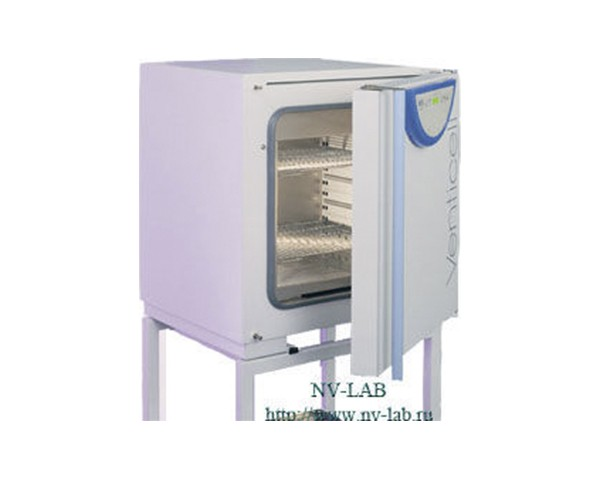

Thermostat VENTICELL VC 55 ECO
Thermostat VENTICELL VC 55 ECO Precise and fast laboratory dryer chamber volume 55 liters temperature range from +10 °C above ambient temperature environments up to 250 °C / 300 °C Patented forced air circulation system in the chamber ensures homogeneous temperature distribution in all processes of drying, heating and sterilization of materials in laboratories high operating comfort, precise temperature control and short time to equalize the temperature in the chamber after opening the door thanks to the increased speed and accuracy of all installation processes and maintaining a uniform temperature, operation is economical; The dryer is designed primarily for the processing of highly humidified materials, as well as for complex and precise tests and processes. standard version with Fuzzy-Logic microprocessor control system, controls are located on the membrane keyboard, process information is displayed on the LED display wide range of equipment and accessories to choose from output for connecting a printer or PC possibility of validation (IQ, OQ) Manba: https://www.nv-lab.ru/catalog_info.php?ID=1870
- Feature: Parameter
- Volume: 55 l
- Depth: 390 mm
- Width: 400 mm
- Height: 350 mm
- Standard equipment: 2 pcs.
- Usable area(width×depth): 380×3355
- Shelf guides: 4 max.
- Distance between guides: 70 mm
- total bearing capacity: 50kg/cabinet
- Shelf load-bearing capacity: 20 kg/shelf
- Number of doors: 1 piece
- Depth: 640 mm
- diameter of the ventilation pipe external/internal: 52/49 mm
- Width: 620 mm
- height (incl. legs N and rollers K): 680(N) mm
- Depth: 730 mm
- Width: 700 mm
- depth (incl. tray): 880 mm
- Gross: 66 kg
- Net: 55 kg
- from 10°C above temp. ambient up to: 250°C
- in time, approx (±): 0.4°C
- in space, approx.(±)% of reached temperature: 1%
- Heating time to 250°C with the damper closed: 49 min
- heat radiated into the environment at 250°C: 590W
- Air exchange rate at 150°C: 45 per hour
- Max power consumption: 1.3 kW
- Voltage: 230 V
- current: 5.6 A
- power consumption in standby mode (stand by): 5 W
