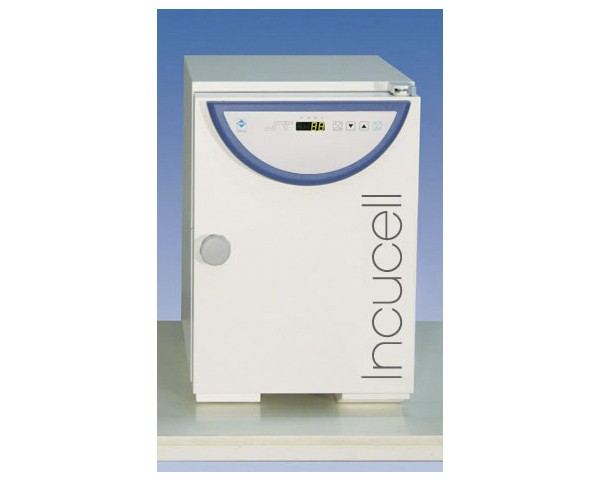

Thermostat INCUCELL 22 - Standard
Thermostat INCUCELL 22 - Standard with natural circulation and precise regulation – laboratory incubator chamber volume 22 liters temperature range from 5 °C above ambient temperature environments up to 70 °C/99.9 °C features quiet operation and quiet air movement in the work space high operating comfort, precise temperature control and short time to equalize the temperature in the chamber after opening the door high-quality and safe drying, heating and maintaining uniform temperature of common laboratory materials in laboratories and various industries; the devices are suitable for the safe processing of microbiological cultures standard version with Fuzzy-Logic microprocessor control system, controls are located on the membrane keyboard, process information is displayed on the LED display wide range of equipment and accessories to choose from output for connecting a printer or PC possibility of validation (IQ, OQ) Technical Parameters Interior - stainless steel DIN 1.4301 volume 22 l Depth 320 mm width 240 mm height 295 mm Mesh shelves Standard equipment 2 pcs Usable area(width*depth) 185*265 Shelf guides 4max number Distance between guides 60 mm Maximum permissible load of mesh shelves*) full bearing capacity 25 kg/cabinet shelf load-bearing capacity 10 kg/shelf Number of doors 1 piece External dimensions Depth 580 mm diameter of the ventilation pipe external/internal 52/49 mm width 406 mm height (incl. legs N and castors K) 604(N) mm Packaging - dimensions (three-layer cardboard) Depth 665 mm width 465 mm depth (incl. tray) 665vv Weight gross 36 kg net 31 kg Operating temperature**) Start of regulation 99.9 Temperature deviations according to DIN 12 880, part 2, from operating temperature with the ventilation flap and door closed in time, approx(±) 0.4°C in space, approx (±) 1.1°C time to warm up to 37°C with the damper closed 70 min heat radiated into the environment at 37°C 20 W Short air exchange at 150°C 5 per hour Electrical parameters - network 50/60 Hz Max power consumption 0.24 kW Voltage 230 V current 1.1 A power consumption in standby mode (stand by) 5 W *) The mesh shelves can be loaded with approx. up to 50% of the area, as possibilities so that uniform air movement is ensured inside the camera. Note: All technical data are given at ambient temperature. environment 22 °C and voltage fluctuation ± 10% (unless otherwise specified). **) Standard version - up to 70 °C, optional version - up to 99.9 °C. Note: All technical data are given at ambient temperature. environment 22 °C and voltage fluctuation ± 10% (unless otherwise specified). Changes in design and execution are not excluded. Manba: https://www.nv-lab.ru/catalog_info.php?ID=1876
