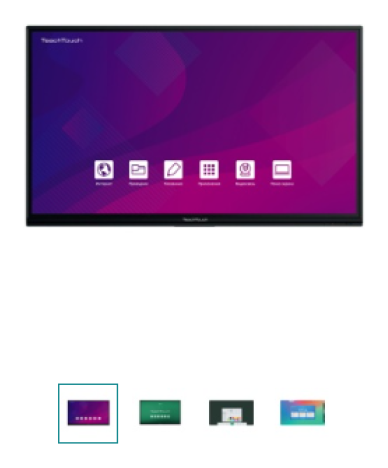

Interactive panel TeachTouch 6.0 75" TT60-75U
Interactive panel TeachTouch 6.0 75" TT60-75U - a modern solution for business and education, combines unsurpassed capabilities with an intuitive interface “everything in the palm of your hand.” Make learning inspiring, TeachTouch 6.0 is the perfect education solution that meets high standards, is easy and intuitive to use.
Price on request
- Screen diagonal, inch 75
- Screen matrix resolution, pixel 3840x2160
- Static screen contrast 1200:1
- Dynamic screen contrast 4000:1
- Matrix response time (Gray To Gray), ms 8
- Color, bit 10 (1.07 billion)
- Matrix backlight type D-LED
- Useful service life of the screen matrix backlight (according to IES LM-80-08 standard), hour 50,000
- Touch sensor type Infrared
- Maximum number of touches (Windows), pcs. 20
- Maximum number of touches (Android), pcs. 10
- Sensor displacement accuracy, mm 1.5
- Ability to identify touch objects (diameter) +
- Front USB 3.0 Type A, pcs. 2
- HDMI 2.0 Video input, pcs. 3
- HDMI 2.0 Video output, pcs. 1
- VGA (DE-15F) Video input, pcs. 1
- Mini Jack Audio (TRS 3.5) Audio input for VGA, pcs. 1
- TRS 3.5 Audio output (headphones), pcs. 1
- USB 3.1 Type C (V-A-D-PD), pcs. 1
- Power supply via USB 3.1 Type-C PD port, W. 65
- USB 3.0 Type A, pcs. 2
- USB 2.0 Type A, pcs. 1
- USB 2.0 Type B (Touch), pcs. 2
- S/PDIF Optical input, pcs. 1
- RS-232C (DE-9F), pcs. 1
- LAN (1XRJ45 10/100/1000 BaseT), pcs. 1
- LAN Sharing (1XRJ45 10/100/1000 BaseT) Windows-Android +
- WI-Fi (802.11a/b/g/n/ac) +
- Slot type for embedded PC (MT/OPS/OPS-C) OPS
- Bluetooth Version 4.2
- Number of speakers of the acoustic system, pcs. 2
- Total speaker power (RMS), W 32
- Speaker direction Down
- Built-in fingerprint scanner +
- Built-in induction system +
- Number of CPU cores (Android) central processor, pcs. 4
- Operating system Android 9.0
- Volume of RAM, GB 4
- Volume of permanent memory, GB 32
- Light sensor +
- Ability to show device screens +
- Number of displayed device screens, pcs. 6
- Number of markers included, pcs. 2
- OSD menu language Eng/Rus
- Mount (VESA 600x400
- Power supply, V 220
- Power consumption, W 350
- Power consumption in standby mode, W 0.5
- Width, mm 1710
- Height, mm 1020
- Depth, mm 86
- Net weight, kg 51.75
- Packaging width, mm 1860
- Package height, mm 1170
- Packing depth, mm 280
- Gross weight, mm 70.35
