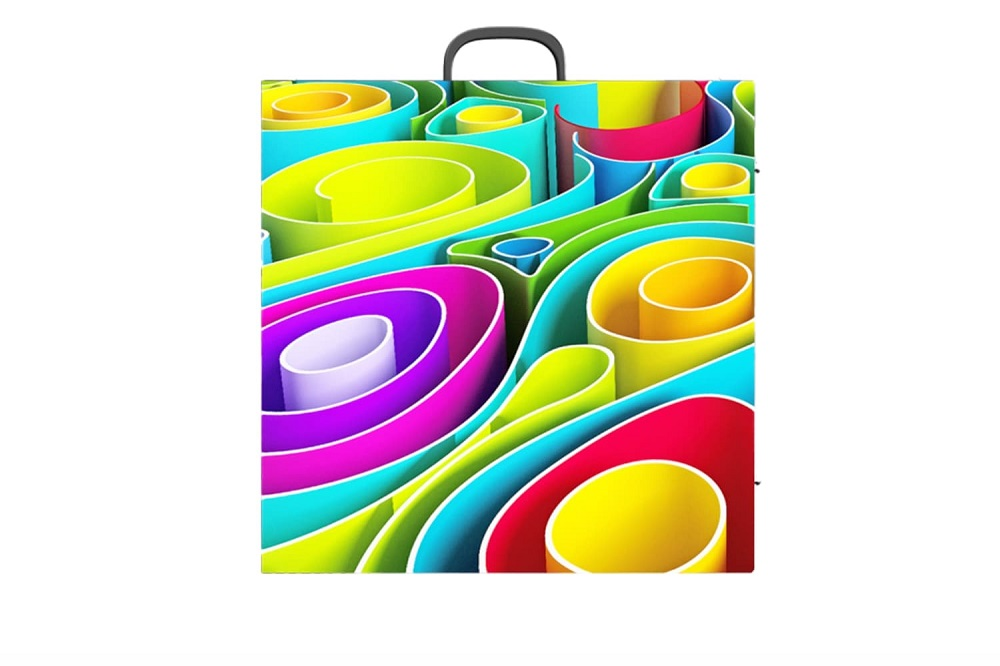

LED screen Visualeader TG2
Designed for indoor use, the Visualeader TG2 LED display combines high pixel density thanks to a fine 2mm pitch and the reliability of GOB (Glue on Board) technology. The aluminum frame provides a lightweight yet durable design, while pendant mounting adds flexibility to installation. SMD 1515 LEDs contribute to high image quality, making this screen an ideal choice for a variety of indoor applications.
Price on request
- Type: LED cabinet assembly
- Installation type: Indoor
- Cabinet resolution, pixels: 250 x 250
- Module resolution, pixels: 125 x 125
- Diode type/configuration: SMD 1515
- Pixel pitch, mm: 2
- Static contrast: 3000:1
- Pixel density per m2: 250000
- Brightness, nit: 600
- Viewing Angle: H:140°,V:140°
- Suspended mounting possible: Yes
- Color temperature (default), K: 6500
- Color temperature (setting range), K: ≤9300
- LED working life, h: 100000
- Refresh rate, Hz: ≥3840
- Operating temperature: -20°C to 50°C
- Energy consumption (Max), W/m2: 580
- Energy consumption (Max), W/Unit: 145
- Protection class, IP: IP65 Front / IP54 Rear
- Construction Material: Die Casting
- Service: Front/Rear
- Cabinet length, mm: 500
- Cabinet width, mm: 500
- Cabinet depth, mm: 85
- Cabinet weight, kg/unit: 8.8
- Cabinet weight, kg/m2: 36
- Module length, mm: 250
- Module width, mm: 250
- Module depth, mm: 18
- Module weight, kg: 1
