Digital Signage

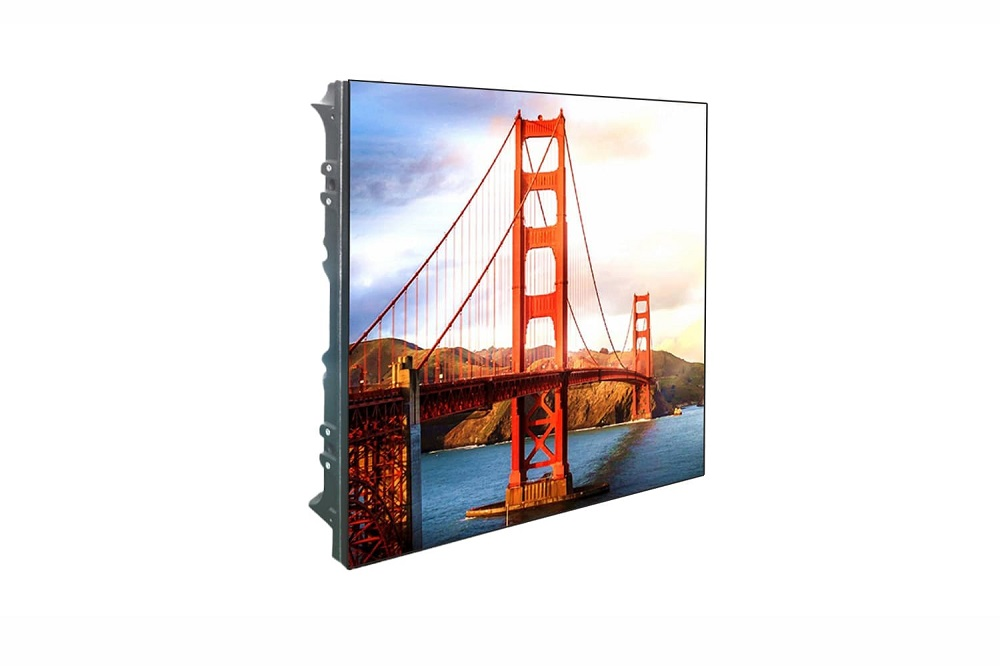

Visualeader L2.6 Kinglight LED Screen
The Visualeader L2.6 LED screen from the L series is designed for indoor use and features high image quality and ease of maintenance. Kinglight full-color LED panels and magnetic modules provide ease of installation and maintenance. The screen has a pixel pitch of 2.6 mm and a density of 147456 pixels per m², which allows you to achieve high image clarity.
Price on request
- Type: LED cabinet assembly
- Installation type: Outdoor
- Cabinet resolution, pixels: 192 x 192
- Module resolution, pixels: 96 x 96
- Pixel pitch, mm: 2.6
- Diode type/configuration: SMD 2020
- Static contrast: 3000:1
- Brightness, nit: 800
- Pixel density per m2: 147456
- Viewing Angle: H:140°,V:140°
- Suspended mounting possible: yes
- Color temperature (default), K: 6500
- Color temperature (setting range), K: ≤9300
- LED working life, h: 100000
- Refresh rate, Hz: ≥3840
- Operating temperature: -20°C to 50°C
- Energy consumption (Max), W/m2: 600
- Energy consumption (Max), W/Unit: 150
- Protection class, IP: IP30
- Construction Material: Die Casting
- Service: Front/Rear
- Cabinet length, mm: 500
- Cabinet width, mm: 500
- Cabinet depth, mm: 75
- Cabinet weight, kg/unit: 6.8
- Cabinet weight, kg/m2: 28
- Module length, mm: 250
- Module width, mm: 250
- Module depth, mm: 18
- Module weight, kg: 0.7
