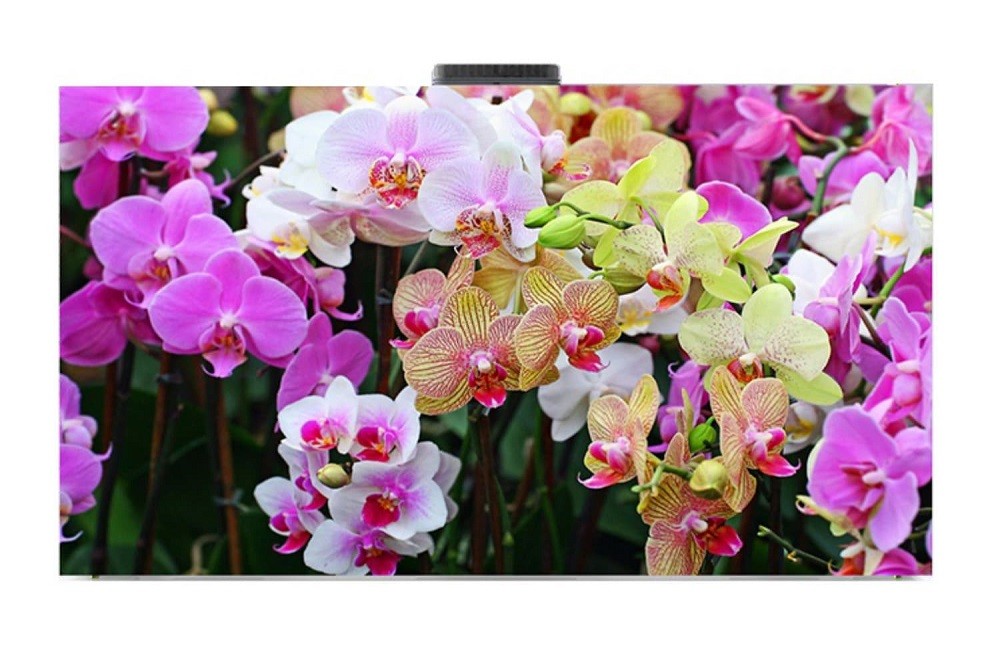

Visualeader FM4 Kinglight LED Screen
Visualeader FM4 are indoor LED panels designed for fixed installation. The panels are equipped with SMD 2020 LEDs and have a pixel pitch of 4 mm, which ensures high image clarity at medium distances. Frontal service simplifies the process of replacing and repairing modules. The body of the panels is made of iron, which ensures the strength and durability of the structure.
Price on request
- Type: LED cabinet assembly
- Installation type: Indoor
- Cabinet resolution, pixels: 256 x 256
- Module resolution, pixels: 64 x 32
- Pixel pitch, mm: 4
- Diode type/configuration: SMD 2020
- Pixel density per m2: 250000
- Brightness, nit: 1000
- Static contrast: 3000:1
- Cabinet length, mm: 1024
- Viewing Angle: H:140°,V:140°
- Color temperature (default), K: 6500
- Color temperature (setting range), K: ≤9300
- Operating temperature: -20°C to 50°C
- Energy consumption (Max), W/m2: 580
- Energy consumption (Max), W/Unit: 610
- Protection class, IP: IP30
- Construction Material: Iron
- Service: Front/Rear
- LED working life, h: 100000
- Refresh rate, Hz: ≥3840
- Cabinet width, mm: 1024
- Cabinet depth, mm: 110
- Cabinet weight, kg/m2: 27
- Module length, mm: 256
- Module width, mm: 128
- Module depth, mm: 15
- Module weight, kg: 0.4
