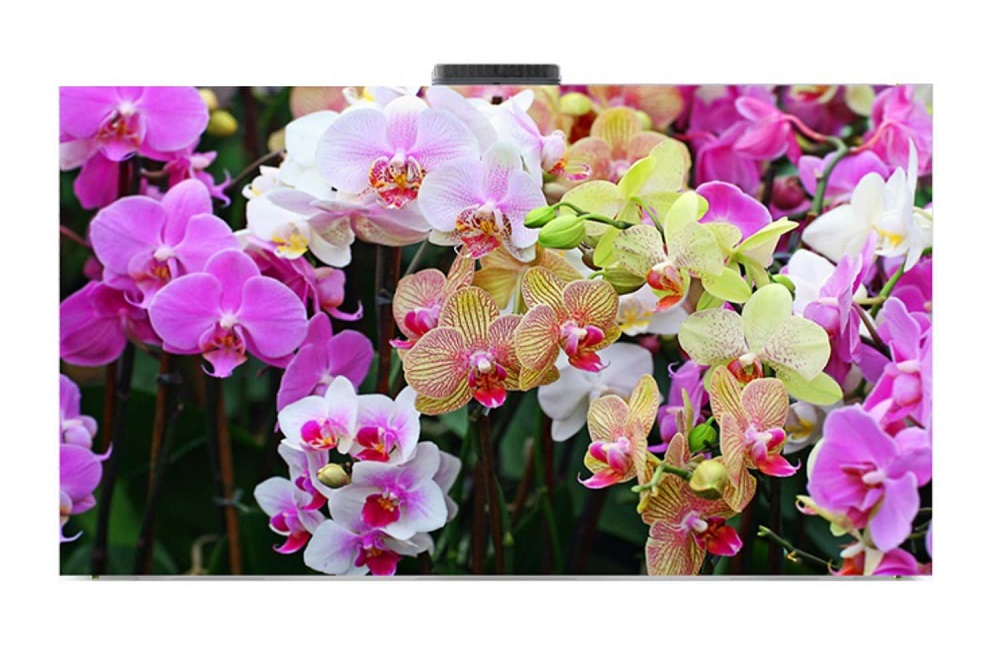

LED screen Visualeader CD16/33(DIP)
The Visualeader CD16/33(DIP) LED screen is designed for outdoor use and belongs to the Curtain series, making it ideal for creating impressive visual effects on building facades. The screen has a pixel pitch of 16.67 mm and a brightness of 6000 nits, which ensures excellent visibility even in bright sunlight. The 120°/60° viewing angle provides a wide horizontal view and a standard vertical view, suitable for installation on high-rise buildings. Front service and lightweight aluminum housing make installation and maintenance easy, ensuring the screen's durability and reliability in all weather conditions.
Price on request
- Type: LED cabinet assembly
- Installation type: Outdoor
- Diode type/configuration: DIP346 1R1G1B
- Pixel pitch, mm: 16.67
- Cabinet resolution, pixels: 60x15
- Module resolution, pixels: 60 x 3
- Pixel density per m2: 1800
- Brightness, nit: 6000
- Static contrast: 3000:1
- Viewing Angle: 120°/60°
- Color temperature (default), K: 6500
- Color temperature (setting range), K: ≤9300
- Protection class, IP: IP65
- Construction material: Aluminum
- Service: Frontal
- LED working life, h: 100000
- Refresh rate, Hz: 1920
- Operating temperature: -30 to 50℃
- Energy consumption (Max), W/m2: 480
- Energy consumption (Max), W/Unit: 120
- Features: Curtain series (Media facades)
- Cabinet height, mm: 1000
- Cabinet length, mm: 500
- Cabinet depth, mm: 68
- Cabinet weight, kg/unit: 5.5
- Module length, mm: 1000
- Module width, mm: 100
- Module depth, mm: 10
- Module weight, kg: 0.3
