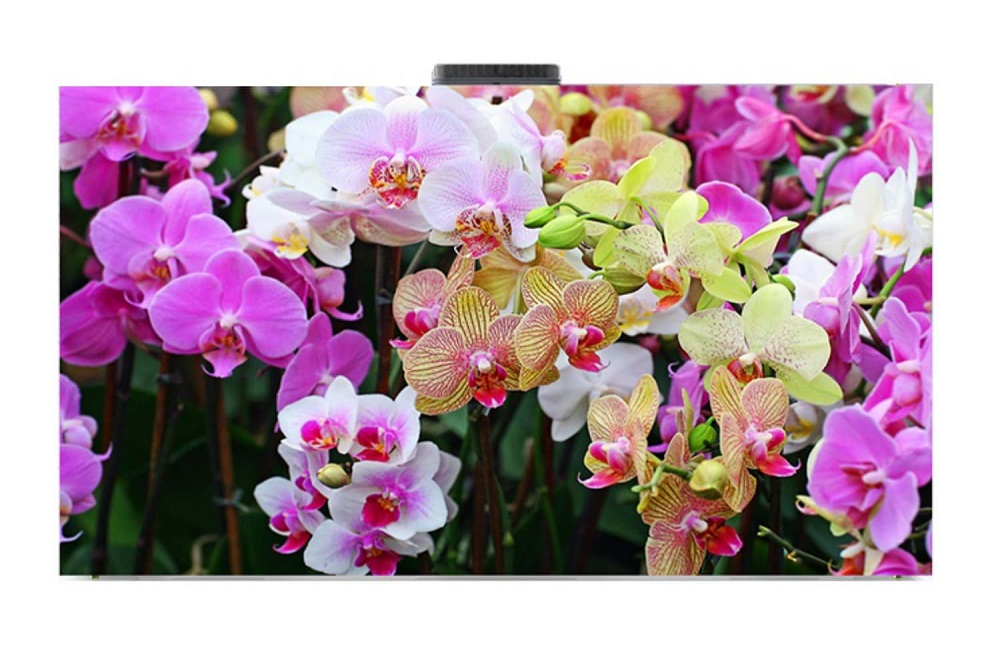

LED screen Visualeader CD16/16(DIP)
The Visualeader CD16/16(DIP) LED screen is designed for outdoor use and is part of the Curtain series (media facades). The screen has a pixel pitch of 16.67 mm and a pixel density of 3600 per m², which ensures high image quality. With 6,500 nits of brightness and 3,000:1 contrast ratio, the screen remains visible even in bright sunlight. The screen is made of aluminum and supports front service, making it easy to install and maintain. With a 120°/60° viewing angle, the screen provides a wide horizontal and standard vertical view, making it ideal for use on high-rise buildings.
Price on request
- Type: LED cabinet assembly
- Installation type: Outdoor
- Diode type/configuration: DIP346 1R1G1B
- Pixel pitch, mm: 16.67
- Cabinet resolution, pixels: 60x30
- Module resolution, pixels: 60 x 6
- Pixel density per m2: 3600
- Brightness, nit: 6500
- Static contrast: 3000:1
- Viewing Angle: 120°/60°
- Color temperature (default), K: 6500
- Color temperature (setting range), K: ≤9300
- Protection class, IP: IP65
- Construction material: Aluminum
- Service: Frontal
- LED working life, h: 100000
- Refresh rate, Hz: 1920
- Operating temperature: -30 to 50℃
- Energy consumption (Max), W/m2: 500
- Energy consumption (Max), W/Unit: 125
- Features: Curtain series (Media facades)
- Cabinet height, mm: 1000
- Cabinet length, mm: 500
- Cabinet depth, mm: 68
- Cabinet weight, kg/unit: 8.3
- Module length, mm: 1000
- Module width, mm: 100
- Module depth, mm: 10
- Module weight, kg: 0.5
