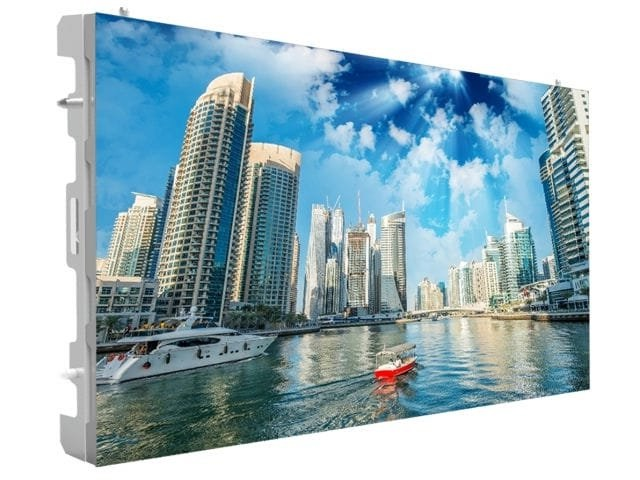

LED screen HIKVISION DS-D4218FI-CWFH/Ⅲ
LED screen HIKVISION DS-D4218FI-CWFH/Ⅲ. Seamless gluing of images horizontally and diagonally. Easily form standard 1920×1080 and 3840×2160 screens, providing high-definition image display. Automatic adaptation of signal sources to screens without the help of video processing equipment. Easily optimize low-resolution images by improving clarity, contrast and saturation using Pix Master technology. Dynamically enhance image parameters such as contrast, sharpness, saturation, color temperature and color gamut to make images more vibrant. 4K input at 30Hz and up to 4K output for a single device. Using a button on the controller of full-color LED screen modules to adjust brightness and switch the signal. Using the Hikvision remote control to navigate menus after accessing the external control unit. Automatic moisture removal to protect the LED board from damage when the device is stored in a humid environment or not used for a long time. Signal and power supply backup (optional) to maintain system reliability. Real-time temperature and voltage checking ensures safety when using the product. Using an LED screen controller to input HDMI, DVI and DP signals. Network interface output. Remote configuration via network service interface. Easy to disassemble the LED board, power supply and built-in signal reception sensor on the front side thanks to the modular structure of the blocks. Precise and reliable magnetic adsorption LED board design to prevent installation errors. The three-axis XYZ structure is designed to perfectly adjust the flatness of the entire screen. Quickly remove overly bright and dull lines without the need for professional equipment or complex operations.
- Pixel Configuration: SMD 3-in-1 LED
- Pixel pitch category: P1.8
- Pixel pitch: 1.875 mm
- Module layout: 2 × 4
- Dimensions: 600 × 337.5 × 50.9 mm (23.62 × 13.29 × 2.00″)
- Resolution: 320×180
- Area: 0.2025 m²
- Pixel density: 284444 dots/m²
- LED board housing: No housing
- Housing material: Aluminum-magnesium alloy
- Protection level: Front panel protection level IP60
- White balance brightness: 800 cd/m²
- Color temperature: Customizable, from 3000 to 10000 K
- Viewing Angle: Horizontal: 160°, Vertical: 160°
- Contrast ratio: ≥ 5000:1
- Brightness uniformity: ≥ 97%
- Frame rate: 60Hz
- Refresh rate: Up to 3840 Hz
- Color rendering: 281 trillion
- Power supply: AC 110 to 220 V ± 15%
- Max. power consumption: ≤ 345 W/m²
- Operating temperature: -10 to +40 °C
- Package dimensions: 796 × 484 × 192 mm (31.33 × 19.05 × 7.56″)
