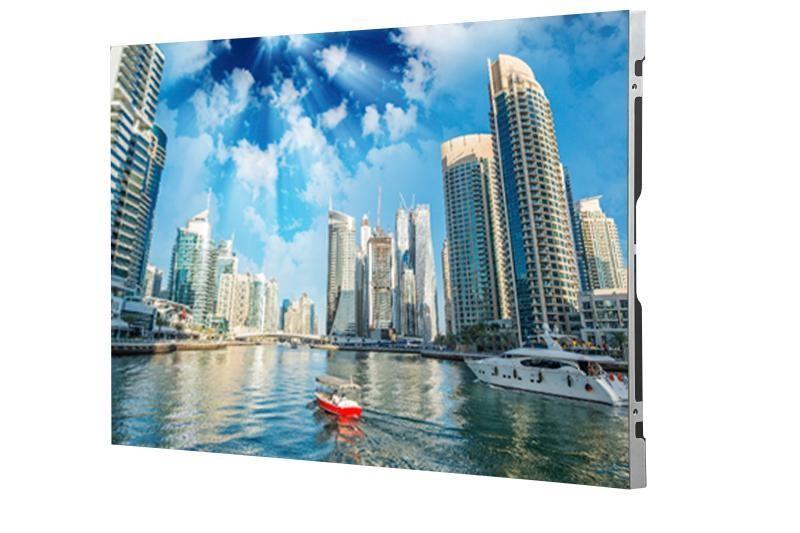

LED screen HIKVISION DS-D4215FI-CBFC
The Hikvision 54-inch fixed LED screen DS-D4215FI-CBFC comes in a slim molded housing that reduces the number and size of seams when combined.
Price on request
- Pixel Configuration: SMD LED
- Pixel pitch: 1.56 mm
- LED size: 1.2×1.2mm
- Size: 1200×675×55 mm
- Module layout: 2×8
- Resolution: 768×432
- Area: 0.81 m²
- Pixel density: 409600 dots/m²
- LED board housing: without housing
- Cabinet material: aluminum alloy
- Maintenance access: frontal
- Cabinet thickness: ≤ 0.2mm
- LED Encapsulation: MLS 1212
- Driver IC: ICND2163
- Control system, development company: HIK sending card
- Power specifications: Aoyuan 4.2V, 36 to 45A
- White balance brightness: 600 cd/m²
- Color temperature: 3000~10000
- Viewing angle: horizontal: 160°, vertical: 160°
- Brightness uniformity: ≥ 97%
- Color uniformity: ±0.003 Cx, Cy
- Contrast ratio: 3000:1
- Video input: HDMI
- Maximum load: 768×432
- Drive: DC drive
- Frame rate: 60Hz
- Refresh rate: up to 3840 Hz
- Gray level: up to 18 bits
- Contents: LED, chip, connecting steel sheet, power cable, network cable
- Power supply: AC 100~240V
- Max. power consumption: ≤ 500 W/m²
- Avg. power consumption: ≤ 200 W/m²
- Operating temperature: 0 °C... 40 °C
- Operating humidity: 10% ~ 60% (non-condensing)
- Gross weight: 21.5 kg
