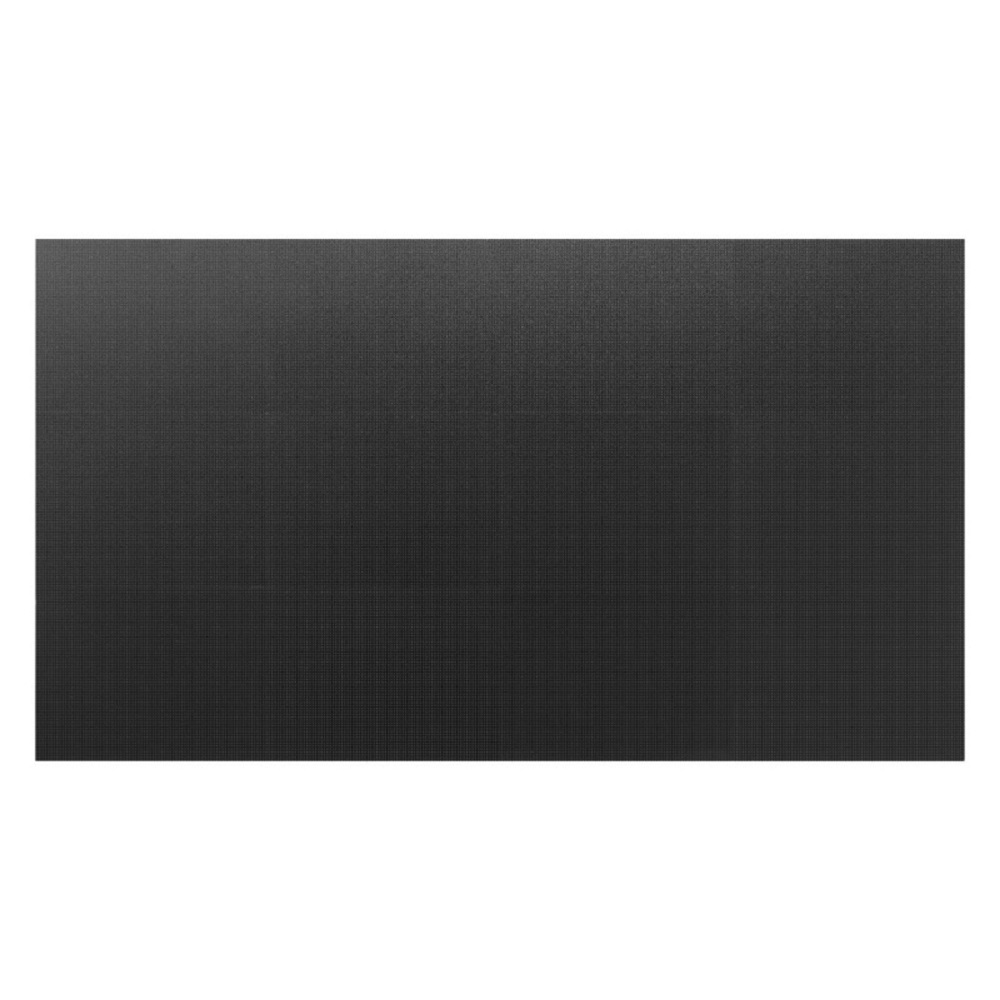

LED screen HIKVISION DS-D4207CI-ZWDB
Full color LED screen for indoor use HIKVISION DS-D4207CI-ZWDB.
Price on request
- Pixel Configuration: Flip COB Chip
- Pixel pitch category: P0.7
- Pixel pitch: 0.78 mm
- Module layout: 2 panels
- Dimensions: 600 × 337.5 × 45.6 mm
- Resolution: 768×432
- Area: 0.2025 m²
- Weight: 6.5 kg
- Pixel density: 1638400 dots/m²
- LED board housing: No housing
- Cabinet material: Die-cast aluminum
- Maintenance access: Front and rear panels
- Cabinet thickness: 0.1mm
- Protection level: Front panel protection level IP65
- White balance brightness: 600 cd/m²
- Color temperature: 3000 to 10000, customizable
- Viewing Angle: Horizontal: 160°, Vertical: 160°
- Contrast ratio: 15000:1
- Color uniformity: ≤ ± 0.003 Cx, Cy
- Brightness uniformity: ≥ 97%
- Drive: DC Drive
- Frame rate: 60Hz
- Refresh rate: Up to 3840 Hz
- Gray level: Up to 16 bits
- Color rendering: 281 trillion
- Power supply: AC 100 to 240 V (50 to 60 Hz)
- Max. power consumption: ≤ 470 W/m²
- Avg. power consumption: 157 W/m²
- Operating temperature: -10 to +40 °C
- Operating humidity: 10 to 80%
- Storage humidity: 10 to 80%
- Storage temperature: -40 to +60 °C
- Gross weight: 14.5 kg
- Package dimensions: 712 × 362 × 448 mm (1 pack of 4)
- Service life: 100,000 hours
