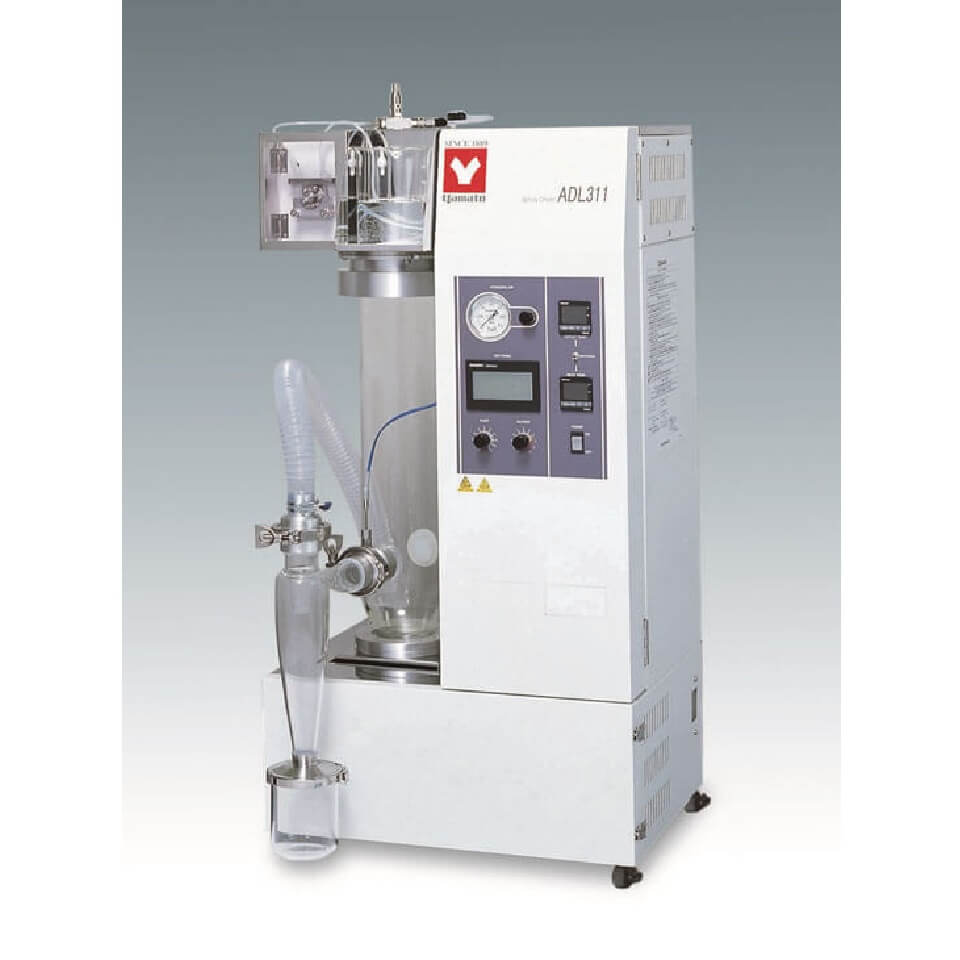

YAMATO spray dryer ADL311SA
YAMATO spray dryer ADL311SA Easy separation of sample powder from solutions, for samples dissolved in water and organic solvents. Features: Easy setup, easy control. Suitable for temperature sensitive samples. High temperature is not applied directly to dry fine powder. The result is a fine, contaminant-free powder that does not oxidize and contains minimal moisture. Direct drying of mortar or slurry into fine powder. No pre- or post-processes such as filtration, separation or grinding are required. Easy operation with one-touch removable mechanism for drying chamber and cyclone. Unique peristaltic pump, nozzle cooling mechanism, pulse jet mechanism and nozzle hammer for consistent spray drying. Manba: https://www.nv-lab.ru/catalog_info.php?ID=9472
- Parameter: Value
- Working material: Aqueous and organic solutions of samples
- Amount of water evaporated, ml/hour: 1300
- Spray system: Dual circuit nozzle, standard type 1A (0.4mm)
- Temperature control device setting range, °C:
- - at the entrance;
- - at the output: from 40 to 220;
- from 0 to 60
- Temperature control accuracy, °C: supply temperature ±1
- Drying air flow adjustment range, m3/min: from 0 to 0.7
- Spray air pressure adjustment range, MPa: from 0 to 0.3
- Liquid supply pump flow range, ml/min: from 0 to 26
- Spray channel flushing function: Sprays through the nozzle tip.
- Manual pulse injection system.
- Transfer to external devices: Input temperature.
- Output temperature.
- Temperature control device: Digital PID controller
- Touchpad: Feed.
- Heat.
- Fluid supply pump.
- Pulse jet switch.
- Error display.
- Control selection switch: Inlet temperature.
- Outlet temperature control switch.*
- Temperature sensor: K-type thermocouple (chromel-alumel)
- Heater (at 220 V / at 240 V), kW: 2.0 / 2.88
- Pumps::
- - liquid supply;
- - compressed air: Peristaltic pump of fixed volume;
- Optional air compressor
- Service socket: for stirrer: AC100V, 2A
- Suction fan: Bypass type
- Filters: Input filter.
- Exhaust filter.
- Injector cooling mechanism: Connector: nipple × 2, external Ø10.5 mm
- Diameter of the atomized air pipe, mm: Ø7
- Air pressure gauge: Bourdon tube: 0.3MPa
- Exhaust port diameter, mm: Ø50
- Safety Features: Inlet and outlet overheat detection.
- Reverse rotation mechanism for sample feeding.
- Blocks overcurrent and ground leaks.
- Detection of injector disconnection.
- External dimensions (W × D × H), mm: 580 × 420 × 1125 (without protrusions)
- Weight, kg: 80
- Power supply: 200V, 17A - 240V, 18A 50/60Hz
- Accessories included: silicone tubes (with stopper) × 3;
- exhaust duct (with one clamp) × 1;
- outlet temperature sensor;
- air spray tube;
- sample box;
- grounding to remove static electricity;
- braided hose 5 m "Tetron" (with two clamps)
- Required utilities: compressed air 0 ~ 294 kPa (up to 3 kgf/cm2) with a flow rate of 28 l/min
