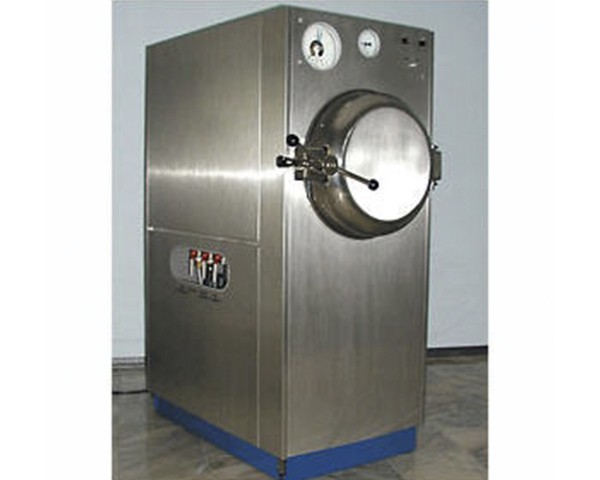

Horizontal steam sterilizer GK-100-3
Steam sterilizer GK-100-3 - Out of production! New modernized version - Steam sterilizer GK-100-3 (2016) Steam sterilizer GK-100-3 The sterilizer is intended for sterilization with saturated water steam under pressure of dressings, surgical linen, surgical instruments, surgical gloves and other medical supplies, the effect of steam on which does not change their functional properties. The sterilizer is used in inpatient medical institutions. The sterilizer has a horizontal cylindrical sterilization chamber that operates at excess pressure and is manually closed by a door. The source of steam is a steam generator with electric heaters. After sterilization, the material is dried in a sterilization chamber under high vacuum conditions; There is a capacitor for this purpose. The sterilization chamber, steam jacket, steam generator and condenser are made of high-alloy stainless steel. The sterilizer is equipped with a safety valve and a pressure and vacuum gauge. Control is carried out using control valves located on the side panel. The parameters of the sterilization modes are maintained automatically throughout the entire cycle. Specifications Working steam pressure in the steam generator and sterilization chamber, MPa 0.2+/-0.02 Type of current alternating three-phase Frequency, Hz 50 / 60 Voltage, V 380 Rated power consumption, KV*A 12 Volume of the sterilization chamber, dm.cub. 100 Inner diameter of the sterilization chamber, mm 400 Number of sterilization modes 2 Drying no Parameters of the first (second) sterilization mode: - working steam pressure, MPa 0.2(0.11)+/-0.02 - steam temperature, degrees Celsius 132(120)+/-2 - sterilization holding time, min 20(45) Work management method semi-automatic Time to warm up the sterilizer to operating pressure, min 30 Overall dimensions, mm 1330x710x1500 Weight, kg 280 Manba: https://www.nv-lab.ru/catalog_info.php?ID=266
