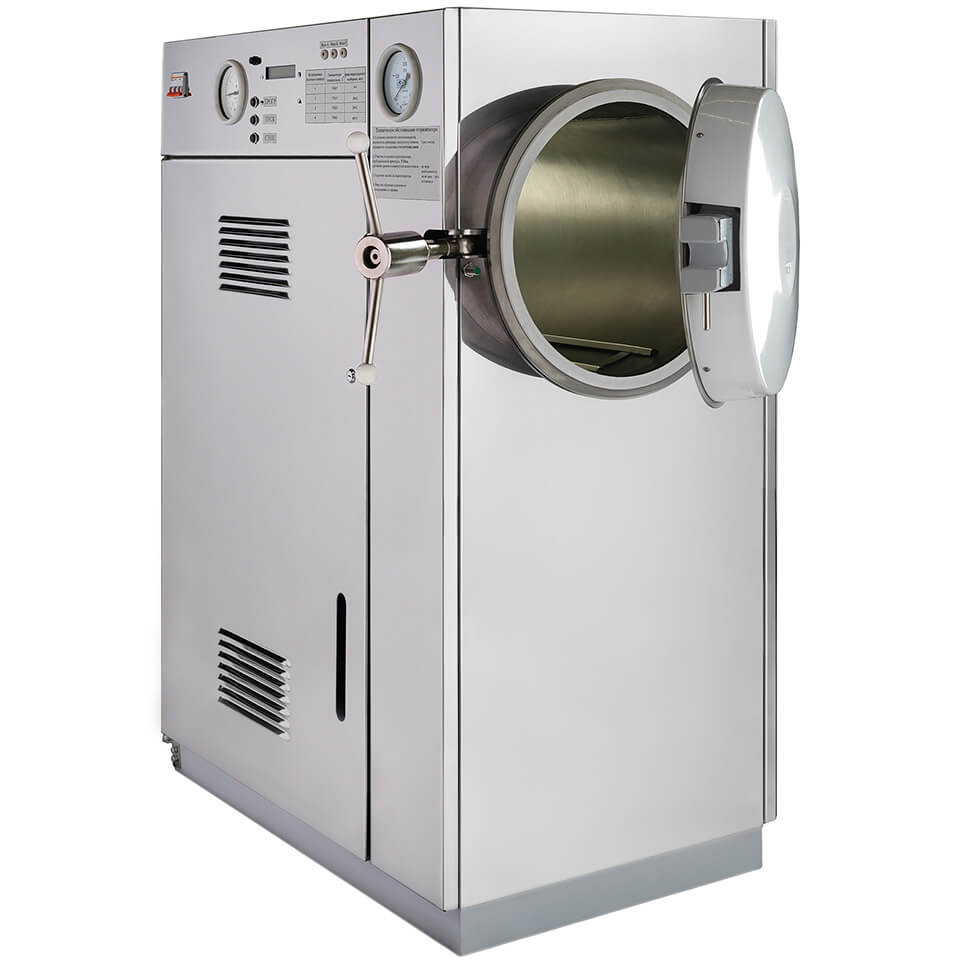

Steam sterilizer GK-100 SZMO
Steam sterilizer GK-100 SZMO Designed for sterilization with saturated water steam under excess pressure of medical products made of corrosion-resistant metals, glass, rubber, latex, plastics, textile products, dressings, as well as ligature suture materials used in medical practice. The sterilizer is intended for installation in centralized sterilization treatment and preventive institutions. Declaration of Conformity and Registration Certificate are available. Equipment: Name Quantity, pcs. 1. Horizontal steam sterilizer 1 2. Grid stand for sterilization boxes 1 Spare parts: Name Quantity, pcs. 1. cap (under the level indicator) 2 2. seal (gasket under the sterilization chamber cover) 1 3. ring (gasket under the steam generator cover) 1 4. gasket under the heating element 6 5. glass tube 12×1.5-260 1 6. electric heater heating element 3 7. fusible insert 2 Operating documentation: Name Quantity, pcs. 1. Passport. Sterilizer Operating Instructions 1 2. passport of a pressure vessel 1 3. passport of pressure and vacuum gauge 1 4. pressure gauge passport 1 5. safety valve data sheet 1 6. Operating instructions for the sterilizer control unit 1 Manba: https://www.nv-lab.ru/catalog_info.php?ID=7803
- Parameter: Value
- Sterilizer type: steam horizontal
- Lid closing mechanism: screw, one clamp
- External panel material: stainless steel
- Working steam pressure in the steam generator and sterilization chamber, MPa (kgf/cm2): 0.22 (2.2)
- Volume of sterilization chamber, l, not less: 100
- Diameter of the sterilization chamber, mm: Ø400±4
- Number of sterilization modes, no less: 5
- Parameters of the first sterilization mode:
- - working pressure, MPa (kgf/cm2);
- - temperature, °C;
- - sterilization holding time, min: 0.21±0.01 (2.1±0.1);
- 134±1;
- 5+1
- Parameters of the second sterilization mode:
- - working pressure, MPa (kgf/cm2);
- - temperature, °C;
- - sterilization holding time, min: 0.11±0.01 (1.1±0.1);
- 121±1;
- 20+2
- Parameters of the third sterilization mode:
- - working pressure, MPa (kgf/cm2);
- - temperature, °C;
- - sterilization holding time, min: 0.20±0.02 (2.0±0.2);
- 132±2;
- 20+2
- Parameters of the fourth sterilization mode:
- - working pressure, MPa (kgf/cm2);
- - temperature, °C;
- - sterilization holding time, min: 0.11±0.02 (1.1±0.2);
- 120±2;
- 45+3
- Manual (programmable) sterilization mode:
- - working pressure, MPa (kgf/cm2);
- - temperature, °C;
- - sterilization holding time, min, no more: availability
- 110…136;
- 60
- Accuracy of maintaining sterilization temperature, °C: ±2
- Vacuum drying of sterilized products: availability
- Residual humidity, %, no more than: 1
- Steam generator volume, l, no more: 25
- Control: automatic
- Water indicator column for visual monitoring of the water level in the steam generator: availability
- Pressure gauge for monitoring pressure in the steam generator: availability
- Air supply system to the chamber through a bacterial filter: availability
- Water consumption rate for 1 cycle of sterilizer operation, including the drying cycle, no more than, l: 100
- Overall dimensions, (D × W × H), mm, no more: 1200±10 × 604±10 × 1360±10
- Weight, kg, no more: 180
- Power consumption, kW, no more: 10
- Power supply (current / voltage, V / frequency, Hz): alternating, three-phase;
- 380;
- 50
- Mean time between failures, cycles, not less: 3000
- Average service life, years, not less: 10
- Sterilization boxes used: KF-18 or equivalent
