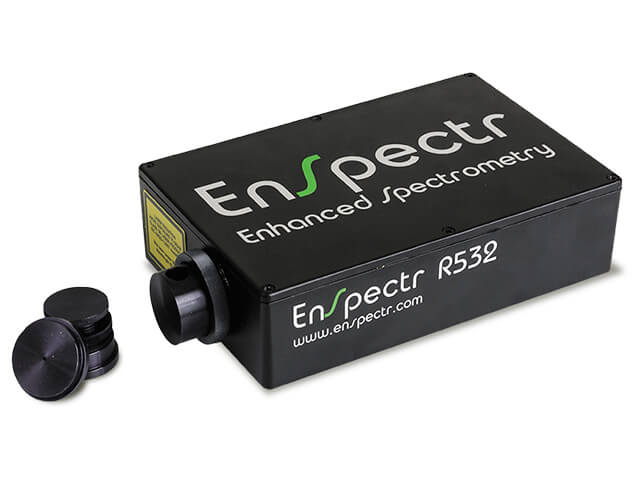

Raman spectrometer EnSpectr R532
EnSpectr R532 spectrometer (Raman) intended for the determination of chemical substances, as well as for research. Identification of a substance occurs in real time by comparing the unique vibration spectrum of molecules with the Raman spectra of standard samples stored in the database. The EnSpectr R532 spectrometer is a unique instrument that combines the convenience of a portable device with the functionality of high-tech laboratory equipment. The EnSpectr R532 spectrometer comes with a low-noise, room-temperature CCD array and a specially designed Rayleigh scattering suppression system. Features: Non-contact detection in real time; High sensitivity and low noise; Wide spectral range; Fast and reliable results; Ease of use; Portability. Applications: Pharmaceutical industry; Chemical industry; Medical diagnostics; Forensic examination; Geology and mineralogy; Environment; Food industry; Agriculture; Semiconductors; Gemology; Polymers. Manba: https://www.nv-lab.ru/catalog_info.php?ID=4476
- Parameter: Value
- Wavelength, nm: 532
- Laser power, mW: 30
- Spectral range, cm-1: 100…4000
- Spectral resolution, cm-1: 4…6
- Detector type: CCD array
- Number of pixels: 3648
- Pixel size, microns: 8×200
- Integration time, ms: 10…500,000
- Focal length, mm: 75
- Entrance slot, µm: 20 (30 - option)
- Diffraction grating, lines/mm: 1800
- USB: 1 external 2.0 port
- Power, V/Hz: 220/50
- Dimensions, mm: 222×145×55
- Weight, kg: 1.5
