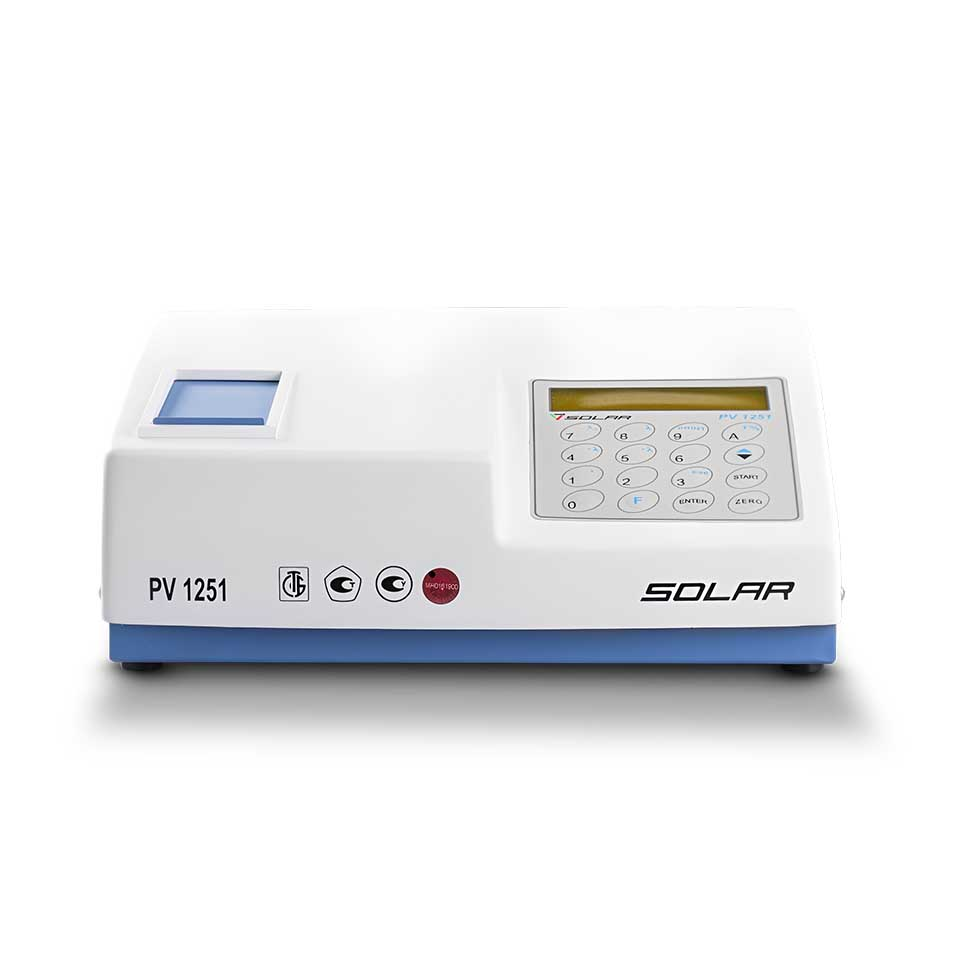

Spectrophotometer Solar PV1251C (315...1000 nm)
Spectrophotometer Solar PV1251С provides measurement of transmission absorption spectra, determination of concentration and is used in agricultural laboratories, in the field of environmental protection, medical, scientific and educational institutions. The device offers a wide range of mathematical processing functions and the ability to save measurement results when working with a computer. Convenient slider-type thermostatic cuvette compartment design. The spectrophotometer allows the use of both Euro and KFK cuvettes with an optical path length of up to 50 mm. Easy work in offline mode (without connecting a computer) thanks to the large built-in keyboard and an informative LCD screen that displays tips. Features: optical design - single beam. light source - halogen lamp; detector - silicon photodiode; body - fiberglass, painted with chemical-resistant paint; automatic calibration by wavelengths when turned on; high measurement accuracy; use of Euro and KFK cuvettes with an optical path length from 5 to 50 mm; thermostated cuvette compartment; work both autonomously and with a PC connection; RS-232 interface or USB-COM adapter; specialized software; any MVI. Software features: automatic scale setting; creating databases and working with them; creating, viewing and editing methods; spectrum calculator; mathematical operations and processing of spectra; work both with the entire spectrum and with a separately selected band; analysis and calculation of statistical characteristics; saving measurement results; working with the MatLab7 program. Scope of delivery: spectrophotometer PV 1251C; disposable polystyrene cuvettes (100 pcs.); specialized software. Manba: https://www.nv-lab.ru/catalog_info.php?ID=6371
- Parameter: Value
- Wavelength range, nm: 325…999
- Wavelength setting accuracy, nm: ±2
- Reproducibility of wavelength setting, nm: ±0.5
- Allocable spectral interval, nm: 5
- Transmittance measurement range, %T: 0.1...100
- Scattered light, no more, %T (at 340 nm): 0.05
- Optical density reading range, B: -0.301…3.000
- Optical density measurement range, B: 0.015…2.000
- Error when measuring optical density, B: - in the range 0.010...0.300 B - in the range 0.301...1.000 B - in the range 1.001...2.000 B: ±0.015;±0.020;±0.060
- Drift of readings, no more, B/h: ±0.002
- Power, V/Hz: 220/50
- Power consumption, W: 110
- Dimensions, mm: 325×295×115
- Weight, kg: 8.5
