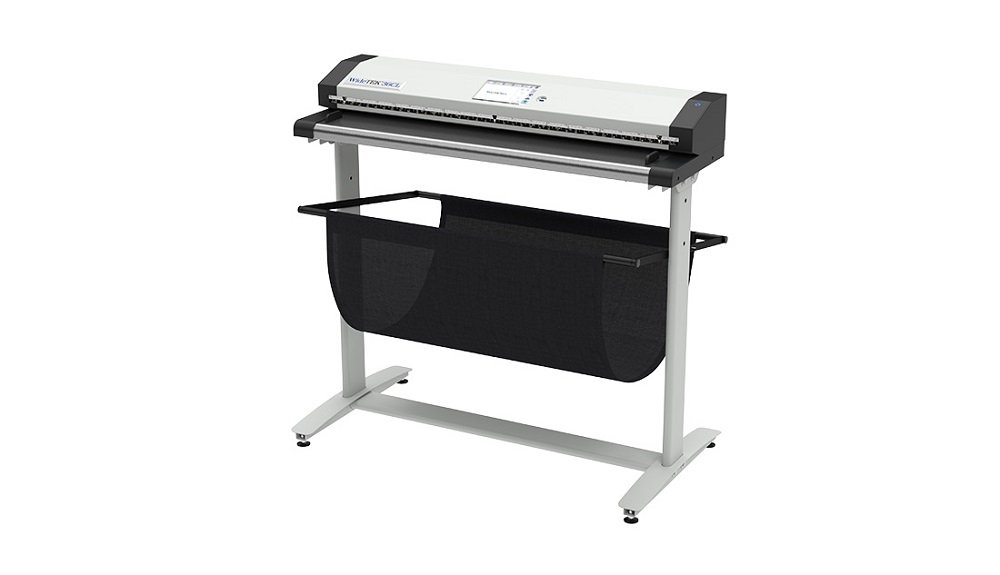

WideTEK 36CL-600 wide format scanner
The WideTEK® 36CL-600 is one of the fastest color scanners on the market, scanning at 15 meters per minute at 200 dpi in full color. Such high speed performance of the equipment is due to the use of Scan2Net® technology in WideTEK scanners and integrated into the scanner body into its own PC running on the 64-bit Linux operating system. It is truly a completely self-contained system, capable of scanning directly to FTP servers, hot folders, USB storage devices, cloud-based applications on the Internet, or copying directly to printers, without the need to connect an external PC. WideTEK® 36CL scans images with extremely high clarity and high-quality color reproduction, even superior to images obtained when working with scanners with mirror systems (CCD technology).
- Maximum scanned document size: Width – 965 mm
- Maximum scanning area width: 915 965 mm
- Automatic document size recognition: Yes; (Cropping and de-skew)
- Document thickness: Maximum – 2.5 mm
- Resolution, dpi: 1200 x 1200 dpi (optional 9600 x 9600)
- Optical resolution: 1200 x 1200 dpi
- Paper feed: Document face up; input from the front of the scanner; output from the front or back of the scanner
- Color scanning speed: 200 dpi – 15 m/min. 300 dpi – 10.2 m/min. 600 dpi – 2.5 m/min. 1200 dpi –1.2 m/min.
- Black and white scanning speed: 200 dpi – 23 m/min. 300 dpi – 15 m/min. 600 dpi – 8 m/min. 1200 dpi – 3.8 m/min.
- Color depth: 48-bit color scanning
- File formats: Multi-page PDF (PDF/A) and TIFF, JPEG, JPEG 2000, PNM, PNG, BMP, TIFF (Raw, G3, G4, LZW, JPEG), AutoCAD DWF, JBIG, DjVu, DICOM, PCX, Postscript, EPS, Source data
- Controller: 64-bit Linux operating system, Intel quad-core processor, 8 GB RAM, storage device
- Touchscreen: 7" WVGA (Wide VGA) color touchscreen
- Monitor: 22-inch monitor (optional for minimum configuration)
- USB port: 3.0
- Interface: Ethernet 10/100/1000 GB with TCP/IP protocol based on Scan2Net interface
- Power Consumption: ≤ 0.5 W (Sleep) / < 4.8 W (Standby) / < 25 W (Ready) / < 45 W (Scanning)
- Overall dimensions of the scanner: H x W x D: 170 x 1088 x 358 mm
- Scanner weight: 28 kg
