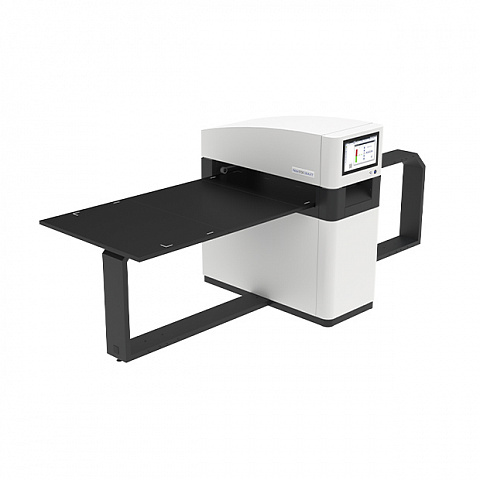

WideTEK 36ART 600 wide format scanner

The A0+ WideTEK 36 ART-600 allows you to non-contactly scan art such as oil and acrylic paintings, watercolors, charcoal and pastel drawings, mixed media collages and antique works of art, with a resolution of 600 dpi and a maximum format of 914 x 1524 mm / 36 x 60 inches. Thanks to the latest camera technology, the scanner exceeds all criteria set by the Federal Agencies Digitization Guidelines Initiative (FADGI)*** and ISO 19264-1 Level B.

• Scanning technology: CCD
• Maximum document size: 914 x 1524 mm (36" x 60")
• Maximum height: up to 100 mm
• Document thickness: up to 200 mm (for example, canvas on a stretcher max. up to 100 mm, max. thickness in a frame up to 200 mm)
• Optical resolution: 600 x 600 dpi
• Supported languages: PDF; PDF/A; JPEG; JPEG2000; TIFF; PNM; PNG; BMP; PSB; RAW Data; Adobe PostScript 3
• Interface: USB 2.0; Ethernet
• Color scanning speed: 300 dpi - 42.2 mm/s (1.66 in/s), 600 dpi - 21.1 mm/s (0.83 in/s)
• Color depth: 48-bit color, 16-bit grayscale
• Scan Result: 24-bit color, 8-bit indexed color, 8-bit grayscale, binary, extended grayscale
• File formats: Multi-page PDF (PDF/A) and TIFF, JPEG, JPEG 2000, PNM, PNG, BMP, TIFF (raw, G3, G4, LZW, JPEG)
• Quality: Exceeds FADGI***, ISO 19264-1 requirements
• Camera: 3 Tri-color CCD cameras, 67500 pixels, sealed and dustproof
• Light source: Two white LED lamps, built-in optical diffuser, no IR/UV radiation
• Computer: 64-bit Linux OS, Intel i3 quad-core processor, 8GB RAM, 320GB hard drive for larger jobs
• Touch screen/monitor: 15" color touch screen
• USB port: 1 USB 3.0 port
• Interface: 1 Gbps Fast Ethernet, TCP/IP based Scan2Net® interface
• Power Supply: 100-240 VAC, 47-63 Hz (external power supply, CEC Level VI Energy Efficiency Compliant)
• Power Consumption: <0.5W (Sleep) / 5.2W (Standby) / <50W (Scan Ready) / <110W (Scan)
• Operating Temperature: 5 to 40°C, 40 to 105°F
• Relative Humidity: 20 to 80% (non-condensing)
• Noise level: < 35 dB(A) (scanning) / < 25 dB(A) (standby)
• Compliance with standards: IEC/EN 62368-1:2013, UL/CSA 62368-1 (ed. 2), EN 55022, EN 55024; FCC 47 part 15
• Scanner dimensions (H x W x D): with feed path: 1380 x 3275 x 1280 mm (54.3 x 128.9 x 50.4 inches) without feed path: 1380 x 690 x 1280 mm (54.3 x 27.2 x 50.4 inches) Scan table: 1000 x 2100 mm (39.4 x 82.7 inches)
