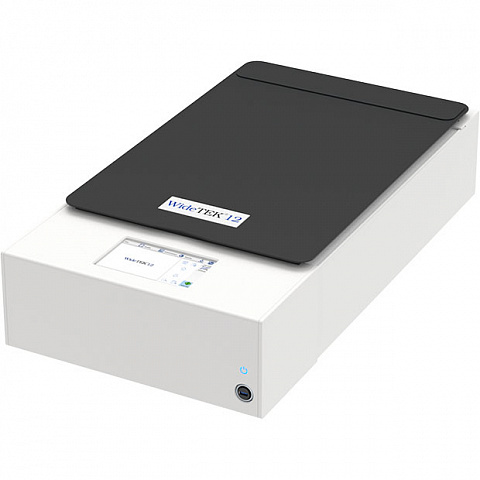

Flatbed scanner WideTEK 12-650
The WideTEK® 12-650 is designed to quickly scan A3+ originals at high resolution. Scan 12.3 x 18.5-inch documents in 2D at 300 dpi in less than 3 seconds, and 3D at 600 dpi in just 12 seconds—twice as fast as comparable models! The WideTEK®12 Flatbed Scanner produces high-resolution color, black-and-white, or grayscale images in JPEG, TIFF, PDF, and most other standard formats. Industrial design and compact design make the scanner a professional and at the same time quite affordable solution. The new, scratch-resistant, non-reflective glass without edges reliably protects originals - no more jams or folds! This scanner exceeds FADG, Metamorfoze Light, and ISO 19264‑1 (Level B) quality criteria. Illumination for X-rays, films, negatives, etc. The WideTEK® 12‑650 scanner expands your scanning capabilities with the new WT12‑BACKLIGHT, which makes it possible to scan any transparent materials: X-rays, glass negatives, 35mm microfilm punch cards, stencils, sepia and film. An additional illumination unit is installed in place of the scanner cover. The installation process is extremely simple and the backlight can be turned on or off at any time. The backlight unit is sold separately and complements the standard configuration of the WideTEK 12‑650 scanner. Do you provide scanning and printing services? The WideTEK 12 scanner will help you expand your income opportunities.
- Maximum scanned document size: up to 313 × 470 mm
- Scan resolution: 1200 × 1200 dpi
- Color depth: 48-bit color, 16-bit grayscale
- Color scanning speed: 300 dpi - less than 3s; 600 dpi - less than 6s
- Document formats according to the DIN system: DIN A5–DIN A3
- ANSI document formats: Letter, Legal
- Automatic format recognition: yes, with the ability to trim and straighten distortions
- Camera: Tri-Color CCD camera, 22,500 pixels, sealed and dustproof
- Light source: two lamps with white LEDs and built-in optical diffuser without IR and UV radiation
- Lamp life: 50,000 hours (typ.)
- Interface: Fast Ethernet 1 Gbps with Scan2Net® interface based on TCP/IP
- File formats: PDF (PDF/A) and TIFF, JPEG, JPEG 2000, PNM, PNG, BMP, TIFF (Raw, G3, G4, LZW, JPEG), AutoCAD DWF, JBIG, DjVu, DICOM, PCX, Postscript, EPS
- ICC profiles: sRGB, Adobe RGB and native profile sets
- USB port: USB 3.0
- Electrical connection: 100–240 V AC. current, 47–63 Hz
- Power consumption: <0.5 W (sleep mode); 2.5 W (standby); 28 W (pre-scan mode); 55 W (scan mode)
- Operating temperature: 5 – 40°C
- Relative humidity: 20 – 80%
- Noise level: < 42 dBA (scan mode); < 32 dBA (standby)
- Dimensions (WxHxD): 222 × 440 × 795 mm
- Weight: 28 kg
