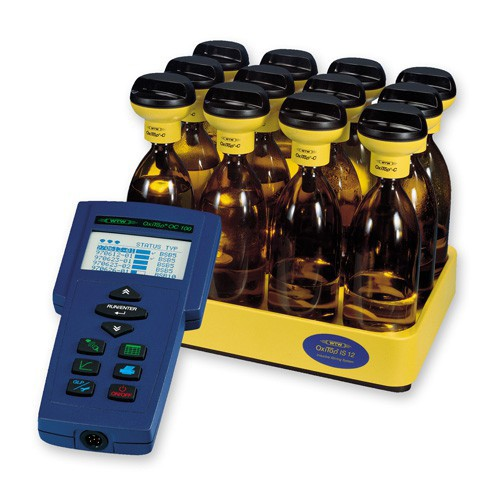

BOD analysis system oxiTop IS12 control
OxiTop Control BOD measuring system DescriptionHigh-level system for measuring BOD OxiTop Control - equipment consisting of measuring caps and heads and a regulator with an infrared interface for control. The system provides complete test monitoring on a large screen, from sequential simultaneous start-up to subsequent storage and monitoring of data from up to 100 electronic measurement heads. The OxiTop Control 12 analyzers, in addition to the OC 110 controller, are ideal for measuring soil or biogas respiration values. If the sample needs incubation, this will not affect the timely receipt of analysis results. The controller display visualizes the curve, this makes it possible to identify and correct errors or start the process again without waiting for the end of the measurement operation. Data can be transferred to a PC for evaluation using the AK-540/B cable and the Achat OC communication program. Features of the OxiTop Control 12 manometric systems: · selection of the required set: 12 simultaneous measurements; · the screen and buttons of the OxiTop measuring heads are replaced with the ability to control using an IR interface; · the ability to adjust, store and process results from 100 heads; designation of the sample with an individual code; · display of automatically calculated and graphically displayed values on the controller display; · transfer of information from the controller to computer; data logging in accordance with GLP, RS-232 interface; the ability to obtain measurement results at any time, even when incubating samples; data is sent through the glass doors of the incubator; non-contact mixing system (the same as in the standard OxiTop system); the curve displayed on the display indicates deviations and interfering influences on the controller; the heads have the AutoTemp function, this allows you to automatically delay the start of the analysis cold sample; memory includes from 180 to 360 values, data is saved at operator-specified time intervals from 0.5 hours to 99 days; built-in pressure sensor in the range from 500 to 1350 hPa. Specification Measuring principle manometric, using a pressure sensor Range corresponds 0 ... 40/80/200/400/800/2000/4000 mg/l BOD Working pressure 500...1350 hPa Temperature +5...50 С (storage −25...+65 С) Rotation speed 180-450 rpm Protection class 3 (IEC 1010) Type of protection IP 42 (according to DIN 40050) - control unit IP 54 (according to DIN 40050) - measuring heads Rated voltage AC adapter range 100-240 V, 50/60 Hz Reading accuracy ±1% of measured value ±1 hPa Resolution 1 hPa (corresponding to 0.7% BOD range) Indications LED indicator Manba: https://www.nv-lab.ru/catalog_info.php?ID=2745
