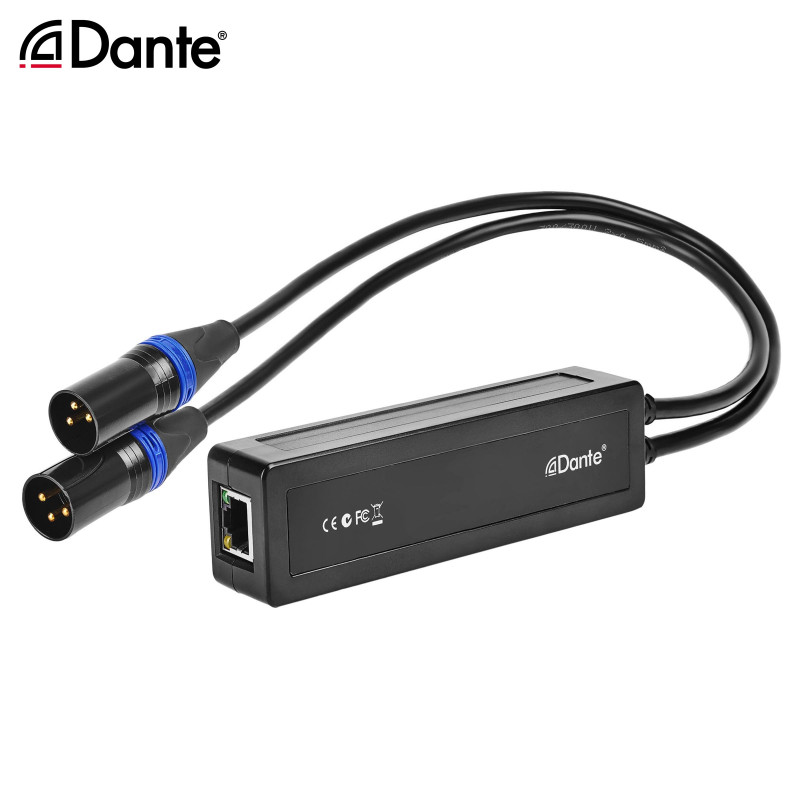

Network audio interface S-Track Ostrich DO22
The S-Track Ostrich DO22 network audio interface accepts Dante input and converts it to 2-channel analog output. The Dante protocol can seamlessly transmit hundreds of audio channels across networks with flawless digital fidelity. All connections are managed via software, making system startup and monitoring quick and easy. Since all devices use the same network, signals can be transferred between any devices without making any changes to their connections, no matter where the devices are located. Expanding a Dante system is as easy as adding a printer to your network. Simply connect an additional device to any available network connector, configure it and start using it.
Price on request
- Inputs: RJ-45 Dante (2 channels)
- Outputs: 2 x XLR-M
- Sampling rate: 48 kHz, 24 bit
- Frequency range: 20 - 20,000 Hz ±0.5 dB
- Dynamic range: > 100 dB
- Signal to noise ratio: > 100 dB
- THD+N: <0.01% at 4 dBu
- Input impedance: 100 ohms
- Noise: -90 dBu
- Latency: 1ms
- Internet connection: 100BASE-TX (PoE), 100/1000 Mpbs Ethernet
- Consumption: 2W
- Power: Class 1 802.3af PoE
- PoE: Yes
- Operating temperature: 0~50°C
- Storage temperature: 0~60°C
- Humidity: 20~90% RH (non-condensing)
- Size: 125 x 33 x 28 mm
- Weight: 0.75 kg
