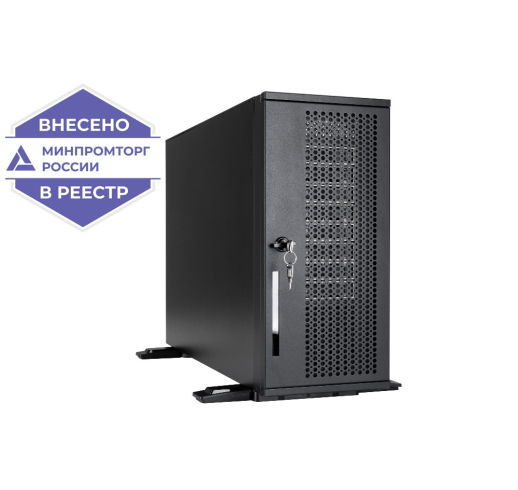

Server DEPO Storm 1430T4R
The DEPO Storm 1430T4R server is developed on the basis of the C256 chipset with support for E2300 family processors and energy-efficient DDR4 Unbuffered ECC UDIMM 3200 MHz memory. The main purpose of this entry-level model is dedicated hosting of business applications and services that work with small and medium volumes of data. The disk subsystem includes eight front bays for installing 3.5″ or 2.5″ hot-swappable SATA/SAS drives, an internal bay for two SSD drives and 2 M.2 slots (2280/22110 PCI-e 3.0 x4 M-key) for installing an SSD drive. The server hardware supports RAID 0,1,5,10 disk arrays. Extensive configuration options allow you to adapt the server for each specific task, ensuring an optimal price-functionality ratio. The server is equipped with two 1200 W power supplies with hot-swappable capabilities. A rack mounting kit is included. For servers of this series, it is possible to expand the terms of the standard warranty by purchasing DEPO Service Packages, which allow you to select the desired level and period of warranty service.
- Integrated disk subsystem controller: C256 6 x SATA3 (supports RAID 0/1/5/10) (physical connectors -2 x SATA DOM (SATA0 / SATA1), 1 x MiniSAS HD M.2 E-key slot, M2_1 (PCIe3.0 x2); supports module type 2230 WiFi/BT PCIe WiFi 2 M.2 M-key slots, (M2_ 2 and M2_ 3) in PCIe4.0 x4 or SATA 6Gb/s mode, support form factors type 2230/2242/2260/2280 (Either M.2 SATA connector (M2_2) or SATA0 connector can work simultaneously)
- Ethernet: 2 RJ45 1GbE LAN 10/100/1000 Mb/s (i350) ports (optionally, it is possible to output 2 additional RJ-45 ports into the PCI-E expansion slot compartment) 1 RJ45 IPMI LAN port
- Front I/O panel: 2x USB 3.0 On/Off button Hard drive and network activity indicator
- Rear I/O: Dedicated IPMI 1GbE RJ-45 (Realtek RTL8211E), BMC ASPEED AST2500: IPMI 2.0 (with Ikvm and vMedia support) VGA port 1 x D-Sub Serial port 1 x COM 4 x USB 3.2 Gen1 (5Gbps) 2 x LAN 1GbE RJ-45 (i350) DisplayPort 1.4 UID Button/LED Power switch Optional: 2 LAN ports 1GbE RJ-45 (i350)
- Internal connectors: Expansion slots: PCIe 4.0 x8 (x16 connector) PCIe 4.0 x8 (x8 connector) PCIe 4.0 x4 (x8 connector) 1 x USB 3.2 Gen1 (Header) 1 x USB 3.2 Gen1 Vertical USB 2.0 Type-A connector
- Country of origin: Russia
- Packing: Box
