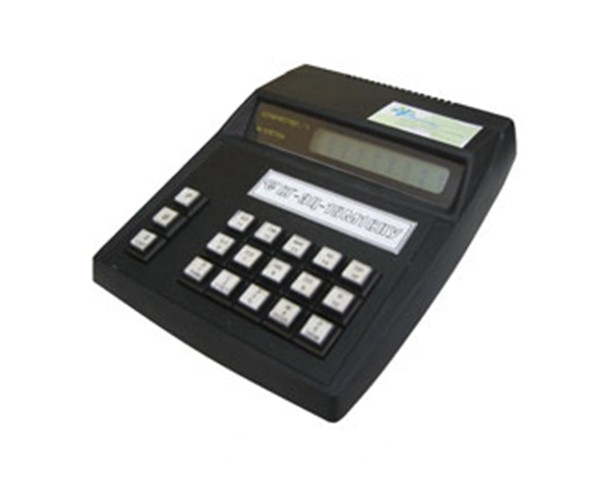

Hematology counter SGETS-15M 1 SPU
Out of production! The closest analogue is the Leukocyte formula counter S-5 or the Leukocyte formula counter SLF-ETs-01-09 The counter is designed to count the number of fifteen formed elements during microscopic examination of smears of peripheral blood and bone marrow and calculation of the leukocyte formula, i.e. determining the percentage for each of the counted elements from the total number of counted elements. The work is based on counting and memorizing counting results, i.e. the number of presses of the corresponding keys on fifteen channels corresponding to the formed elements of blood. Calculation of the number of formed blood elements as a percentage for each channel of the total number of elements is carried out by a special command or automatically at the end of the count. Features: counting the leukocyte formula of blood for 15 formed cells with simultaneous counting of cells not included in the total; displaying analysis data in the form of the number of cells or their percentage expression at any time of counting; simultaneous display of 8 cell values; setting the total counting amount from 1 to 999; highly reliable and ergonomic reed keypad; sound signal when pressing keys and at the end of counting; high reliability and accuracy of calculations; the ability to change the labeling of keys in a medical facility; the ability for the user to set a mode that ensures that information is saved when the mains voltage is turned off; ability to connect to a computer via a standard RS 232 interface. Structurally, the meter consists of a plastic case consisting of a base and a cover, inside of which a keyboard unit and a control unit are mounted on the base, on which a character-synthesizing liquid crystal display is installed. Manba: https://www.nv-lab.ru/catalog_info.php?ID=290
- Qty
- counting channels: 15
- Maximum
- counting value on any channel: up to 999
- Voltage
- power supply: 220 V; 50 Hz
- Consumed
- power, VA: 2
- Dimensional
- dimensions, mm: 250×186×72
- Weight, kg: 1
