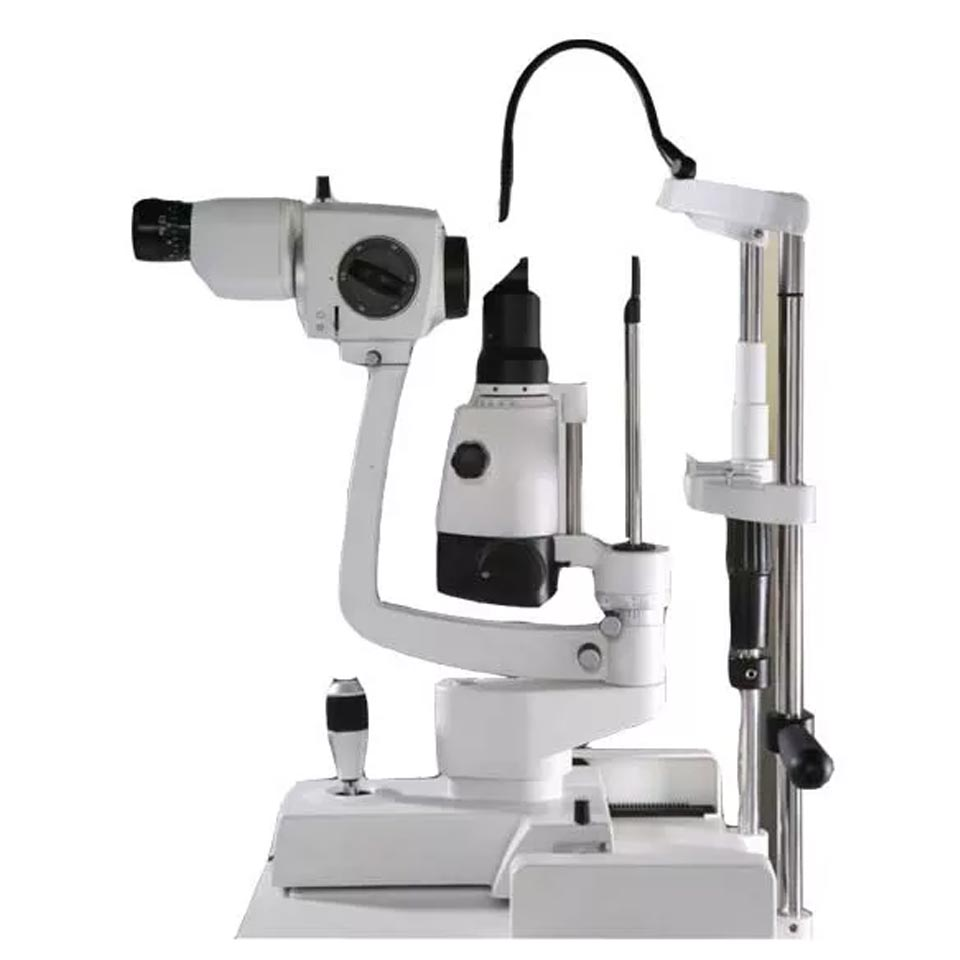

Slit lamp Labomed eVO 350
Slit lamp Labomed eVO 350 The Labomed eVO 350 slit lamp is a modern ophthalmological device with high optical characteristics and an ergonomic design. The equipment is designed to conduct a detailed biomicroscopic examination of the anterior segment of the eye and make accurate clinical diagnoses. The model is equipped with a highly efficient lighting system and a precise apochromatic optical system that provides high image resolution, contrast and natural color rendition. The smooth movement of the adjustment elements allows the examination to be carried out as comfortably and accurately as possible. The stable base design ensures reliable operation and allows the installation of additional accessories without loss of stability. Compact dimensions and ergonomic design allow the slit lamp to be used in offices of any size, saving work space. Optional Accessories Beam splitter for user convenience and quick equipment setup. Diffuser to improve illumination of selected areas of tissue. Motorized table for convenient installation of the slit lamp. Advantages of the Labomed eVO 350 lamp The apochromatic optical system provides high image clarity and accurate color reproduction. New generation MaxLite™ optics with a special coating reduce reflections and increase contrast. High resistance of optical elements to scratches. Built-in Wrattan filter for fluorescent tests. Compact lighting system with uniform light distribution. Possibility of using halogen or LED lighting lamps. Smooth movement of adjustment elements for precise adjustment of the examination. Five-stage magnification system for detailed examination of eye structures. Binocular convergent tube for comfortable work of a specialist. Adjustable interpupillary distance for a personalized fit. Focusable eyepieces provide comfort during long periods of work. Continuously adjustable slit width for various diagnostic tasks. Slit rotation angle up to 180° to expand diagnostic capabilities. A set of built-in filters for various research methods. Stable base design with the ability to install additional accessories. Compact, ergonomic design to fit into any size office. Longitudinal, lateral and vertical movement for precise position adjustment. High image quality with high resolution and contrast. Suitable for installation on a motorized table (optional). Possibility of connecting a beam splitter and diffuser (optional). Application of the Labomed eVO 350 lamp The Labomed eVO 350 slit lamp is designed for ophthalmic diagnostic examinations. The equipment is used: in ophthalmology offices; in clinics and hospitals; in private medical centers; in ophthalmological clinics; in diagnostic centers; in research medical institutions; in educational medical institutions; in optometry offices and selection of contact vision correction. Manba: https://www.nv-lab.ru/catalog_info.php?ID=10560
- Characteristic: Meaning
- Slit lamp type: Stationary
- Microscope type: Galileo
- Magnification: 5-step: 6.5x, 10x, 16x, 25x, 40x
- Tube: Binocular convergent
- Interpupillary distance adjustment: 48.5–77 mm
- Diopter adjustment: ±5 diopter
- Eyepieces: 12.5X focusable
- Slit length: 0–13.5mm
- Slit apertures: 0.6/ 5.8/ 9/ 13.5mm
- Smooth gap adjustment: 1.5–12mm
- Slot rotation angle: 0–180°
- Filters: Red-free, cobalt blue, heat absorption, yellow
- Longitudinal movement: 100mm
- Lateral travel: 107mm
- Vertical travel: 30mm
- Chin rest height: 80mm
- Lighting: Halogen 6V 20 W
