Digital Signage

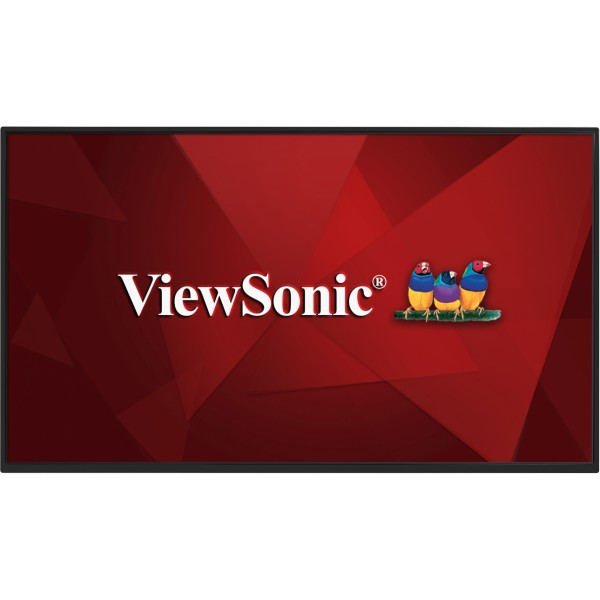

Professional panel ViewSonic CDM5500R
Professional panel ViewSonic CDM5500R - Professional panel with a resolution of 1920x1080p, a contrast ratio of 1100:1, a brightness of 450 nits and a 55 diagonal.
Price on request
- Panel Size: 55"
- Type/technology: TFT LCD module (IPS, ELED backlight)
- Display area: 1209.6(H) x 680.4(V)
- Aspect Ratio: 16:9
- Resolution: 1920x1080p
- Colors: 16.7 million colors
- Brightness: 450 nits (typical)
- Contrast ratio: 1100:1
- Response time: 12ms
- Viewing angles: 178 horizontal, 178 vertical
- Surface Treatment: Hard Coating (3H), Anti-Glare Front Polarizer Coating (Haze 1% (Typ.)
- Backlight service life: at least 50,000 hours
- Hardness: Hard Coated (3H), Anti-Glare Front Polarizer, 1% Haze (Typ.)
- Orientation: Landscape and Portrait included
- HDMI: x 2
- DisplayPort: x 1
- DVI: x 1
- Sound: x 1 (3.5mm jack)
- RS232: x 1
- IR Pass: x 1
- RJ45: x 1
- Type A: x 2 (media playback x 1.5V/2A x 1)
- Type B: x 1 (Up Stream)
- Micro USB: x 1 (USB OTG support)
- Speakers: 10 W (L) + 10 W (R)
- DisplayPort: 480i, 480p, 720p, 1080i, 1080p
- HDMI: 480i, 480p, 720p, 1080i, 1080p
- DVI: 480i, 480p, 720p, 1080i, 1080p
- Embedded Linux OS: Yes (4.4.4)
- USB support format: JPG, JPEG, PNG, GIF, BMP, DAT, MPG, VOB, TS, AVI, MKV, MP4, MOV, 3GP, FLV, WEBM, ASF, MP1, MP2, MP3, WMA, AAC, M4A
- Voltage: 100–240 VAC VDC +/- 10%, wide range, 50-60 Hz +/- 3 Hz
- Power consumption: 75 W
- Wall mount (VESA): 400x400mm
- Temperature (?C): 0 to 40°C (horizontal installation), 0 to 35°C (vertical installation)
- Dimensions (W*H*D): 1233.4 mm * 710.3 mm * 45.5 mm
- Weight: 18 kg
- Contents: commercial monitor CDM5500R remote control with batteries CD with operation manual and startup wizard quick start guide power cables RS232/2.4mm cable - 2.4 cable
