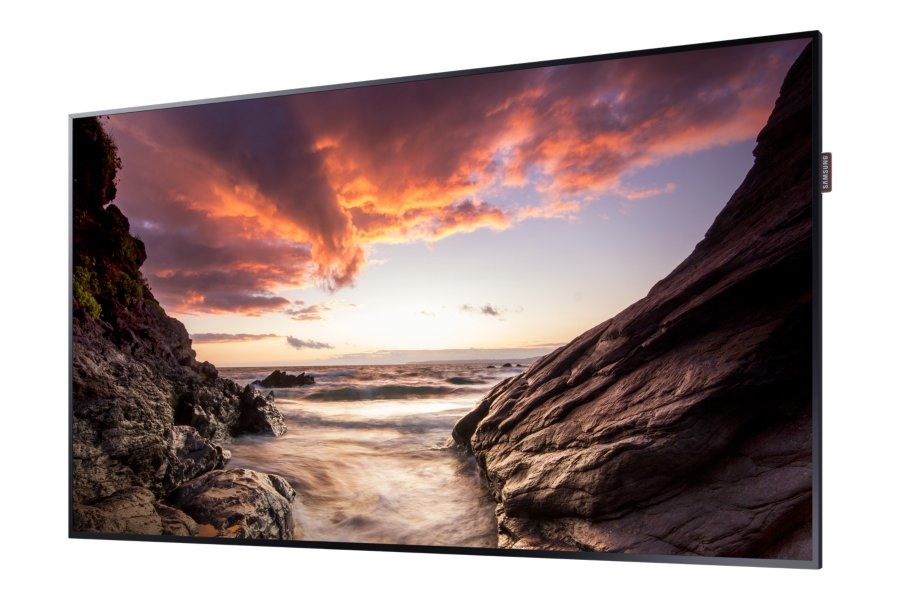

Professional panel Samsung PH55F
Samsung PH55F is the thinnest display on the market, its depth is only 29.9 mm, with a thin frame (bottom -8.9 mm, top and sides - 6.9 mm). This allows you to place the display in rooms with limited space or complex configurations. Magicinfo S4 allows you to play image files and video files from the built-in memory or external USB device on demand or according to a previously set schedule. Connecting to the MagicInfo server provides the ability to remotely control the display, schedule content display, and monitor network data. Wide possibilities for connecting various devices are provided by the presence of various interfaces: 2xHDMI, DVI, CVBS, RS232S, RJ45. You can control the display settings using buttons on the panel itself, the remote control, or via a local network or via the Internet, for which the panels have an RS-232C port.
- Diagonal: 55
- Format: 16:9
- Resolution: Full HD (1920 x 1080)
- Brightness (cand./m2): 700
- Contrast: 5000:1
- Response time (ms): 8
- Viewing Angle (Horizontal/Vertical): 178° / 178°
- Thin frame: +
- Left Frame Thickness (mm): 6.9
- Right frame thickness (mm): 6.9
- Top Frame Thickness (mm): 6.9
- Bottom Frame Thickness (mm): 8.9
- Side seam (mm): 13.8
- Top seam (mm): 15.8
- Technologies, functions, capabilities: Thin display 29.9 mm; anti-glare surface; built-in WiFi, speakers, Magisinfo S4; open platform TIZEN; dust protection IP5x; centered IR; portrait and landscape orientation; PIP/PBP; RS-232C/RJ45 port; Magic Clone function
- Possibility of building a video wall: +
- Maximum video wall size: 15x15
- Sound output power: Built-in speakers 2 x10W
- Inputs: RGB: DVI-I(D-Sub Common), Display Port 1.2 (2); Image: HDMI(2); Sound: Mini-jack (stereo); USB 2.0 x2; RS-232C, RJ45
- Outputs: RGB: DP1.2(Loop-out); Sound Mini jack (stereo)
- Power Consumption (W): 154 (Max) / 123 (Standard) / 525.14 (BTU) / Less than 0.5 W standby
- Panel dimensions (W x H x D, mm): 1228.4 x 701.2 x 29.9 mm
- VESA Mount: 400 x 400 mm
- Warranty: 36 months
