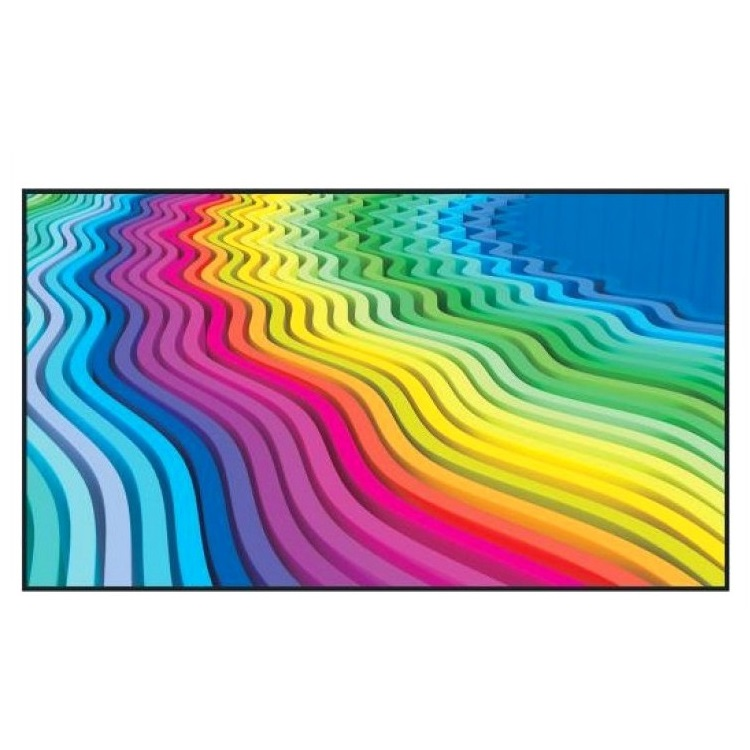

Professional panel Panasonic TH-86SQ1W
Panasonic TH-86SQ1W is a professional LED display with a wide range of applications - from home to commercial use. Matrix – IPS and supported resolution – Ultra HD with a brightness of 500 cd.m. guarantees high-quality and highly detailed display of photos and other images, as well as videos. The panel supports HDR (High Dynamic Range) technology (PQ and HLG), resulting in stunning reproduction with colors ranging from deep blacks to incredibly light colors. In addition, there is an emulation mode in accordance with the BT.2020 standard. This ensures the display supports a wide range of color gamuts in accordance with ITU-R BT.2020 recommendations. In the model, during playback, you can adjust the color temperature, shades and brightness of each individual image by primary (red, green and blue) and secondary (cyan, magenta and yellow) colors. This allows you to make intermediate shades of colors as accurate and realistic as the main ones. The narrow frame makes the 4K picture even more impressive and high-quality. The viewer is immersed in the mesmerizing image without being distracted by the display frame. In addition to high impact strength, the panel is capable of continuous operation 24/7. It can be easily installed in crowded places: train stations, airports and shopping centers. It is also good to use when designing observation posts. The universal use of the display provides a range of interfaces. DIGITAL LINK is based on HDBaseT™ technology and supports transmission of video, audio and control commands over a single CAT 5e STP cable and up to 150 meters for Full HD video and up to 50 meters for 4K video*. An optional DIGITAL LINK switch or digital interface box simplifies installation in large spaces. This reduces costs and increases reliability.
- Screen diagonal, inches: 86"
- Resolution: 3840x2160
- Brightness, cd/m²: 500 cd/m²
- Contrast: 1200:1
- Matrix type: IPS/E-LED
- Response time: 8ms
- HDMI Input: 2 x HDMI Type A (HDCP 2.2 support)
- DVI-D Input/Audio Input: 1 x 24-pin DVI-D Input/2 stereo mini-jack inputs (M3) (shared with PC input)
- PC Input/Audio Input: 1 x 15-pin Mini D-Sub/2 stereo mini-jack (M3) inputs (shared with DVI-D input)
- DisplayPort (input): 1 x DisplayPort (HDCP2.2)
- DisplayPort (output): 1 x DisplayPort (HDCP1.4)
- USB Port: 2 USB Type A, DC 5V/2A, 5V/1A (USB 3.0 support)
- Serial In/Out: 1 x 9-pin D-sub port supporting RS-232C
- LAN Port: 1 x RJ45 port, 10 BASE-T / 100 BASE-TX, PJLink™ support
- DIGITAL LINK Port: 1 x RJ45 port, 100 BASE-TX, supports Long Reach mode and PJLink™
- Infrared input/output: Stereo mini jack (M3) (1 input, 1 output)
- Audio Output: 1 Stereo mini jack (M3) 0.5 V (average), adjustable (- ∞ - 0 dB) (1 kHz 0 dB (input), 10 kΩ load)
- SLOT: Intel® SDM Suitable size: SDM-S / SDM-L; power supply: 3.3 V / 1.1 A; 12 V / 5.5 A
- VESA mount: 600x400
- Speaker power: 20
- Frame thickness (top), mm: 15.2
- Frame thickness (bottom), mm: 15.2
- Frame thickness (left/right), mm: 15.2
- Orientation: landscape/portrait
- Features: Multi Monitoring & Control, Content Management, Video Wall Manager
- Working hours: 24/7
- Color: Black
- Energy consumption, W: 400 W
- Dimensions (W x H x D): 1928 x 1099 x 86 mm (including handles)
- Weight: 66 kg
