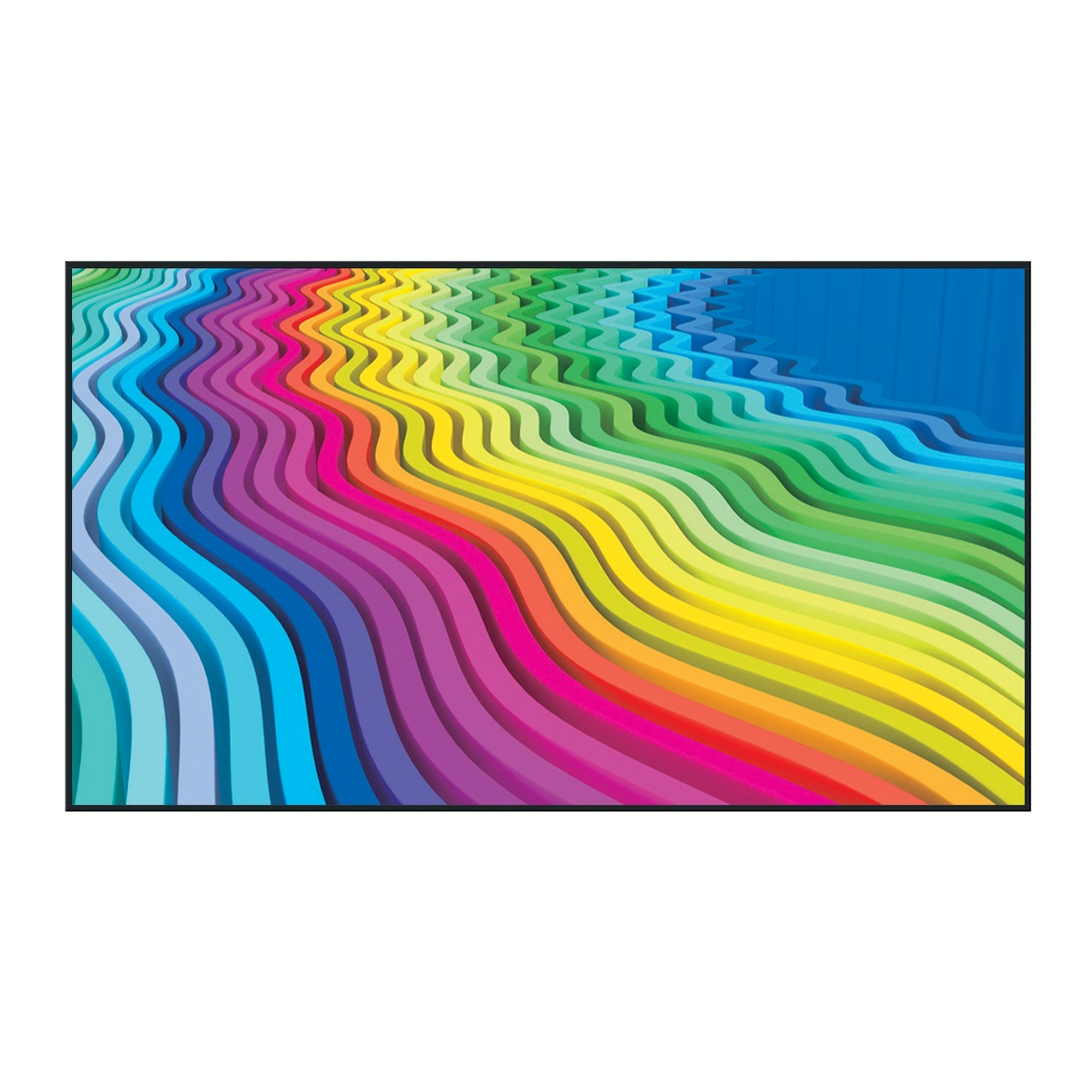

Professional panel Panasonic TH-65EQ1W
Panasonic TH-65EQ1W is a professional LED display with a wide range of applications - from home to commercial use. Matrix – VA and supported resolution – Ultra HD with a brightness of 350 cd.m. guarantees high-quality and highly detailed display of photos and other images, as well as videos. The narrow frame of the screen made it possible to make the most efficient use of the useful display area. The model is an excellent solution for both home and commercial use. For these purposes, the manufacturer has provided a wide range of connectors of various formats for connecting equipment - USB, LAN, HDMI, DVI and VGA. Free software for monitoring and control over a local network - Multi Monitoring & Control. To transmit sound, the manufacturer equipped the panel with two speakers with a power of 10 + 10 W. Control is carried out using the IR remote control included in the package. When you connect a USB storage device with data, automatic playback starts. Since the media player supports 4K, it can be used as part of a Digital Signage system without a set-top box or PC. Content plays smoothly without adding black bars at the top and bottom. In addition, it can be switched and work with multiple displays over a local network. Using the remote control, you can edit the playlist and adjust the order and playback time of content recorded on the USB storage device. The model supports work with Multi Monitoring & Control software. This allows a range of additional functions, such as automatic search of displays and registered devices in the system structure. It can be used to manage and monitor the status of displays and peripherals connected to the internal network. Also, with detection monitoring (at an additional cost), you can detect errors and receive alerts about them. This will optimize the maintenance process. Content Management software for PC version 3.2 allows you to easily create playlists with the ability to play various types of media files: both still images and video files. You can set up a schedule by pre-assigning days and start/stop times for playlist playback. Playlists and schedule settings recorded in Content Management software can be copied to displays using USB drives or over a network. Supports synchronous playback on multiple displays. The display timer function can be used to switch between connected input sources at the desired time. This allows you to easily change the content played depending on the application or stage of the event. If the transmission of the main multimedia signal fails, the system immediately switches to the backup input. When the main signal resumes, the system switches to the main input. Therefore, the EQ1 series displays are ideal for demanding work in situation centers and video surveillance points. The panel can be controlled over a local network or using RS-232C commands. Displays can also be configured to work within an existing control system, allowing simultaneous device control. Additionally, the displays support AMX or Crestron Connected™ control over the network.
- Screen diagonal, inches: 65"
- Resolution: 3840x2160
- Brightness, cd/m²: 350 cd/m²
- Contrast: 4000:1
- Matrix type: VA/Direct-LED
- Response time: 8ms
- HDMI input: 2 x HDMI type A (HDCP2.2 support)
- Video Input/A/V Input: 1 x 4-pin mini-jack input (M3) (Audio: 1 x stereo mini-jack input (M3) (shared with DVI-D/PC input))
- DVI-D In/Audio In: 1 x 24-pin DVI-D (DVI 1.0 compatible, HDCP1.1 support) / 1 x Stereo mini-jack (M3) (shared with video/PC input)
- PC Input/Audio Input: 1 x 15-pin Mini D-Sub (Supports DDC2B) / 1 x Stereo Mini Jack Input (M3) (shared with Video Input/DVI-D Input)
- Serial Port: 1 x 9-pin D-sub (input) RS-232C compatible
- IR In/Out: Stereo mini jack (M3) (1 in, 1 out)
- Audio Output: 1 x Stereo mini-jack output (M3), adjustable (-∞ to 0 dB) (at 1 kHz input, 0 dB signal level and 10 kΩ load)
- LAN Port: 1 x RJ45 port, 10 BASE-T/100BASE-TX, PJLink™ support
- USB Port: 1 x USB Type A Port, Power: AC 5V/2A (USB 3.0 not supported)
- VESA mount: 400x400
- Speaker power: 20
- Frame thickness (top), mm: 12.9
- Frame thickness (bottom), mm: 14.7
- Frame thickness (left/right), mm: 12.9
- Orientation: landscape/portrait
- Features: USB media player, work in the Digital Signage system, Multi Monitoring & Control software
- Working hours: 18/7
- Video wall function: yes
- Built-in speakers: yes
- Color: Black
- Energy consumption, W: 185 W
- Dimensions (W x H x D): 1459 x 835 x 82 mm
- Weight: 27 kg
